Model |
YD-S1600 |
Printing width |
MAX 885mm |
Printhead type |
HP wide industrial printheads |
Printing resolution |
1200*300dpi,1200*600dpi,1200*1200dpi |
Printing speed |
6-30m/minute |
Printing mode |
single pass printing |
Ink colors |
CMYK |
Ink type |
water-based environmentally friendly ink pigment |
Head Quantity |
1-4pcs |
Printing height |
0-140mm |
MAX bed size |
1600mm, bed size and printing size can be customized |
Material feeding mode |
Bi-direction in and out conveyor belt feeding |
Ink system |
Ink tanks*4colors |
Data interface |
Rj45(Gigabit Ethernet port) |
Z axis adjustment |
Double leadscrews,automatic&manual adjustment |
X/Y positioning mode |
software |
Power |
220V/AC(10%)single phase,50HZ 1KW(MAX) |
Machine weight |
1300kg |
Machine size |
4130mm[L]*1755mm[W]*1860mm[H] |
Environment temperature |
0℃-30℃ |
Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > 1600mm Wide Single Pass Printer for Paper Bags Corrugated Board Cardboard
1600mm Wide Single Pass Printer for Paper Bags Corrugated Board Cardboard
US$ 20000 - 30000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yotta
Place of Origin:
China
Model Number:
YD-S1600
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Single Pass UV PrinterUS$ 17000 - 27000MOQ: 1 Set -
High Speed Single Pass Printer for Corrugated Carton Box Kraft Bag 297mmUS$ 10000 - 20000MOQ: 1 Set
-
High Speed Large Format Digital Carton Printer 2500mmUS$ 30000 - 40000MOQ: 1 Set
-
High Speed Single Pass Printer for Carton Box Kraft Paper Bag 297mm Print WidthUS$ 10000 - 20000MOQ: 1 Set
-
Pizza Box Envelop Paper Cup Fans Single Pass Printer With HP A3 PrintheadUS$ 13000 - 16000MOQ: 1 Set
Brand Name
Yotta
Place of Origin
China
Model Number
YD-S1600
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
1300 KG
Voltage
220V
Usage
Card Printer, Paper Printer
Condition
New
Dimensions(L*W*H)
4130mm[L]*1755mm[W]*1860mm[H]
Gross Power
8.5KW
Color & Page
Multicolor
Plate Type
Flatbed Printer
1600mm wide single pass printer for paper bags corrugated board cardboard
Main features
1.Using HP wide industrial printheads,single printhead can print width up to 297mm,
the width can reach up to 885mm.
2. The maximum media width can reah up to 1600mm,which is more widely used and suitable for more media.
3.Belt-guided continuous operation high-speed printing, 1-4 colors adjustable,
up to 360-1800 meters per minute.
4.Ultra wide design, suitable for the uninterupted production of corrugated boxes,
cartons, handbags, paper bags,packaging boxes etc.
5.The sizes can be customized according to the demands of different manufacturers
to meet the large and small batch production,
eliminating the complex platemaking process.
6.Using fast-drying water-based environmentally friendly ink,
it dries immediately after printing, and the pattern is waterproof and anti-fouling after printing.
Specifications:

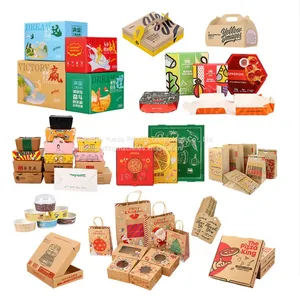

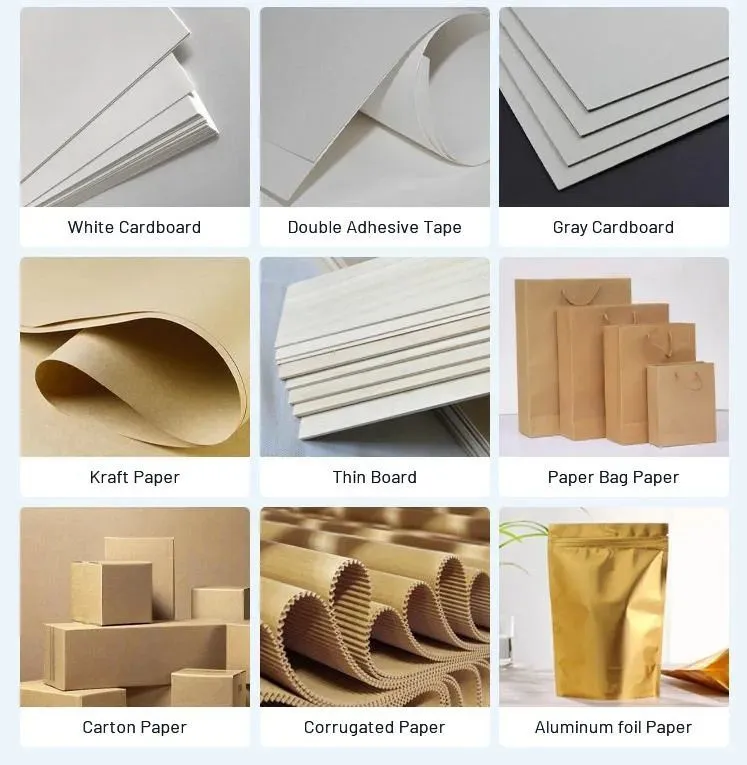

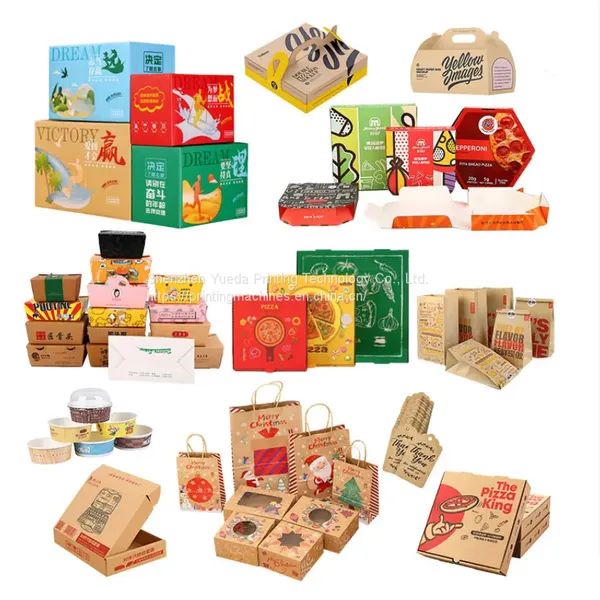

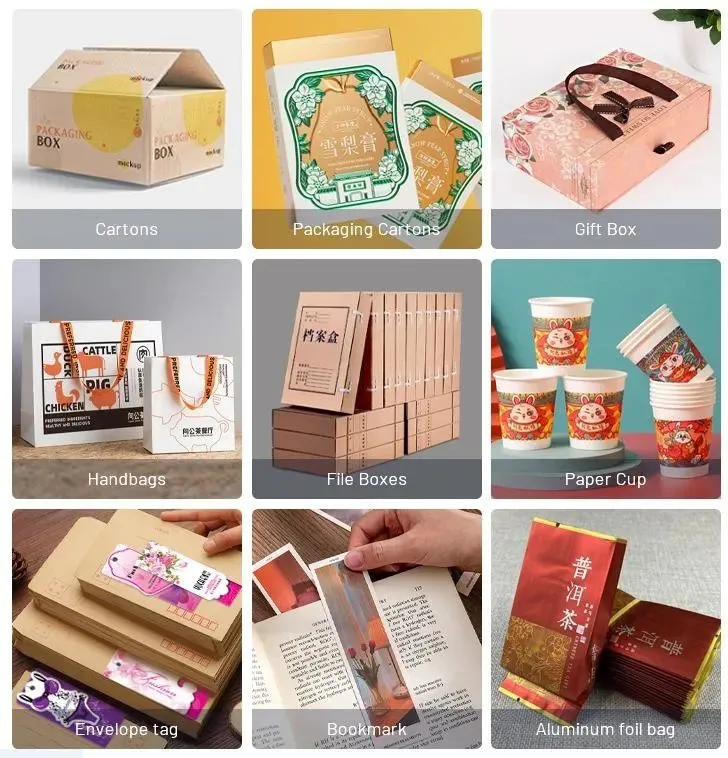

What materials could be printed ?
Corrugated cartons,paper boxes,paper bags, pizza boxes, wooden boards, etc.

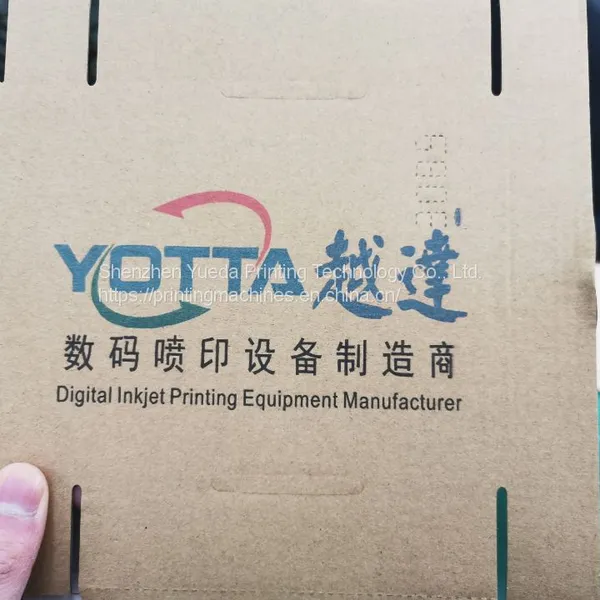

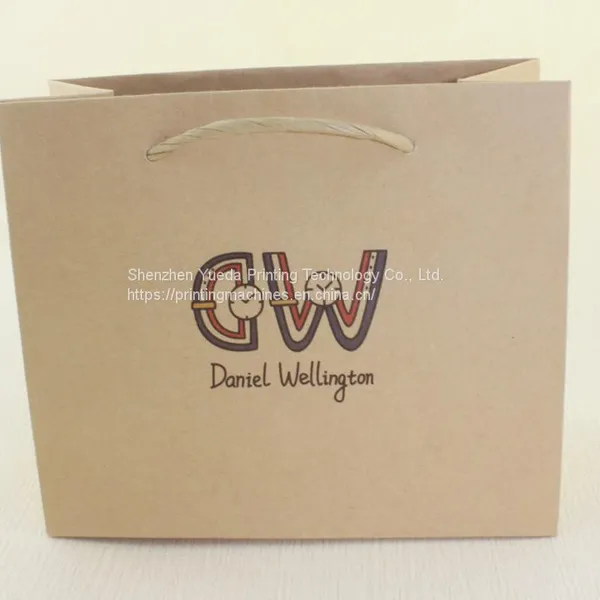

Samples Show:
Certificates
Company Information
Yotta is a new hi-tech Enterprise that combines Design, R&D, Production, Sales and Technical Service together.
We have successfully developed UV Flatbed printers, UV Roll to Roll printers and UV Hybrid printer with Ricoh and Kyocera print heads.
With company's development and growth, we also become one of top UV printer manufacturer in China, with over 11 years of rich experience.
We are committed to providing customers with world-class printing equipment as well as professional UV printing solutions. Because we are YOTTA, we will never let you down.
