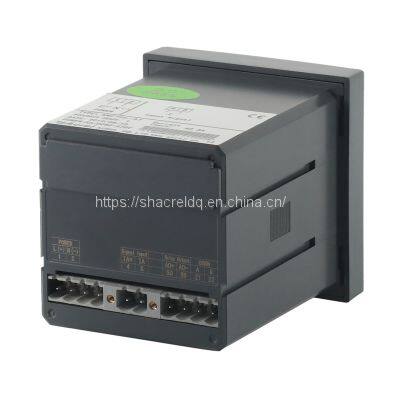

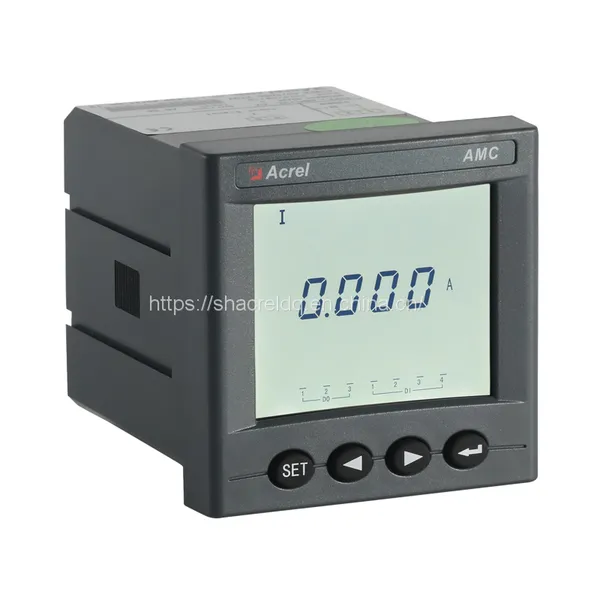

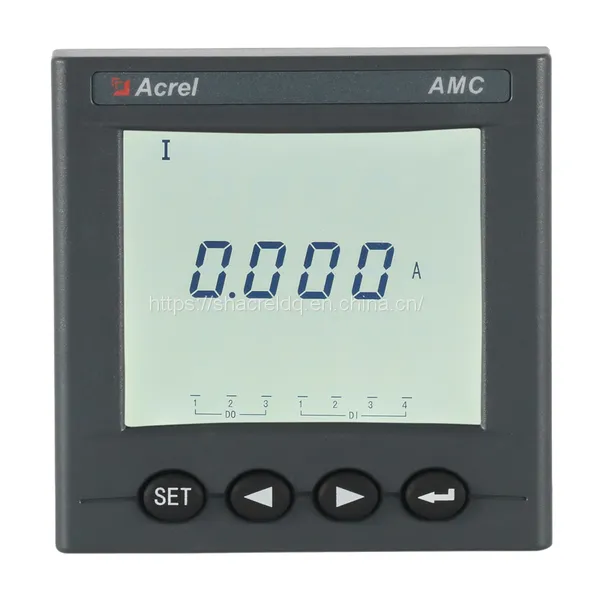

DC Digital Voltmeter AMC72L-DV/C CE Certificates RS485 Port with Modbus-RTU 1-circuit Electrical Voltage Meter For Selling
US$ 42 - 50
/ Piece
1 Piece(Min. Order)
- T/T L/C Credit Card PayPal
You May Like
-
AMC72L-DV/C Programmable Power Meter 0.5 Accuracy Low Voltage dc Voltmeter Panel Mount Electric Monitor RS485 Single Phase
-
DC Digital Voltmeter AMC72L-DV/C CE Certificates RS485 Port With Modbus-RTU 1-circuit Electrical Voltage Meter For Selling
-
Acrel AKH-0.66/P P-50II Current transformer for low voltage protection with different levels of accuracy
-
AKH-0.66/P P-60II Protective current transformer Widely used in low voltage distribution protection system
-
Acrel Protective current transformer AKH-0.66/P P-60III Widely used in low voltage distribution protection sys
-
Acrel Protective current sensor AKH-0.66/P P-80II Widely used in low voltage distribution protection sys
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | AMC72L-DV/C | Operating Temperature | -10℃~+55℃ | |
| Dimensions | 75*75mm | Measuring Voltage Range | AC/DC 85-265V | |
| Measuring Current Range | 0~10V DC (via Transducer); 300V or 1000V DC (direct connect) | Accuracy Class | Class0.5 |
Product Description
Solution Structure
Products Description
AMC72L-DV/C Single-phase AC Digital Ammeter
AMC series programmable intelligent meters, adopting AC sampling technology, can directly or indirectly measure electric voltage and current of single phase or three phase grid. It can be used for local display, and connecting industrial control device to form measuring control system. This series of meters have RS-485 port, adopt Modbus-RTU protocol. Analog output, alarm output, switching input/ output can be selected. Based on different request, by pressing the keys, parameters of ratio, alarm, communication etc. can be modified.
● Measurement: 1-circuit DC Voltage
● Accuracy: 0.5%
● Rated Current: 0~10V DC (via Transducer); 300V or 1000V DC (direct connect)
● Power Supply: 85~265V AC/DC
● Communication: RS485 (MODBUS-RTU)
● Alarm Output: Low&High Current Alarm
● Analog Output: 4~20mA DC
● DI/DO Function: 2-channel DI&2-channel DO
● Standard&Certificate: CE Certificates
Function & Parameter
Dimension & Installation
AC Current Signal (5A or 1A AC) Input via -/5A AC or -/1A AC CTs
