Low Capactiance 4-Line TVS Array EDU5V0H4

TPEDU5V0H4

Low Capactiance 4-Line TVS Array

feature:

u Ultra low capacitance: 0.3pF typical (I/O to I/O)

u Ultra low leakage: nA level

u Low operating voltage: 5V

u Low clamping voltage

u Up to 4 data lines and one power line protects

u Complies with following standards:

– IEC 61000-4-2 (ESD) immunity test

Air discharge: ±25kV

Contact discharge: ±20kV

– IEC61000-4-4 (EFT) 40A (5/50ns)

– IEC61000-4-5 (Lightning) : A(8/20μs)

Mechanical Characteristics

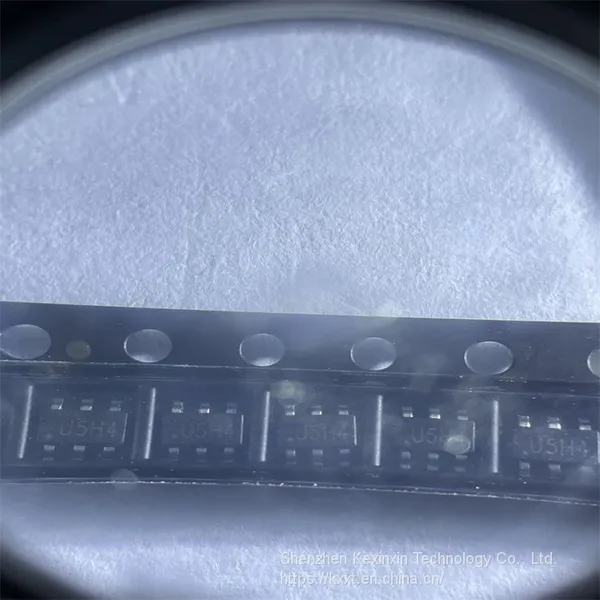

    Package: SOT23-6

u Lead Finish: Matte Tin

u Case Material: “Green” Molding Compound.

u UL Flammability Classification Rating 94V-0

u Moisture Sensitivity: Level 3 per J-STD-020

applicaitons:

USB 2.0 and USB 3.0 Ports

u USB OTG

u Digital video interface(DVI)

u Monitor and Flat Panel Displays

u PCI Express and Serial SATA Ports

u Gigabit Ethernet

u IEEE 1394 firewire ports

u Consumer products (STB, DVD, DSC, DVC…)

Peak Pulse Power（tp=8/20μs）(vcc-GND) 300w

peak Pulse Current（tp=8/20μs）4.7a

ESD per IEC 61000−4−2 (Air): ±25kv

ESD per IEC 61000−4−2 (Contact): 20kv

Operating Temperature Range: −55 to +125°C

storage Temperature Range: −55 to +150

Factory Pack Quantity: 3000
