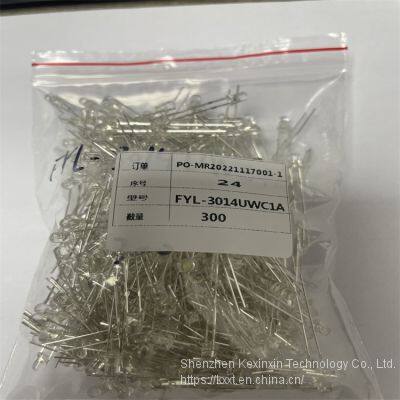

Foryard Optoelectronics Fyl-3014uwc1a Integrateds Circuit

model no: fyl-3014uwc1a

dip

Foryard optoelectronics

descriptions:

■Dice material: InGaN.

■Emitting Color: Super Bright Cool White.

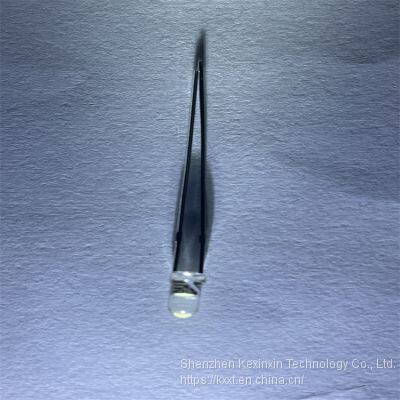

■Device Outline: Φ3mm round type.

■Lens Type: Water clear.

■ Features

 1.Low power consumption.

 2.High efficiency.

 3.General purpose leads.

 4.High intensity.

 5.RoHs compliant

Package configuration

cap width: 2.9-3.05mm

cap height: 5.38 mm

lead length: 25.4 mm

Notes:

1. All dimensions are millimeters (inches)

2. Tolerance is ±0.25mm(.010”) unless otherwise noted.

3. The specifications, characteristics and technical data described in the datasheet are subject

 to change without prior notice.

4.The drawing is different from the actual one, please refer to the sample.

■ Absolute Maximun Ratings(Ta=25ºC)

Power Dissipation: 100mw

Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) 100ma

continuous Forward Current: 30ma

derating Linear From 50℃: 0.4ma/℃

Reverse Voltage: 5v

operating Temperature Range: -40℃ to+85℃

storage Temperature Range  -40to+ 100℃

Lead Soldering Temperature[4mm(.157”) From Body]: 260℃ for 5 Seconds

Factory Pack Quantity: 1000

price: 0.02
