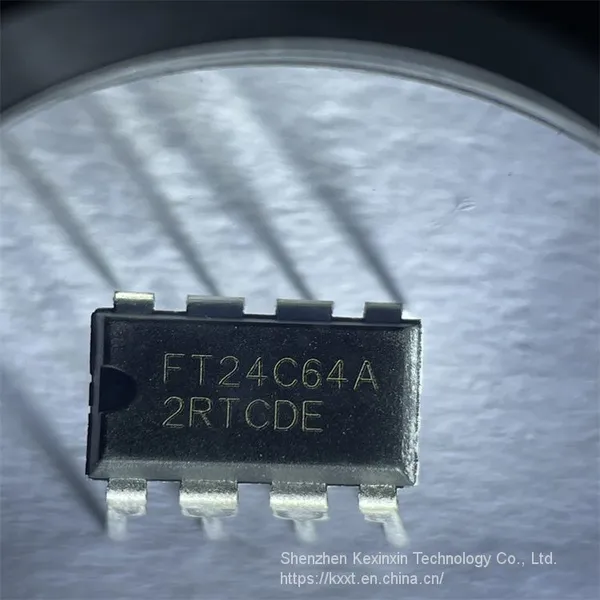

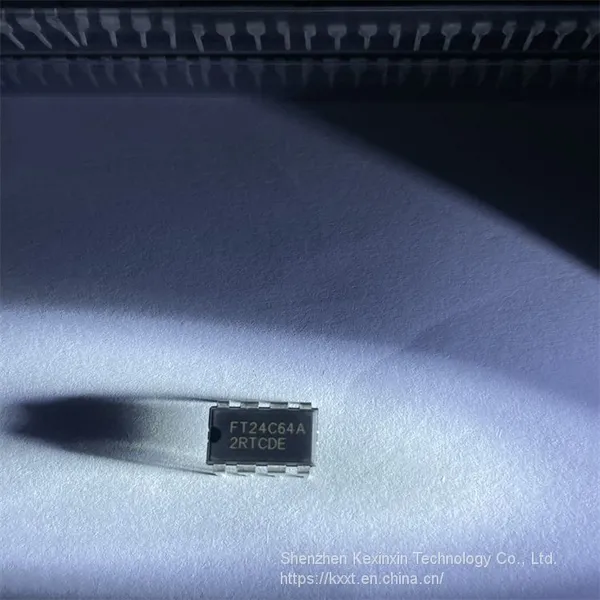

Low Voltage and Low Power Fremont Micro Devices FT24C64A-edr-b Original Integrated Circuit

FT24C64A-edr-b

Fremont Micro Devices

Two-Wire Serial EEPROM

64K(8-Bit wide)

Dip-8

Features:

Low voltage and low power operations:

FT24C64A: VCC= 1.8v to 5.5v

maximum standby current<1μA( typically 0.02μA and 0.06μA @ 1.8v and 5.5v respectively)

32 bytes page write mode.

partial page write operation allowed.

internally organized: 8,192x8(64k)

standard 2-wire bi-directional serial interface.

schmitt trigger, filtered inputs for noise pretection.

self-timed write cycle( 5ms maximum).

1000khz(2.5-5v), 400 khz (1.8v) compatibility.

automatic erase before write operation.

write protect pin for harward data protection.

high reliability: typically 1,000,000 cycles endurance.

100 years data retention.

industrial temperature range( -40℃ to 85℃）

standard 8-lead DIP/SOP/MSOP/TSSOP/DFN and 5-lead sot23.tsot23 PB-free packages.

description:

  The Ft24c64a series are 65,636 bits of serial electrical erasable and programmable read only memory, commonly known as EEPROM. They are organized as 8192 words of 8 bits (one byte) each. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applicaitons. These devices are available in standard 8-lead DIP, 8-lead sop, 8-lead TSSOP, 8-lead DFN, 5-lead sot23, and 5-lead TSOT23 packages, A standard 2-wire serial interface is used to address all read and write functions. Our extended vcc range (1.8v to 5.5v) devices enables wide spectrum of applications.

Factory Pack Quantity: 3000
