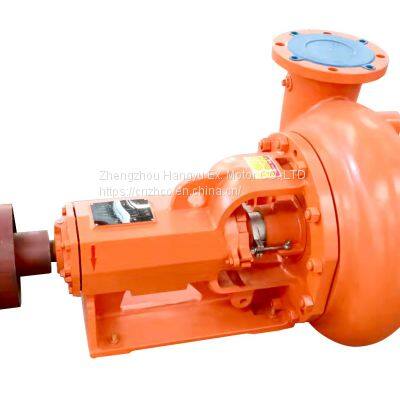

Mission Magnum 2500 supreme Centrifugal Pumps 8x6x14 ,G0006031 Housing Assembly Sand pump
We supply Mission centrifugal pump Magnum and parts ,100% interchangeable for below model:
Mission Centrifugal pumps Magnum 3x2x13
Mission Centrifugal pumps Magnum 4x3x13
Mission Centrifugal pumps Magnum 5x4x14
Mission Centrifugal pumps Magnum 6x5x11
Mission Centrifugal pumps Magnum 6x5x14
Mission Centrifugal pumps Magnum 8x6x11
Mission Centrifugal pumps Magnum 8x6x14
Product Description
| ITEM | QTY per pump | PART No. | Stock No | DESCRIPTION | MATERIAL | WEIGHT kg |
| Casings | ||||||
| 1* | 1 | 19203-01-30A | 641101753 | Casing,3×2×13 | QT600-3 | 55 |
| 1* | 1 | 19205-01-30A | 641101902 | Casing,4×3×13 | QT600-3 | 57 |
| 1* | 1 | 19222-01-30A | 641102058 | Casing,5×4×14 | QT600-3 | 85 |
| 1* | 1 | 19122-01-30A | 641101456 | Casing,6×5×11 | QT600-3 | 90 |
| 1* | 1 | 19123-01-30A | 641101605 | Casing,6×5×14 | QT600-3 | 95 |
| 1* | 1 | 19763-01-30A | 641102157 | Casing,8×6×11 | QT600-3 | 97 |
| 1* | 1 | 19117-01-30A | 641101308 | Casing,8×6×14 | QT600-3 | 125 |
| 1* | 1 | 20937-01-30A | 641102322 | Casing,10×8×14 | QT600-3 | 155 |
| Impellers | ||||||
| 2* | 1 | 19204-XX-30 | 641215603 | Impeller,3×2×13 | QT600-3 | 9 |
| 2* | 1 | 19206-XX-30 | 641217005 | lmpeller,4×3×13 | QT600-3 | 12.5 |
| 2* | 1 | 19224-XX-30 | 641217831 | Impeller,5×4×14 | QT600-3 | 13 |
| 2* | 1 | 19121-XX-30 | 641211602 | lmpeller,6×5×11 | QT600-3 | 14 |
| 2* | 1 | 19121-XX-30 | 641212105 | Impeller,6×5×14 | QT600-3 | 18 |
| 2* | 1 | 19121-XX-30 | 641211602 | Impeller,8×6×11 | QT600-3 | 18 |
| 2* | 1 | 19116-XX-30 | 641209903 | Impeller,8×6×14 | QT600-3 | 20 |
| 2* | 1 | 21867-XX-30 | 641221007 | Impeller,10×8×14 | ||
Model | 10×8×14 | 8×6×14 | 6×5×14 | 5×4×14 | 4×3×13 | 3×2×13 |
Discharge capacity | 260~280 m3/h | 240~260 m3/h | 220~240 m3/h | 120~220 m3/h | 60 m3/h | 50 m3/h |
Pump Head | 28~33 | 28~33m | 24~28m | 24~28m | 22~28m | 22~28m |
Efficiency | 65% | 65% | 65% | 65% | 65% | 65% |
Motor power | 75 kW | 55/75 kW | 37/45 kW | 30/37/45 kW | 11/15 kW | 7.5/11 kW |
Motor speed | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm |
Inlet diameter | 10″ | 8″ | 6″ | 5″ | 4″ | 3″ |
Outlet diameter | 8″ | 6″ | 5″ | 4″ | 3″ | 2″ |
Weight | 1150kg | 1000/1150kg | 920/1050kg | 819/887/920kg | 438/460kg | 358/400kg |
Overall dimensions mm | 2020×675×950 | 1930×650×880 /2000×675×950 | 1848×595×800 /1875×595×850 | 1770×505×835 /1820×585×800 /1845×585×850 | 1545×500×710 / 1585×500×710 | 1435×485×640 /1530×485×710 |
