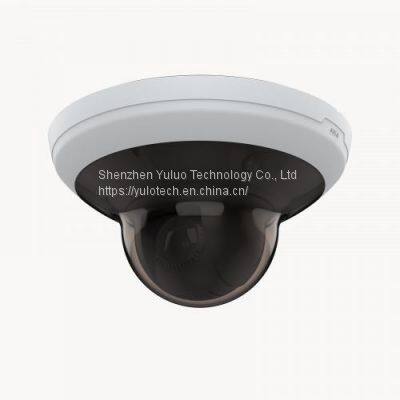

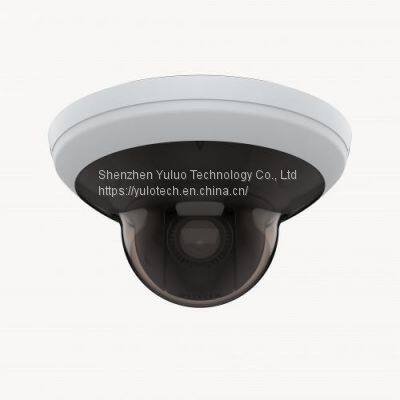

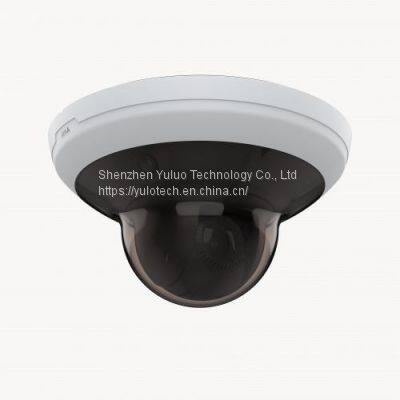

AXIS M5075-G PTZ Camera

Technical specifications

DATASHEET (PDF)

Models: AXIS M5075-G EU / AXIS M5075-G US / AXIS M5075-G JP

Camera

Property description Property value

Min illumination/ light sensitivity (Color) 0.1 lux

Image sensor CMOS

Image sensor size 1/2.8

Lightfinder –

Wide dynamic range Forensic WDR

Min illumination/ light sensitivity (B/W) –

General

Property description Property value

Built-in IR –

OptimizedIR –

Local storage (memory card slot) Yes

Operating temperature 0 to 45 °C

Outdoor Ready –

Vandal rating –

IP rating IP51

Designed for repaint Yes

Analytics

Property description Property value

Autotracking version –

Orientation aid –

Video

Property description Property value

Max video resolution 1920x1080

Max frames per second 50/60

Day and Night functionality Yes

Electronic image stabilization –

Lens

Property description Property value

Focal length 2.2 - 11.0 mm

Horizontal field of view 71 - 14 °

Vertical field of view 40-8 °

Pan, Tilt, Zoom

Property description Property value

Optical zoom 5

Pan range +/-179

Tilt range 90

Guard tour –

Digital zoom 12

Compression

Property description Property value

Zipstream Yes

H.264 Baseline, High, Main

H.265 Yes

Motion JPEG Yes

Audio

Property description Property value

Audio Support Yes

Built-in microphone Yes

System Integration

Property description Property value

Audio detection Yes

Active tampering Yes

Alarm inputs/outputs –

Network

Property description Property value

PoE Class 3

Security

Property description Property value

Signed firmware Yes

Secure boot –

TPM –
