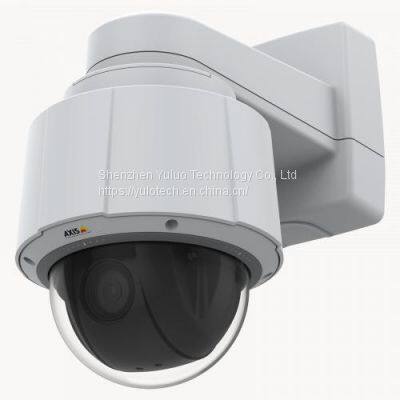

AXIS Q6074 PTZ Network Camera

Part number for ordering

NAME AXIS REGION PART NUMBER

AXIS Q6074 60 Hz US 01968-004

AXIS Q6074 60 Hz JP 01968-005

AXIS Q6074 60 Hz KR 01968-007

AXIS Q6074 60 Hz BR 01968-012

AXIS Q6074 50 Hz EU, UK 01967-002

AXIS Q6074 50 Hz AU 01967-006

AXIS Q6074 50 Hz CN 01967-009

AXIS Q6074 50 Hz AR 01967-008

AXIS Q6074 50 Hz IN 01967-113

Technical specifications

DATASHEET (PDF)

Models: AXIS Q6074 50 Hz / AXIS Q6074 60 Hz

Camera

Property description Property value

Lightfinder Lightfinder 2.0

Min illumination/ light sensitivity (Color) 0.1 lux

Min illumination/ light sensitivity (B/W) 0.002 lux

Image sensor CMOS

Image sensor size 1/2.8

Wide dynamic range WDR

General

Property description Property value

Built-in IR –

OptimizedIR –

Local storage (memory card slot) Yes

Operating temperature 0 to 50 °C

Outdoor Ready –

Vandal rating –

IP rating IP52

Designed for repaint Yes

Analytics

Property description Property value

Autotracking version Autotracking 2

Orientation aid orientation aid PTZ

Video

Property description Property value

Max video resolution 1280x720

Max frames per second 50/60

Day and Night functionality Yes

Electronic image stabilization Yes

Lens

Property description Property value

Focal length 4.25-127.5 mm

Horizontal field of view 63.8-2.6 °

Vertical field of view 38.0-1.47 °

Pan, Tilt, Zoom

Property description Property value

Optical zoom 30

Pan range 360 endless

Tilt range 180

Guard tour preset position tour

Digital zoom 12

Compression

Property description Property value

Zipstream Yes

H.264 Baseline, High, Main

H.265 Yes

Motion JPEG Yes

Audio

Property description Property value

Audio Support Yes

Built-in microphone –

System Integration

Property description Property value

Audio detection Yes

Active tampering –

Alarm inputs/outputs 4

Network

Property description Property value

PoE Class 4

Security

Property description Property value

Signed firmware Yes

Secure boot Yes

TPM Yes
