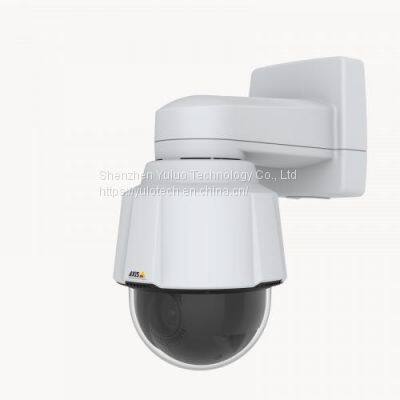

AXIS Q6074-E PTZ Network Camera

Technical specifications

DATASHEET (PDF)

Models: AXIS Q6074-E 50 Hz / AXIS Q6074-E 60 Hz

Camera

Property description Property value

Lightfinder Lightfinder 2.0

Min illumination/ light sensitivity (Color) 0.1 lux

Min illumination/ light sensitivity (B/W) 0.002 lux

Image sensor CMOS

Image sensor size 1/2.8

Wide dynamic range WDR

General

Property description Property value

Built-in IR –

OptimizedIR –

Local storage (memory card slot) Yes

Operating temperature -50 to 50 °C

Outdoor Ready Yes

Vandal rating IK10

IP rating IP66, IP67

Designed for repaint Yes

Analytics

Property description Property value

Autotracking version Autotracking 2

Orientation aid orientation aid PTZ

Video

Property description Property value

Max video resolution 1280x720

Max frames per second 50/60

Day and Night functionality Yes

Electronic image stabilization Yes

Lens

Property description Property value

Focal length 4.25-127.5 mm

Horizontal field of view 63.8-2.6 °

Vertical field of view 38.0-1.47 °

Pan, Tilt, Zoom

Property description Property value

Optical zoom 30

Pan range 360 endless

Tilt range 220

Guard tour preset position tour

Digital zoom 12

Compression

Property description Property value

Zipstream Yes

H.264 Baseline, High, Main

H.265 Yes

Motion JPEG Yes

Audio

Property description Property value

Audio Support Yes

Built-in microphone –

System Integration

Property description Property value

Audio detection –

Active tampering –

Alarm inputs/outputs –

Network

Property description Property value

PoE Class High PoE

Security

Property description Property value

Signed firmware Yes

Secure boot Yes

TPM Yes
