AXIS C1210-E 02324-001 Network Ceiling Speaker

AXIS C1210-E 02324-001 Network Ceiling Speaker

Discrete ceiling installation – large

All-in-one speaker system

Connects to standard network

Easy installation with just one network cable (PoE)

Scalable and easy to integrate

Remote health testing

Audio management software

audio manager c7050 mk 3

AXIS Audio Manager Pro C7050 Mk III

Audio management software pre-installed on a Windows 10 appliance

The following compatible products have been discontinued.

Audio management software

AXIS Audio Manager Pro C7050 MkII

Media converters

AXIS T8646 PoE+ Over Coax Blade Kit

Power

AXIS T81B22 DC 30 W Midspan 1-port

AXIS T8123-E Outdoor Midspan 30 W 1-port

AXIS T8133 Midspan 30 W 1-port

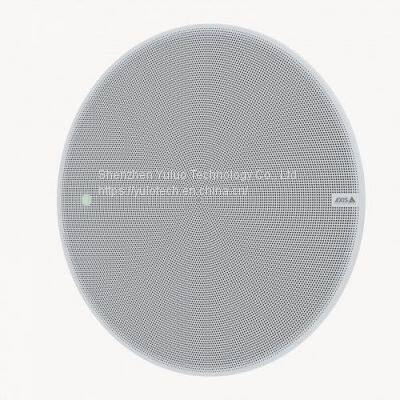

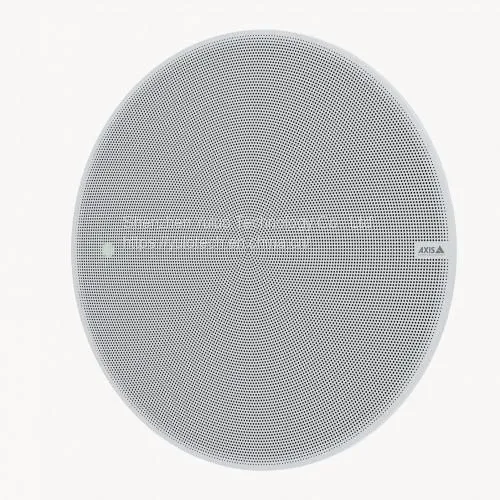

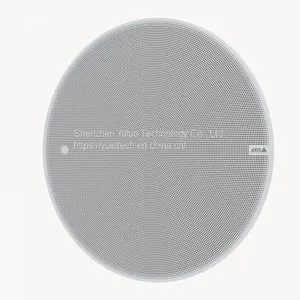

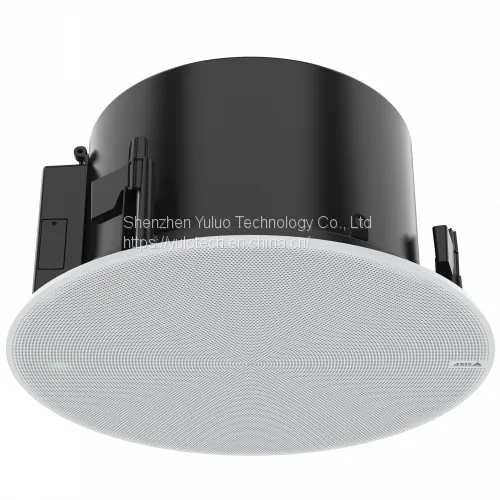

AXIS C1210-E Network Ceiling Speaker

Discrete in-ceiling installation—large

AXIS C1210-E is an all-in-one speaker system that makes voice announcements and background music smart and easy.

It connects to standard network using one cable for both power (PoE) and connectivity. AXIS C1210-E offers flexible,

discrete recessed ceiling installation, ideal for indoor environments but can also be used for protected outdoor areas

like under the eaves. Additionally, it features a backbox that meets plenum requirements. It offers easy integration with

your video management software (VMS), VoIP telephony, analytics, and more. Including a preconfigured digital signal

processer (DSP) it produces clear voice every time. It also features a built-in microphone enabling remote health testing

and 2-way audio talk-back. Furthermore, the embedded audio management software supports user, content, zone, and

scheduling management.

> All-in-one speaker system

> Connects to standard network

> Easy installation with just one network cable (PoE)

> Scalable and easy to integrate

> Remote health testing

Audio hardwareEnclosure One way enclosure with 6.5 inches broadband dynamic conespeakerMax soundpressure level96 dBFrequencyresponse40 Hz - 20 kHzCoverage pattern 130° coaxialAudioinput/outputBuilt-in microphone (can be disabled)External microphone, Line inBuilt-inmicrophonespecification50 Hz - 20 kHzAmplifierdescriptionBuilt-in 7 W Class D amplifierDigital signalprocessingBuilt-in and pre-configured

Audio hardware

Enclosure One way enclosure with 6.5 inches broadband dynamic cone

speaker

Max sound

pressure level

96 dB

Frequency

response

40 Hz - 20 kHz

Coverage pattern 130° coaxial

Audio

input/output

Built-in microphone (can be disabled)

External microphone, Line in

Built-in

microphone

specification

50 Hz - 20 kHz

Amplifier

description

Built-in 7 W Class D amplifier

Digital signal

processing

Built-in and pre-configured

Audio management

AXIS Audio

Manager Edge

Built in:

– Content management for music and live/pre-recorded

announcements.

– Scheduling to decide when and where to play specific content.

– Content prioritization to ensure urgent messages interrupt

the schedule.

– Zone management allowing you to divide up to 200 speakers

into 20 zones.

– Health monitoring for remote discovery of system errors.

– User management to control who has access to what features.

See separate datasheet for more details.

AXIS Audio

Manager Pro

For larger and more advanced systems. Sold separately. See

separate datasheet for specifications.

Audio software

Audio streaming One-way/two-way with optional half-duplex echo cancellation.

Mono.

Audio encoding AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz,

Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to

320 kbps.

Constant and variable bit rate.

Sampling rate from 8 kHz up to 48 kHz.

System on chip (SoC)

Model i.MX 6SoloX

Memory 512 MB RAM, 512 MB Flash

Network

Network

protocols

IPv4/v6a

, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP,

CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II),

DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP,

ICMP, DHCP, ARP, SOCKS, SSH, Secure syslog (RFC 3164/5424,

UDP/TCP/TLS), NTCIP, SIP (Cisco, Avaya, Asterisk)

System integration

Application

Programming

Interface

Open API for software integration, including VAPIX®, One-click

cloud connection, AXIS Camera Application Platform (ACAP).

VoIP Support for Session Initiation Protocol (SIP) for integration with

Voice over IP (VoIP) systems. Peer to peer or integrated with

SIP/PBX.

Tested with: SIP client such as Cisco, Bria and Grandstream and

PBX suppliers such as Cisco and Asterisk.

Supported SIP features: secondary SIP server, IPv6, SRTP/RTSPS,

SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN,

TURN)

Supported codecs: PCMU, PCMA, opus, L16/16000, L16/8000,

speex/8000, speex/16000, G.726-32

Intelligent audio Auto Speaker Test (verification via built-in microphone)

Event triggers Call, virtual inputs, external input, AXIS Camera Application

Platform (ACAP)

Event actions Play audio clip, send SNMP trap, send Auto Speaker Test,

status LED, File upload via HTTP, network share and email,

Notification via email, HTTP, HTTPS and TCP,

external output activation

Built-in

installation aids

Test tone verification and identification

Cybersecurity

Edge security Software: Signed firmware, brute force delay protection, digest

authentication, password protection, AES-XTS-Plain64 256bit

SD card encryption

Hardware: Axis Edge Vault cybersecurity platform

Secure element (CC EAL 6+), Axis device ID, secure keystore,

signed video, secure boot

Network security IEEE 802.1X (EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3,

Network Time Security (NTS), X.509 Certificate PKI, IP address

filtering

Documentation AXIS OS Hardening Guide

Axis Vulnerability Management Policy

Axis Security Development Model

AXIS OS Software Bill of Material (SBOM)

To download documents, go to /support/cybersecurity/resources

To read more about Axis cybersecurity support, go to

/cybersecurity

General

Casing IP44 (IP40 above ceiling)

Baffle: Plastic

Top cover: Plastic

Mesh: Surface-treated steel plate

Mesh color: Off-white (RAL 9010 or equivalent)

Repaintable. For repainting instructions and impact on warranty,

contact your Axis partner.

Speaker mounting method: Plastic clamp

Power Power over Ethernet (PoE), IEEE 802.3af Type 1 Class 3 (max

12.95 W)

Connectors RJ45 10BASE-T/100BASE-TX PoE

I/O: 4-pin 2.5 mm terminal block for 2x supervised configurable

I/Os

Storage Support for microSD/microSDHC/microSDXC card

Max. size 64 GB

For SD card recommendations see

Reliability Designed for 24/7 operation.

LED indicators Status LED, front-facing LED

Operating

conditions

-30 °C to 50 °C (-22 °F to 122 °F)

Humidity 10–100 % RH (condensing)

Storage

conditions

-40 °C to 65 °C (-40 °F to 149 °F)

Humidity 5–95 % RH (non-condensing)

Approvals EMC

CISPR 24, CISPR 35, CISPR 32 Class A, EN 55024,

EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2,

EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B Class A,

ICES-3(A)/NMB-3(A), KC KN35, KC KN32 Class A,

RCM AS/NZS CISPR 32 Class A, VCCI Class A

Safety

CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22,

IEC/EN 62368-1, KC-Mark, UL 62368-1, UL 60950-22

Environment

IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,

IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP44

Dimensions Height: 150 mm (5.9 in), Front-mesh Ø 285 mm (11.2 in)

Ceiling thickness: for mounting: 0–60 mm (0–2.4 in)

Dimensions for fixing hole: Ø 261 mm ± 2 mm (10.3 in ± 0.08 in)

Weight 3100 g

Optional

accessories

AXIS TC1603 Tile Bridge (for installation in soft ceiling),

AXIS TC1602 Conduit Adapter, AXIS TC1702 Back Cover,

AXIS Safety Wire 3M

For more accessories, see

Video

management

software

AXIS Companion, AXIS Camera Station, video management

software from Axis’ Application Development Partners available

on /techsup/software

Languages English, German, French, Spanish, Italian
