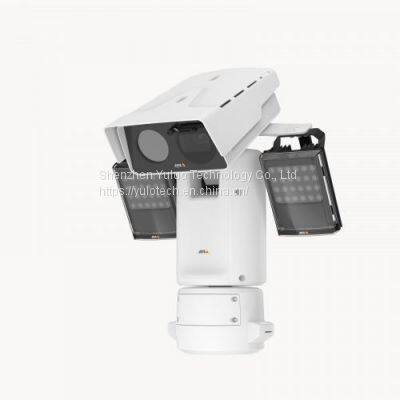

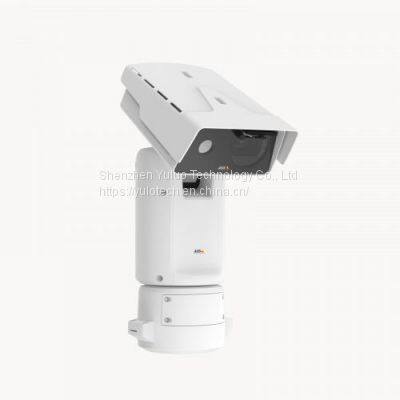

AXIS Q8752-E Bispectral PTZ Camera

Technical specifications

DATASHEET (PDF)

Models: AXIS Q8752-E Zoom 30 fps / AXIS Q8752-E Zoom 8.3 fps / AXIS Q8752-E 35 mm 8.3 fps / AXIS Q8752-E 35 mm 30 fps

Camera

Property description Property value

Lightfinder Lightfinder 2.0

Min illumination/ light sensitivity (Color) 0.1 lux

Min illumination/ light sensitivity (B/W) 0.02 lux

Image sensor CMOS

Image sensor size 1/2.8

Wide dynamic range Forensic WDR

General

Property description Property value

Built-in IR –

OptimizedIR –

Local storage (memory card slot) Yes

Operating temperature -40 to 55 °C

Outdoor Ready Yes

Vandal rating IK10

IP rating IP66

Designed for repaint Yes

Analytics

Property description Property value

Autotracking version Autotracking 2

Orientation aid orientation aid PTZ

Video

Property description Property value

Max video resolution 1920x1080

Max frames per second 50/60

Day and Night functionality Yes

Electronic image stabilization Yes

Lens

Property description Property value

Focal length 4.3-137.6 mm

Horizontal field of view 58.5-2.4 °

Vertical field of view 34.9 - 1.3 °

Pan, Tilt, Zoom

Property description Property value

Optical zoom 32

Pan range 360 endless

Tilt range -90 to 45

Guard tour preset position tour

Digital zoom 12

Compression

Property description Property value

Zipstream Yes

H.264 Baseline, High, Main

H.265 Yes

Motion JPEG Yes

Audio

Property description Property value

Audio Support Yes

Built-in microphone –

System Integration

Property description Property value

Audio detection Yes

Active tampering –

Alarm inputs/outputs 4

Network

Property description Property value

PoE Class –

Security

Property description Property value

Signed firmware Yes

Secure boot Yes

TPM Yes

Cables & connectors

AXIS Cable 24 V DC/24-240 V AC 22 m

AXIS Cable 24 V DC/24-240 V AC 22 m

Tailor-made for Axis positioning cameras

Recommended for this product

Illuminators

AXIS PT IR Illuminator Kit C

AXIS PT IR Illuminator Kit C

Long-range illuminators for Axis positioning units

Recommended for this product

AXIS T90D25 W-LED Illuminator

AXIS T90D25 W-LED

High-performance white LED illuminator with ease of installation

Requires additional accessory

Recommended for this product

AXIS T90D35 W-LED Illuminator

AXIS T90D35 W-LED

High-performance white LED illuminator with ease of installation

Requires additional accessory

Recommended for this product

Media converters

AXIS T8611 SFP Module LC.LX

AXIS T8611 SFP Module LC.LX

Single-mode fiber module for up to 10 km transmission range

Recommended for this product

AXIS T8612 SFP Module LC.SX

AXIS T8612 SFP Module LC.SX

Multi-mode fiber module for up to 550 m transmission range

Recommended for this product

AXIS T8613 SFP Module 1000BASE-T

AXIS T8613 SFP Module 1000BASE-T

Ethernet module for expansion of network ports

Recommended for this product

Mounts

AXIS T94J01A Wall Mount

AXIS T94J01A Wall Mount

Robust design with cable protection

Recommended for this product

AXIS T94N01G Pole Mount

AXIS T94N01G Pole Mount

For sturdy installations in harsh environments

Requires additional accessory

Recommended for this product

AXIS T95A64 Corner Bracket

AXIS T95A64 Corner Bracket

Mounting of various Axis products

Requires additional accessory

Recommended for this product

AXIS T99 Illuminator Bracket Kit A

AXIS T99 Illuminator Bracket Kit A

For white illuminators and Axis positioning units

Recommended for this product

AXIS TQ6901-E Adapter Mount Bracket, viewed from its front

AXIS TQ6901-E Adapter Mount Bracket

For retrofitting PTZ cameras

Recommended for this product

Power adapters

Power supply DIN PS24 480 W

Power supply DIN PS24 480 W

For use with Axis positioning units

Recommended for this product

Switches

AXIS D8208-R Industrial PoE++ Switch, viewed from its left angle

AXIS D8208-R Industrial PoE++ Switch

Managed, 8-port industrial PoE++ switch

Recommended for this product

AXIS T8504-E Outdoor PoE Switch

AXIS T8504-E Outdoor PoE Switch

Managed, plug-and play outdoor switch

Recommended for this product

AXIS T8504-R Industrial PoE Switch

AXIS T8504-R Industrial PoE Switch

Managed, industrial PoE switch

Recommended for this product

AXIS T8508 PoE+ Network Switch

AXIS T8508 PoE+ Network Switch

8 port switch for efficient network management

Recommended for this product

AXIS T8516 PoE+ Network Switch

AXIS T8516 PoE+ Network Switch

16 port switch for efficient network management

Recommended for this product

AXIS T8524 PoE+ Network Switch

AXIS T8524 PoE+ Network Switch

24 port switch for efficient network management

Recommended for this product

Tools & extras

AXIS Bird Control Spike

AXIS Bird Control Spike

Keep your outdoor network cameras clean

Recommended for this product

AXIS T8415 Wireless Installation Tool

AXIS T8415 Wireless Installation Tool

Simplicity in your hand

Recommended for this product

AXIS Washer Kit B

AXIS Washer Kit B

For cleaning of selected Axis PTZ cameras

Recommended for this product

Part number for ordering

NAME AXIS REGION PART NUMBER

AXIS Q8752-E Zoom 8.3 fps AR, AU, BR, CN, EU, KR, UK, US

01840-001

AXIS Q8752-E Zoom 8.3 fps IN

01840-113

AXIS Q8752-E Zoom 30 fps AR, AU, CN, EU, JP, KR, UK, US

01841-001

AXIS Q8752-E Zoom 30 fps IN

01841-113

AXIS Q8752-E 35 mm 8.3 fps AR, AU, BR, CN, EU, KR, UK, US

01839-001

AXIS Q8752-E 35 mm 8.3 fps IN

01839-113

AXIS Q8752-E 35 mm 30 fps AR, AU, CN, EU, JP, KR, UK, US

01838-001

AXIS Q8752-E 35 mm 30 fps IN

01838-113
