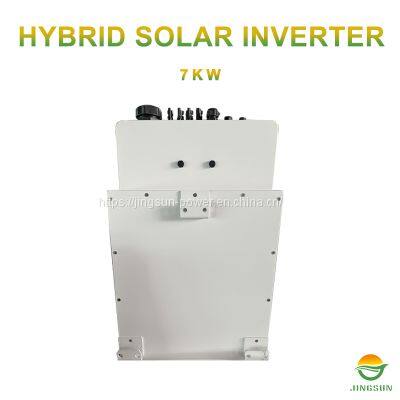

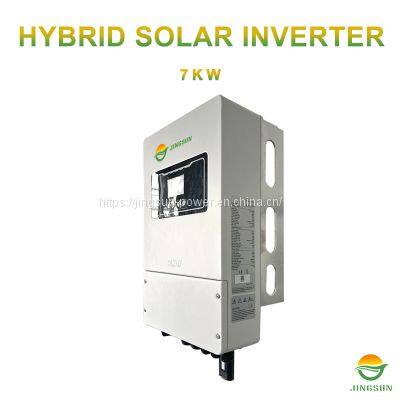

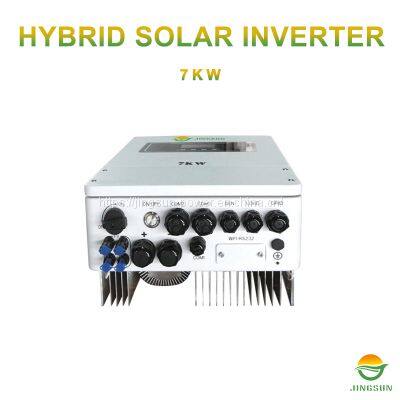

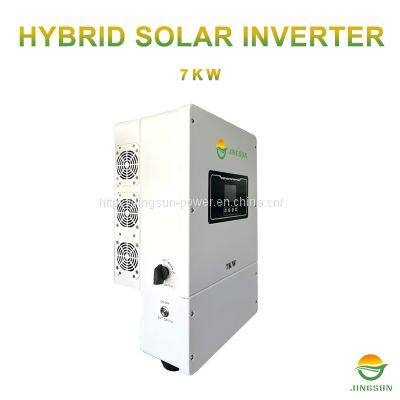

7KW Hybrid Inverter
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Brand Name: | jingsun-power.com | Place of Origin: | China | Model Number: | Hybrid Inverter 7KW |
Application: | Home | Specification: | Normal |
Product Description
Product Description
1. Programmable multiple operation modes: The Jingsun 7KW hybrid inverter has the advantage of being able to be programmed to operate in multiple modes, allowing for greater flexibility and control over power usage and management.
2. On-grid and off-grid capabilities: The Jingsun 7KW hybrid inverter is designed with both on-grid and off-grid capabilities, ensuring uninterrupted power supply whether you are connected to the grid or not.
3. Up to S overload protection: The Jingsun 7KW hybrid inverter is equipped with up to S overload protection, which ensures that it can handle high levels of power demand and protect against damage caused by overloading or short circuits.
4. Over-temperature protection: The Jingsun 7KW hybrid inverter is designed to protect against overheating, which is a common problem with many other types of inverters. This ensures that the inverter continues to operate efficiently and reliably, even under high temperature conditions.
5. Short circuit protection: The Jingsun 7KW hybrid inverter is also equipped with short circuit protection, which ensures that it will shut down safely in the event of a short circ
Product Specification
Model | JS 7K-SPLVES1-EU |
V max PV(V dc)(absolute Max.) | 500 |
ISC PV(absolute Max.)(A) | 34/34 |
Max.PV input current/strings(A) | 26/26 |
Number MPP trackers/Number input strings | 2/2 |
MPPT voltage range (VDC) | 125-500 |
VDC range @full power(VDC) | 240-425 |
Power PV Max(kW) | 9.2 |
AC Grid(input and output) | |
Normal AC Voltage(VAC)/Frequency(Hz) | 230-50 |
Normal AC Current(A)/nt.input/output current(A) | 30.5/30.5 |
nt.input/output Power(kW)/nt.Apparent Power(KVA) | 7/7 |
Power factor(adjustable) | 1.0(-0.8 ~ +0.8) |
AC Load output(standalone) | |
Normal Voltage(VAC)/Frequency(Hz) | 230/50 |
Nominal Current(A) | 30.5 |
nt.Power(kW) | 7 |
nt.Apparent Power(KVA) | 7 |
Power factor(adjustable) | 1.0(-0.8 ~ +0.8) |
Efficiency | |
Max.Efficiency | 97.60% |
Euro Efficiency | 97.00% |
MPPT Efficiency | 99.90% |
Protection | |
PV Input Lightning Protection/Anti-is landing Protection | Integrated |
DC circuit breaker/PV String Input Reverse Polarity Protection | Integrated |
Insulation Resist or Detection/Residual Current Monitoring Unit | Integrated |
Output Over Current Protection/Output Shorted Protection | Integrated |
Output Over Voltage Protection | Integrated |
Surge protection | DC Type ll/AC Type ll |
Certifications and Standards | |
Grid Regulation | IEC61683,IEC62116,IEC61727 |
Safety Regulation | IEC62109-1,IEC62109-2 |
EMC | EN61000-6-1,EN61000-6-3 |
Others | |
Ingress protection(IP) | IP65 |
Protective class | Class I |
Temperature(℃) | -25℃to+60℃(Derating45℃) |
Overvoltage category | OVCII(AC Main),OVCII(PV) |
