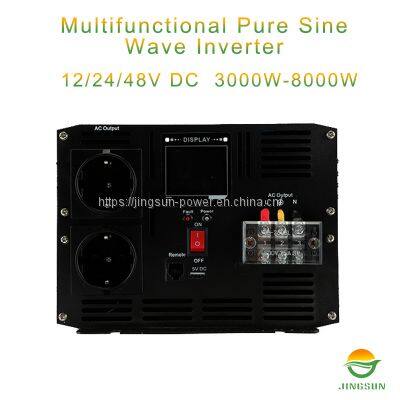

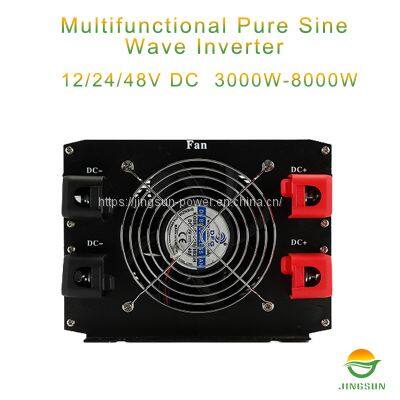

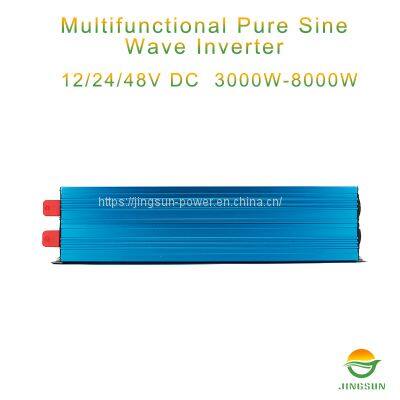

Help Center8000 Watt Pure Sine Wave Inverter
Related Products
Products Description
1. High Efficiency: The 8000W Pure Sine Wave Inverter is highly efficient, converting DC power into AC power with minimal power loss during the conversion process. This translates into lower energy bills and longer run times for your devices.
2. Clean Power: The pure sine wave output of this inverter ensures that your devices receive clean power without any distortion or interference, which is crucial for sensitive electronics like medical equipment, audio equipment, and computers.
3. High Power Capabilities: With an output of 8000W, this inverter is capable of powering a wide range of devices, including power tools, RV appliances, and even small household appliances during power outages.
4. Durable and Reliable: The 8000W Pure Sine Wave Inverter is built to last, with high-quality components and a durable construction that can withstand tough conditions, including harsh weather and high usage.
5. Multiple Protection Features: This inverter comes equipped with multiple protection features, including overload protection, short-circuit protection, over-temperature protection, and low voltage shutdown, which ensures the safety of your devices and the inverter itself.
Products Specification
Rated Power |
3000W |
3500W |
4000W |
5000W |
6000W |
8000W |
Surge Power |
6000W |
7000W |
8000W |
10000W |
12000W |
16000W |
Input Voltage |
12VDC/24VDC/48VDC |
|||||
Output Voltage |
110VAC±5%/220VAC±5% |
|||||
USB Port |
5V 1000MA |
|||||
Frequency |
50HZ±3 or 60HZ±3 |
|||||
Output Waveform |
Pure Sine Wave |
|||||
Soft Start |
YES |
|||||
THD/AC Regulation |
THD＜3%(Linear Load) |
|||||
Output Efficiency |
94.2% MAX |
|||||
No Load Current |
1.8A/0.9A/0.5A |
2A/1A/0.4A |
2.2A/1.1A/0.5A |
2.6A/1.3A/0.6A |
2.8A/1.4A/0.8A |
3A/1.6A/0.9A |
DC Voltage Range |
10V-15.5V/21.5V-28V/41.5V-59.5V |
|||||
Low Voltage Alarm |
10.5±0.5V/21±0.5V/42±1V |
|||||
low Voltage Shut Down |
10±0.5V/20±0.5V/40±1V |
|||||
Low Voltage Recovery |
13±0.5V/24±0.5V/48±1V |
|||||
Over Voltage Shut Down |
15.5±0.5V/31±0.5V/61±1V |
|||||
Over Voltage Recovery |
14.8±0.5V/29±0.5V/59±1V |
|||||
Cooling Way |
Intelligent Cooling Fan |
|||||
Protection |
Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit |
|||||
Working Temperature |
（-10℃+60℃ Civil class，-25℃+60℃ technical grade，-40℃+70℃ army grade） |
|||||
Storage Temperature |
（-30℃ - 70℃） |
|||||
Humidity |
90% MAX，Non-condensing |
|||||
Warranty |
2 Years |
|||||
Net Dimension(mm) |
480*199*84 |
510*200*150 |
510*200*150 |
510*200*150 |
610*200*150 |
610*200*150 |
Package Dimension(mm) |
608*260*147 |
635*308*240 |
635*308*240 |
635*308*240 |
735*308*240 |
735*308*240 |
N.W./Unit/G.W./Unit |
6.1kg/7.135kg |
8.92kg/10.7kg |
9.04kg/10.84kg |
10.12kg/11.72kg |
11.62kg/13.44kg |
13.14kg/14.96kg |
Ctn |
4PCS |
1PCS |
1PCS |
1PCS |
1PCS |
1PCS |
Meas./Ctn（mm） |
625*530*295 |
635*308*240 |
635*308*240 |
635*308*240 |
735*308*240 |
735*308*240 |
G.W./Ctn |
30.44kg |
10.7kg |
10.84kg |
11.72kg |
13.44kg |
14.96kg |
