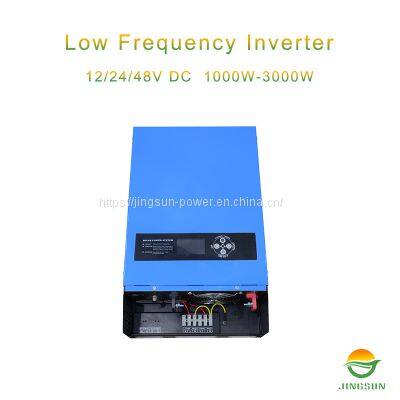

Help CenterPower Frequency Inverter
Related Products
Product Description
1. Pure sine wave output: A low-frequency inverter produces a pure sine wave output, which is a clean and stable electrical signal that can power sensitive electronic devices without any glitches or disturbances.
2. Built-in PWM MPPT controller: The inverter comes with a built-in Pulse Width Modulation Maximum Power Point Tracking (PWM/MPPT) controller that optimizes the performance of solar panels by adjusting their output voltage to match the charging characteristics of batteries.
3. Optional controller: It is possible to add an external controller to the low-frequency inverter to enhance its functionality and performance. This feature allows you to customize the inverter according to your specific needs.
4. Adjustable AC output: The inverter can deliver AC output ranging from 0 to 30A, which gives you the flexibility to adjust the output to meet the power requirements of your appliances.
5. Better efficiency: The inverters are known for their high efficiency, and they can convert DC power from batteries or solar panels into AC power with minimal losses. This translates into lower energy bills and longer battery life.
Products Specification
Rated Power |
1000W |
1500W |
2000W |
3000W |
|
Peak Power（20ms) |
3000VA |
4500VA |
6000VA |
9000VA |
|
Start Motor |
1HP |
1.5HP |
2HP |
3HP |
|
Battery Voltage |
12/24/48VDC |
24/48VDC |
|||
Size(L*W*Hmm) |
500*300*140 |
||||
Packing Size(L*W*Hmm) |
565*395*225 |
||||
N.W.(kg) |
12 |
13.5 |
18 |
20 |
|
G.W.(kg)（Carton Packing） |
13.5 |
15 |
19.5 |
21.5 |
|
Installation Method |
Wall-Mounted |
||||
Parameter | |||||
Input |
DC Input Voltage Range |
10.5-15VDC（Single battery voltage） |
|||
AC Input Voltage Range |
85VAC~138VAC（110VAC） / 95VAC~148VAC（120VAC） / 170VAC~275VAC（220VAC） / |
||||
AC Input Frequency Range |
45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) |
||||
Max AC charging current |
0~30A(Depends on model) |
||||
AC charging method |
Three-stage (constant current, constant voltage, floating charge) |
||||
Output |
Efficiency(Battery Mode) |
≥85% |
|||
Output Voltage(Battery Mode) |
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% |
||||
Output Frequency(Battery Mode) |
50/60Hz±1% |
||||
Output Wave(Battery Mode) |
Pure Sine Wave |
||||
Efficiency(AC Mode) |
>99% |
||||
Output Voltage(AC Mode) |
110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% |
||||
Output Frequency(AC Mode) |
Tracking Automatically |
||||
Output waveform distortion |
≤3%（Linear load） |
||||
No load loss(Battery Mode) |
≤0.8% rated power |
||||
No load loss(AC Mode) |
≤2% rated power（ charger does not work in AC mode） |
||||
No load loss |
≤10W |
||||
Battery Type |
VRLA Battery |
Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage） |
|||
Customize battery |
Charging and discharging parameters of different types of batteries can be customized according to user requirements |
||||
Protection |
Battery Undervoltage Alarm |
Factory default: 11V（Single battery voltage） |
|||
Battery Undervoltage Protection |
Factory default: 10.5V（Single battery voltage） |
||||
Battery Overvoltage Alarm |
Factory default: 15V（Single battery voltage） |
||||
Battery Overvoltage Protection |
Factory default: 17V（Single battery voltage） |
||||
Battery Overvoltage Recovery Voltage |
Factory default: 14.5V（Single battery voltage） |
||||
Overload Power Protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
||||
Inverter Output Short Circuit Protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
||||
Temperature Protection |
>90°C（Shut down output） |
||||
Alarm |
A |
Normal working condition, buzzer has no alarm sound |
|||
B |
Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection |
||||
C |
When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal |
||||
Inside Solar controller |
Charging Mode |
MPPT or PWM |
|||
Charging Current |
10A~60A（PWM or MPPT） |
||||
PV Input Voltage Range |
PWM: 15V-44V(12V System); 30V-44V(24V System); 60V-88V(48V System) |
||||
Max PV Input Voltage(Voc) |
PWM: 50V(12V/24V System ); 100V(48V System) / MPPT: 150V |
||||
PV Array Maximum Power |
12V System: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A）; |
||||
Standby Loss |
≤3W |
||||
Maximum Conversion Efficiency |
>95% |
||||
Working Mode |
Battery First/AC First/Saving Energy Mode |
||||
Transfer Time |
≤4ms |
||||
Display |
LCD |
||||
Thermal Method |
Cooling fan in intelligent control |
||||
Communication |
RS485/APP（WIFI monitoring or GPRS monitoring） |
||||
Environment |
Operating Temperature |
≤55dB |
|||
Storage Temperature |
-10℃~40℃ |
||||
Noise |
-15℃~60℃ |
||||
Elevation |
2000m（More than derating） |
||||
Humidity |
0%~95% ,No condensation |
||||
