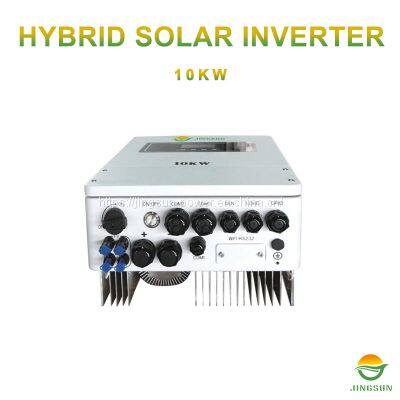

Help CenterInverter Hybrid 10KW
Related Products
-
High Frequency Pure Sine Wave InverterUS$ 200 - 250MOQ: 1 Piece -
Off Grid 3 Phase InverterUS$ 830 - 1000MOQ: 2 Pieces
-
Modified Wave InverterUS$ 205 - 220MOQ: 2 Pieces
-
Pure Sine Wave Inverter With Battery ChargerUS$ 205 - 220MOQ: 2 Pieces
-
Hybrid Solar Power InverterUS$ 205 - 220MOQ: 2 Pieces
Product advantages
1. High Efficiency: Jingsun10KWhybridinverter has high efficiency due to its advanced technology and design. It can convert solar energy into electricity with a conversion efficiency of up to 97.5%. This means that it can produce more energy from the same amount of sunlight, which is beneficial for homeowners and businesses.
2. Dual MPPT: The inverter is equipped with two maximum power point tracking (MPPT) inputs that allow flexible installation and more efficient power generation. This means that it can maximize energy production in different conditions, such as in shaded areas or during partial cloud cover.
3. Compact Size: The Jingsun10KWhybridinverter is designed to be compact and lightweight, making it easy to install and maintain. Its small size also makes it perfect for residential and commercial installations with limited space.
4. Compatible with Battery Storage: The inverter is compatible with battery storage systems, which means that excess solar energy can be stored and used later when needed. This can help reduce reliance on the grid and increase energy security in case of power outages.
5. Online Monitoring: The inverter comes with online monitoring software that allows homeowners and businesses to track the performance of their solar system in real-time. This helps them to identify any issues and optimize energy production.
Product Specification
Model |
JS 8K-SPLVES1-EU |
V max PV(V dc)(absolute Max.) |
500 |
ISC PV(absolute Max.)(A) |
34/34 |
Max.PV input current/strings(A) |
26/26 |
Number MPP trackers/Number input strings |
2/2 |
MPPT voltage range (VDC) |
125-500 |
VDC range @full power(VDC) |
240-425 |
Power PV Max(kW) |
11.2 |
AC Grid(input and output) | |
Normal AC Voltage(VAC)/Frequency(Hz) |
230-50 |
Normal AC Current(A)/nt.input/output current(A) |
39.2/39.2 |
nt.input/output Power(kW)/nt.Apparent Power(KVA) |
9/9 |
Power factor(adjustable) |
1.0(-0.8 ~ +0.8) |
AC Load output(standalone) | |
Normal Voltage(VAC)/Frequency(Hz) |
230/50 |
Nominal Current(A) |
39 |
nt.Power(kW) |
9 |
nt.Apparent Power(KVA) |
9 |
Power factor(adjustable) |
1.0(-0.8 ~ +0.8) |
Efficiency | |
Max.Efficiency |
97.60% |
Euro Efficiency |
97.00% |
MPPT Efficiency |
99.90% |
Protection | |
PV Input Lightning Protection/Anti-is landing Protection |
Integrated |
DC circuit breaker/PV String Input Reverse Polarity Protection |
Integrated |
Insulation Resist or Detection/Residual Current Monitoring Unit |
Integrated |
Output Over Current Protection/Output Shorted Protection |
Integrated |
Output Over Voltage Protection |
Integrated |
Surge protection |
DC Type ll/AC Type ll |
Certifications and Standards | |
Grid Regulation |
IEC61683,IEC62116,IEC61727 |
Safety Regulation |
IEC62109-1,IEC62109-2 |
EMC |
EN61000-6-1,EN61000-6-3 |
Others | |
Ingress protection(IP) |
IP65 |
Protective class |
Class I |
Temperature(℃) |
-25℃to+60℃(Derating45℃) |
Overvoltage category |
OVCII(AC Main),OVCII(PV) |
