ZIPO metal seated or soft seated butterfly valve
Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672
Before consultation or purchase, please inform us of accurate parameters such as size, pressure, connection mode, operation mode and main material. Thanks

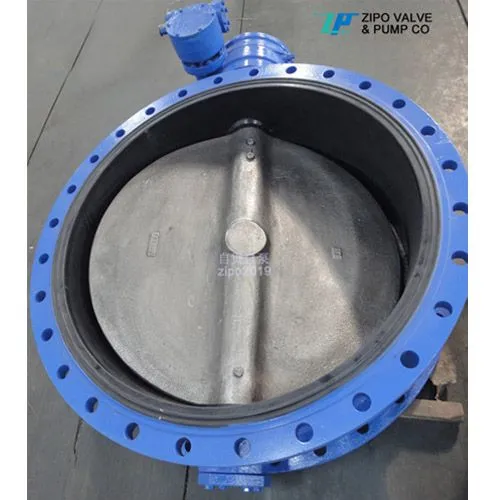

D341X series worm gear flange butterfly valve is suitable for metallurgy, chemical power, municipal engineering and waterworks, etc. The soft seal butterfly valve can cut off the fluid and regulate the medium flow.
Features: the butterfly valve has novel design structure, small overall size and light weight. The two-way sealing performance is excellent and the torque value is small. The flow characteristics tend to be straight line and the regulation performance is good. Flange connection installation is convenient, either vertical or horizontal installation .The diversity of sealing materials can be selected by users. The valve can be used as vent valve at the pipe end with reliable performance. The valve seat sealing ring and the valve body are organically combined to make the valve have a long service life.
Working principle: rotate the valve stem by hand wheel on the gearbox of butterfly valve, the butterfly disc is driven to rotate freely within 90 degrees to make butterfly valve open or close, so as to connect or cut off the medium.
Performance Specification for D41X or D341X butterfly valves:
Nominal pressure: PN1.0MPa or PN1.6MPa; Nominal diameter: DN50-DN 1200
Applicable medium: water, oil and non corrosive medium;
Applicable temperature: - 29 ~ 120 ℃
Main Material: gray cast iron, nitrile rubber.

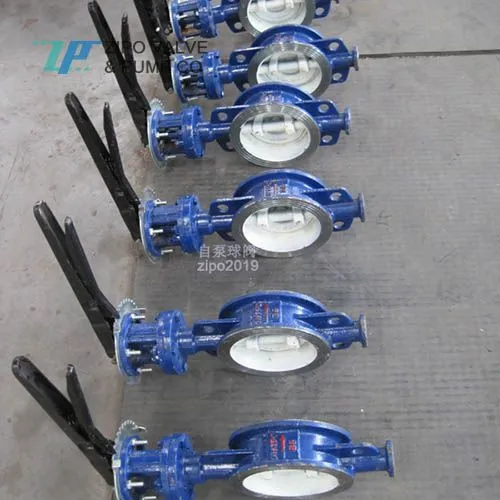

Other common flange butterfly valve models: D41X rubber seal flange butterfly valve, D41F fluoro plastic sealing flange butterfly valve, D41H stainless steel Cr13 hard sealing flange butterfly valve, D41W hard sealing butterfly valve body, D41Y hard alloy hard sealing flange butterfly valve;
Valve body material: ductile iron, cast steel, stainless steel, carbon steel.
Models of flange center line butterfly valve: D41X, D41F, D41H, D41W, and D41Y.
Models of flange single eccentric butterfly valve: D40X, D40F, D40H, D40W, D40Y
Models of flange double eccentric butterfly valve: D42X, D42F, D42H, D42W, D42Y
Models of flange triple eccentric butterfly valve: D43X, D43F, D43H, D43W, D43Y
Models of clamp type (lug type) center line butterfly valve: D71X, D71F, D71H, D71W, D71Y
Models of wafer type (lug type) single eccentric butterfly valve: D70X, D70F, D70H, D70W, D70Y
Models of double eccentric butterfly valve: D72S, D72F, D72H, D72W, D72Y
Model of clamp type (lug type) triple eccentric butterfly valve: D73X, D73F, D73H, D73W, D73Y
Models of welded center line butterfly valve: D61X, D61F, D61H, D61W, D61Y
Models of welded single eccentric butterfly valve: D60X, D60F, D60H, D60W, D60Y
Models of welded double eccentric butterfly valve: D62X, D62F, D62H, D62W, D62Y
Models of welded triple eccentric butterfly valve: D63X, D63F, D63H, D63W, D63Y
Sealing mode: soft sealing or hard sealing
Operation mode: Lever, worm gear, electric actuator, pneumatic actuator, hydraulic actuator, gas over oil actuator.
Manufacturer: ZIPO VALVE & PUMP CO., LTD
