ZIPO ZIS or ZIR horizontal single stage single suction centrifugal pump clean water pump
- 10000 Piece / Pieces per Month
- Shanghai Seaport
- T/T L/C Cash Other
- 25 days
- Emergency shut down pneumatic operated ball valve
- Hard alloy and stainless steel cartridge mechanical seal with single sealing surface or double sealing surface
- ZSMS Spring loaded mechanical seals for pumps ZIS or ZDLF or ZISG or ZIH or ZN
- ZIPO stainless steel outdoor type control cabinet ZP-CTC-SS-45KW
- API 6D Swing Check Valve
- API 602 Forge steel wedge gate valve
Product Details
Brand Name: | ZIPO | Place of Origin: | China | Model Number: | ZIS100-65-315C |
Application: | Other, Water | Fuel: | Other, Clean Water | Power: | Electric |
Usage: | Other, water | Theory: | Centrifugal Pump | Standard or Nonstandard: | Standard |
Structure: | Other, Horizontal | Pressure: | Low Pressure |
Product Description

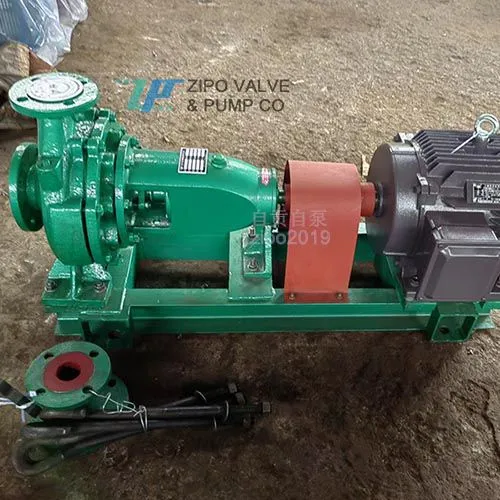

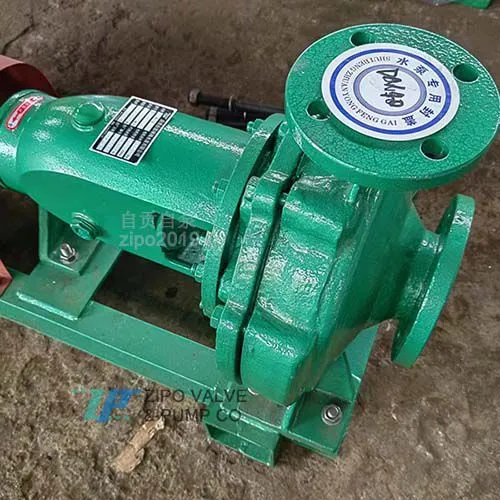

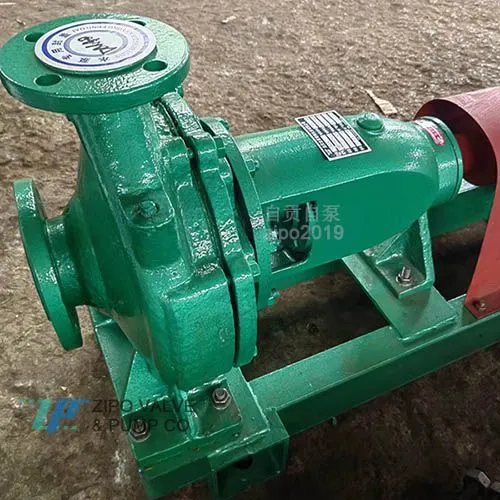

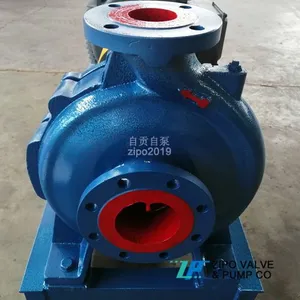

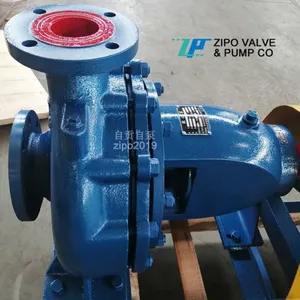

ZIPO ZIS or ZIR horizontal single stage single suction centrifugal pump clean water pump circulating pump.
Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672
Please inform us of the accurate flow, head, pipe loss, medium specific gravity, motor power and other parameters, before consulting or purchasing the product. Thanks!
ZIS and ZIR series pumps are single-stage single suction centrifugal pumps, with horizontal axial suction. All technical indicators meet the national standards. The product has high efficiency, reasonable structure and reliable use. The product is suitable for conveying clear water or other media with similar properties. It is an ideal product for pumping water and urban water supply and drainage in factories, mines, agricultural drainage and irrigation sites.
The medium temperature conveyed by ZIS series products shall not be higher than 80 ℃, and the suction pressure of the pump shall not be higher than 0.3MPa (3kg / cm3);
The transmission medium temperature of ZIR series products is lower than 150 ℃, and the suction pressure of the pump is lower than 0.8MPa (8kg / cm3).
Performance range of ZIS and ZIR series pumps (based on design points): rotating speed 1450r / min, inlet diameter 50-200mm, lift 5-12.5m, power 0.55-110kw
The common models of ZIS clean water pump are:
ZIS50-32-125, ZIS50-32-160, ZIS50-32-200, ZIS50-32-250, ZIS65-50-125, ZIS65-50-160, ZIS65-40-200, ZIS65-40-250, ZIS65-40-315, ZIS80-65-125, ZIS80-65-160, ZIS80-50-200, ZIS80-50-250, ZIS80-50-315, ZIS100-80-125, ZIS100-80-160, ZIS100-65-200, ZIS100-65-250, ZIS100-65-315, ZIS125-100-200, ZIS125-100-250,ZIS125-100-315,ZIS125-100-400,ZIS150-125-250, ZIS150-125-315, ZIS150-125-400, ZIS200-200-200, ZIS200-150-250, ZIS200-150-315, ZIS200-150-400
Manufacturer: ZIPO VALVE & PUMP CO., LTD
