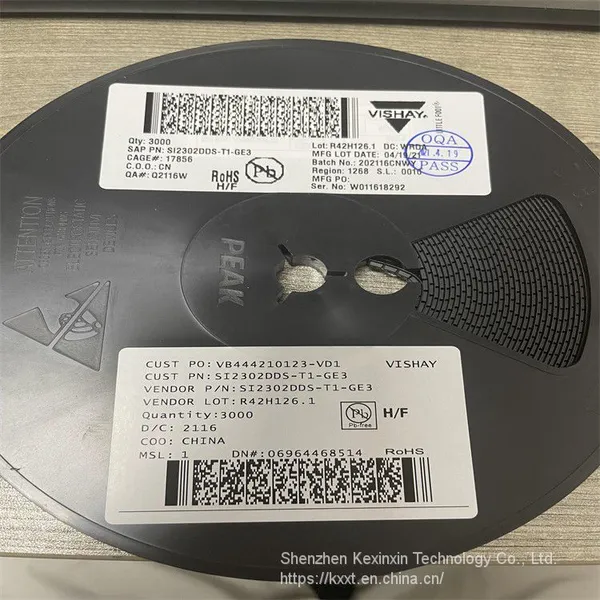

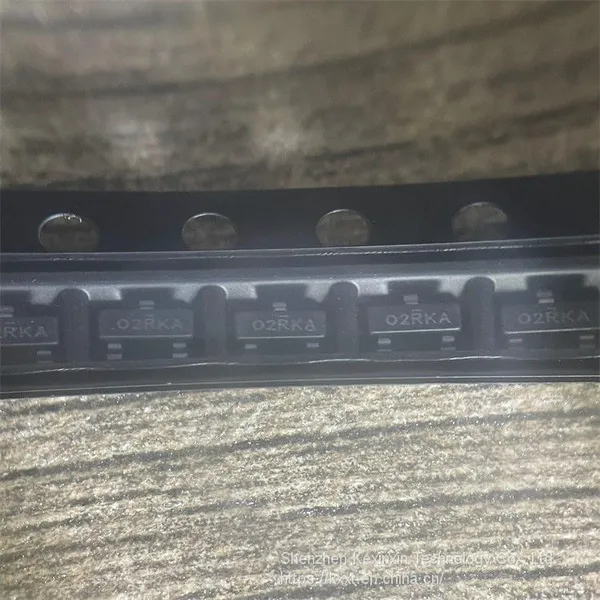

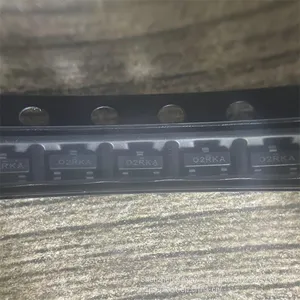

Help CenterSI2302DDS-T1-GE3 Vishay Semiconductors MOSFET 20V Vds 8V Vgs SOT-23
Related Products
-
SI2306BDS-T1-GE3 Vishay / Siliconix MOSFET 30V 4.0A 1.25W 47mohm @ 4.5VUS$ 0.2 - 0.5MOQ: 10 Pieces -
SI2333DDS-T1-GE3 Vishay Semiconductors MOSFET -12V Vds 8V Vgs SOT-23US$ 0.45 - 0.47MOQ: 10 Pieces
-
SI2337DS-T1-E3 Vishay Semiconductors MOSFET -80V Vds 20V Vgs SOT-23US$ 0.36 - 1MOQ: 1 Piece
-
SI7997DP-T1-GE3 Vishay Semiconductors MOSFET -30V Vds 20V Vgs PowerPAK SO-8US$ 0.9 - 2MOQ: 1 Piece
-
SSM3J332R,LF MOSFET SM Sig P-CH MOS 12V VGSS -6A -30VDSS ToshibaUS$ 0.067 - 0.33MOQ: 10 Pieces
Mfr. #:
SI2302DDS-T1-GE3
Manufacturer: Vishay
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: SMD/SMT
Package / Case: SOT-23-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 20 V
Id - Continuous Drain Current: 2.9 A
Rds On - Drain-Source Resistance: 57 mOhms
Vgs - Gate-Source Voltage: - 8 V, + 8 V
Vgs th - Gate-Source Threshold Voltage: 850 mV
Qg - Gate Charge: 3.5 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 860 mW
Channel Mode: Enhancement
Tradename: TrenchFET
Series: SI2
Packaging: Reel
Packaging: Cut Tape
Packaging: kxxReel
Brand: Vishay Semiconductors
Configuration: Single
Fall Time: 7 ns
Product Type: MOSFET
Rise Time: 7 ns
factory pack quantiy: 3000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 30 ns
Typical Turn-On Delay Time: 8 ns
Part # Aliases: SI2302DDS-T1-BE3
Unit Weight: 0.000282 oz
