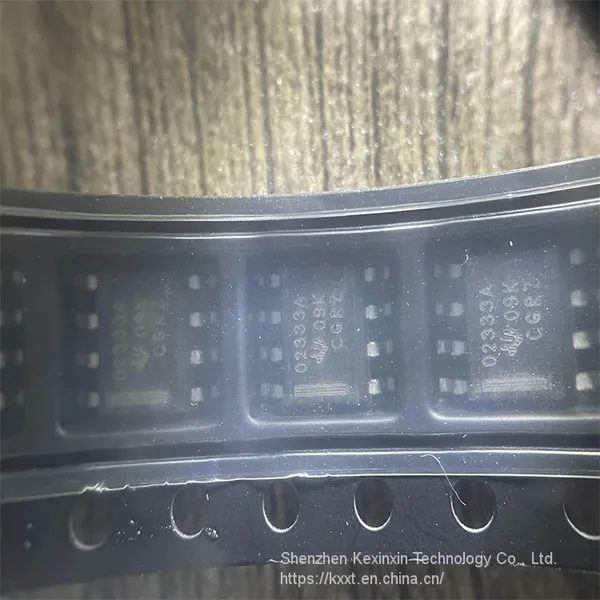

OPA2333AIDR Texas Instruments Operational Amplifiers - Op Amps 1.8V 17uA 2uV MicroPOWER CMOS

Mfr. #:

OPA2333AIDR

Manufacturer: Texas Instruments

Product Category: Operational Amplifiers - Op Amps

RoHS: Details

Mounting Style: SMD/SMT

Package / Case: SOIC-8

Number of Channels: 2 Channel

Supply Voltage - Max: 5.5 V

GBP - Gain Bandwidth Product: 350 kHz

Output Current per Channel: 5 mA

SR - Slew Rate: 160 mV/us

Vos - Input Offset Voltage: 10 uV

Supply Voltage - Min: 1.8 V

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 125 C

Ib - Input Bias Current: 200 pA

Operating Supply Current: 17 uA

Shutdown: No Shutdown

CMRR - Common Mode Rejection Ratio: 130 dB

en - Input Voltage Noise Density: 65 nV/sqrt Hz

Series: OPA2333

Packaging: Reel

Packaging: Cut Tape

Packaging: KXXReel

Amplifier Type: Micropower Amplifier

Brand: Texas Instruments

Features: EMI Hardened, Small Size, Zero Drift

Height: 1.58 mm

In - Input Noise Current Density: 0.1 pA/sqrt Hz

Input Type: Rail-to-Rail

Length: 4.9 mm

Maximum Dual Supply Voltage: +/- 2.75 V

Minimum Dual Supply Voltage: +/- 900 mV

Operating Supply Voltage: 1.8 V to 5.5 V, +/- 900 mV to +/- 2.75 V

Output Type: Rail-to-Rail

Product: Operational Amplifiers

Product Type: Op Amps - Operational Amplifiers

PSRR - Power Supply Rejection Ratio: 120 dB

factory pack quantiy: 2500

Subcategory: Amplifier ICs

Supply Type: Single, Dual

Technology: CMOS

Vcm - Common Mode Voltage: Negative Rail - 0.1 V to Positive Rail + 0.1 V

Voltage Gain dB: 130 dB

Width: 3.91 mm

Unit Weight: 0.002677 oz
