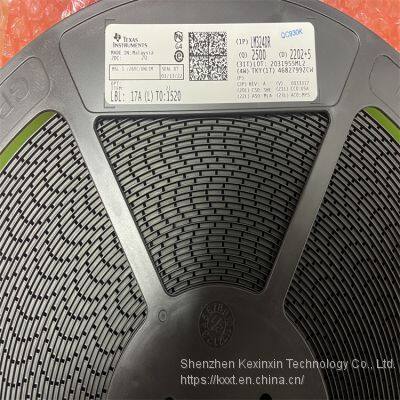

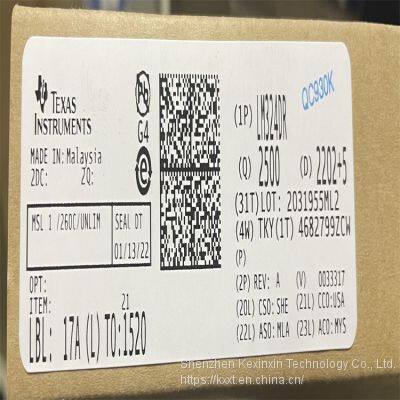

Help CenterLM324DR Texas Instruments Operational Amplifiers - Op Amps Quad GP Op Amp
Related Products
-
LM324DR Operational Amplifiers - Op Amps Texas InstrumentsUS$ 0.106 - 0.38MOQ: 10 Pieces -
OPA2333AIDR Texas Instruments Operational Amplifiers - Op Amps 1.8V 17uA 2uV MicroPOWER CMOSUS$ 1.9 - 4MOQ: 1 Piece
-
LM358ADT STMicroelectronics Operational Amplifiers - Op Amps Dual Low PowerUS$ 0.07 - 0.38MOQ: 10 Pieces
-
LM2596SX-ADJ/NOPB Texas Instruments Switching Voltage Regulators 150 KHZ 3A STEP-DOWN VLTG REGUS$ 0.5 - 6.5MOQ: 1 Piece
-
LM2767M5X/NOPB Texas Instruments Switching Voltage Regulators Switched Capacitor Vtg CnvtrUS$ 0.2 - 0.7MOQ: 10 Pieces
Mfr. #:
LM324DR
Manufacturer: Texas Instruments
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: SOIC-14
Number of Channels: 4 Channel
Supply Voltage - Max: 32 V
GBP - Gain Bandwidth Product: 1.2 MHz
Output Current per Channel: 20 mA
SR - Slew Rate: 500 mV/us
Vos - Input Offset Voltage: 7 mV
Supply Voltage - Min: 3 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Ib - Input Bias Current: 250 nA
Operating Supply Current: 1.4 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 80 dB
en - Input Voltage Noise Density: 35 nV/sqrt Hz
Series: LM324
Packaging: Reel
Packaging: Cut Tape
Packaging: KXXReel
Amplifier Type: High Gain Amplifier
Brand: Texas Instruments
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
Features: Standard Amps
Height: 1.58 mm
Input Type: Rail-to-Rail
Length: 8.65 mm
Maximum Dual Supply Voltage: +/- 16 V
Minimum Dual Supply Voltage: +/- 1.5 V
Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers
Factory Pack Quantity: 2500
Subcategory: Amplifier ICs
Supply Type: Single, Dual
Technology: Bipolar
Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1.5 V
Voltage Gain dB: 100 dB
Width: 3.91 mm
Unit Weight: 0.009171 oz
Send Inquiry to This Supplier
