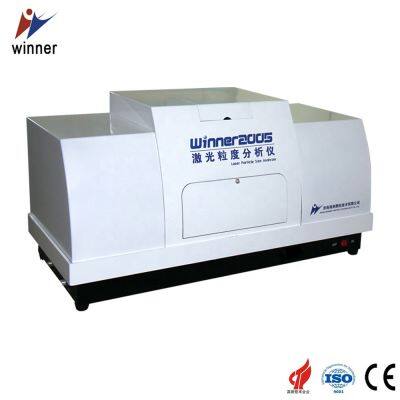

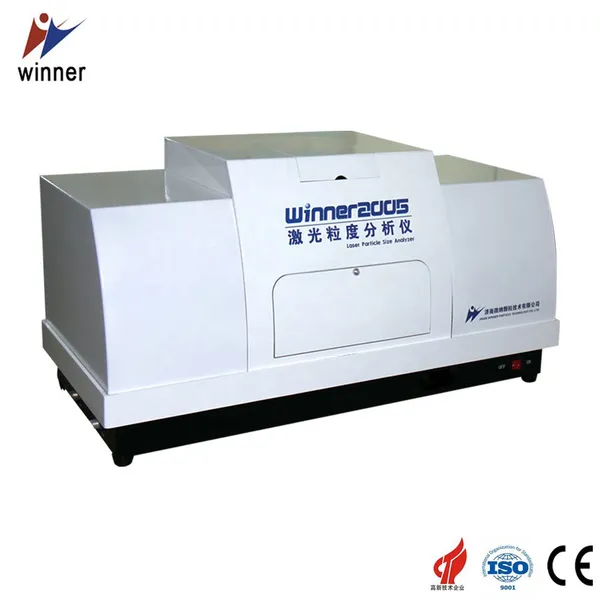

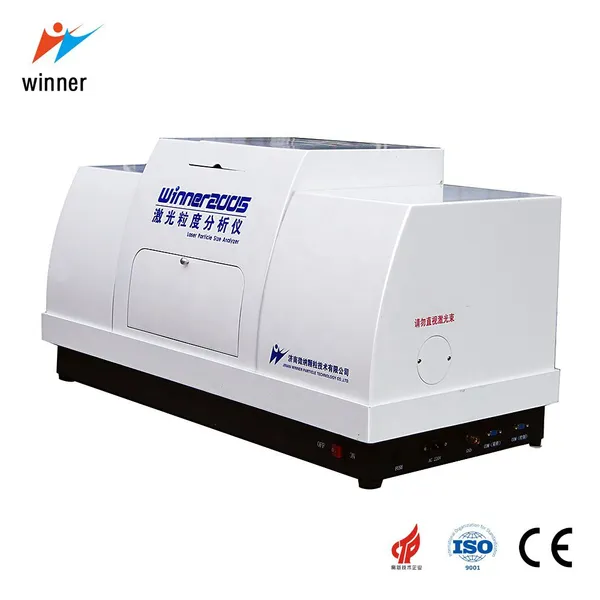

Winner 2005B fully automatic 0.01-1000um laser particle sizer for solid powder and emulsion particle size distribution

Name: Winner 2005B fully automatic 0.01-1000um laser particle sizer for solid powder and emulsion particle size distribution
Brand: Winner
Availability: InStock

FOB Price

US$ 8998 - 18998 / Set

1 Set(Min. Order)

Port Qingdao/kangkong
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Winner		Place of Origin	China
Model Number	Winner 2005B

Product Description

Winner2005B intelligent full automatic laser diffraction particle size analyzer with MIE scattering theory to precisely test the particle size distribution from 0.01/0.1μm to 1000μm. It adopts dual laser beam and built-in sample preparation system, Intelligent operation, very simple to use for engineer, offer accurate and reliable data,built-in side wide-angle detector, make sure get 0.01 micron particles scattering angles.

Main Features

 (1) Optical path: The laser particle size analyzer adopts the convergent light Fourier transform optical path, and the measurement range extends from 0.01μm-1000μm. (2) The laser particle size analyzer is equipped with an intelligent fully automatic operation mode to achieve one-click testing, automatic water replenishment, ultrasonic dispersion, circulation, and drainage, which not only reduces the workload, but also eliminates human error and has better repeatability. (3) The laser particle size analyzer is equipped with an automatic optical path alignment system. The precision of the four hybrid stepper motors in the optical component automation system has a microscopic precision of 0.01μm, which keeps the instrument's optical path in the best state, eliminating the trouble and difficulty of manually adjusting the optical path, and also enhances accuracy and stability. Test Results. (4) The laser particle size analyzer is equipped with a fully built-in sample dispersion system. Automatic wet dispersion system, SOP realizes one-key operation. It integrates mechanical stirring, ultrasonic dispersion, and circulation paths to ensure uniform dispersion and distribution of particles, avoids undesirable phenomena such as uneven particle distribution and large particle deposition due to the long tube length of the external dispersion system, and ensures the representativeness of the product. Test Results. (5) Analysis software: The patented technology of unconstrained free fitting is used to enable particle analysis without any functional restrictions and truly reflect the particle size distribution. (6) The high-sensitivity photodetector collects all particle scattering signals to ensure good accuracy. (7) Output parameters: (D50, D03, D06, D10, D16, D25, D75, D84, D90, D97, D98, set any value, S/V, D[3,2], D[4,3 ] )

Specification

Model Name			Winner2005B
Standard			ISO13320-1:1999，GB/T19077.1-2008，Q/0100JWN001-2013
Principle			MIE Scattering Principle
Size range			0.1μm-1000μm
Photodetectos			90pcs/87 pcs
Accuracy			≤0.5% (Deviation of D50 on national standard sample)
Repeatability			≤0.5% (Deviation of D50 on national standard sample)
Laser			Semi conductor Laser λ= 636.5nm, p>2mW Service time>25000 hour
Wet dispersion		Ultrasonic	Frequency:40KHz Power:35W, Time: ≥1S
		Agitator	Revolutions Speed: 0-3000RPM (Adjustable)
		Circulation	Rated Flow:8L/min Rated Power:10W
		Sample tank	Volume: 350mL
Operation mode			Manual and Full automatic
Optical alignment system			Full automatic optical path alignment system
Software function	Analysis mode		Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc.
	Statistic Method		Volume Distribution, Quantity Distribution
	Statistic Comparison		Several Testing Results of samples Different batches of samples testing result, Samples before and after processing, Test result of samples in different time.
	User-defined Analysis		Figure out percentage according to the particle size Figure out particle size according to the percentage Figure out percentage according to the particle size range Meet demands of representation of particle test in different industries
	Test Report		Word, Excel,Photo( Bmp), Text etc
	Multiple-language Support		Multiple language Support
	Intelligent operation		Automatically control water inflow, dispersion,test and analysis.Better Repeatability after remove human-factor
Report Items			Particle size distribution table&graph, average diameter, Median diameter, SSA, etc.
Testing speed			<2min/time (including all the procedures)
Running temperature			15 ℃ -35 ℃
Humidity			<85%
Outer dimension			L85cmW39cmH45cm
Net weight			40Kg

Principle

Test Analysis View

Application

Winner2005A is widely used for cement, ceramic, medicine, dope, dye, padding, chemical products, catalyst, braize, dust, additive,pesticide, explosive, graphite, photosensitive material, fuel, metal and nonmetal powder, calcium carbonate, kaolin and other powder materials.

Company Profile

Jinan Weiner Particle Instrument Co., Ltd. has been specialized in particle size analyzers for more than 30 years since it undertook the development of particle size analyzers, a national scientific and technological project in 1985. We are the first origin manufacturer in China to produce nanoparticle size analyzers. Our particle size analyzers will give you a better understanding of your materials and save you time and costs. Reliable data enables scientists, researchers and engineers to improve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality and optimize yields. We work with the world's leading businesses, universities and research institutions. They value not only the solutions we provide, but also our professional knowledge, cooperation philosophy and integrity. Currently, we have laser particle size analyzers, image particle size analyzers, spray particle size analyzers, particle counters and nanoparticle size analyzers, etc. At the same time, we have created more than 30 China's first particle size patented technologies! For example, there are utility model patents for three-dimensional automatic centering systems, invention patents for nanoscale particle detection devices, and utility model patents for drop-type particle image online monitoring equipment. We are committed to providing you with the best particle size analysis solutions. Your satisfaction is our eternal goal!

Exhibition

Our Customers

Our Team

Our goal is to provide super quality and competitive price laser particle size analyzer for clients all over the world!
We created more than 30 first particle size analysis technology in China!

Our Partners

Quality Assurance

Strictly conforming to ISO9001-2000 quality management system.2. Strict control from purchasing materials, process inspection to final particle size distribution test.3. QC department to execute quality control regulations.
Only qualified components will be assembled and total laser particle size analyzer must be inspected     completely before sale.
Laser particle size analyzer will be processed preventing -shake test before delivery.

After Sale Service
1. Provide operation demonstration video. 2. Provide free installation and training services. 3. The warranty period is 1 year after receipt of the goods, and technical support is provided for life. 4. If repair parts are provided, we will provide parts at favorable prices, only charge cost prices, and provide long-term maintenance.
