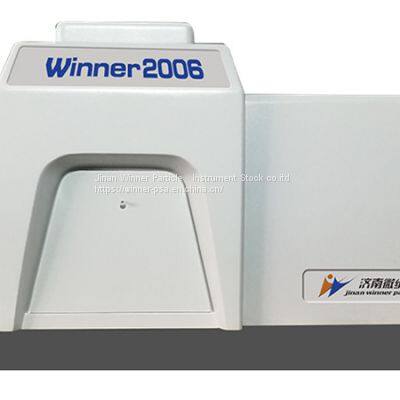

Help CenterWinner 2006 Laboratory Wet Test Method Automatic Powder Laser Particle Size Analyzer
Related Products
-
Solid Powder or Emulsion Particle Wet Process High Performance Winner 2008 Laser Particle Size AnalyzerUS$ 1998 - 28578MOQ: 1 Set -
Wet High-performance Large-range Laser Particle Size Analyzer With a Detection Angle of 0.0155-141 Degrees Winner 2009US$ 1998 - 28578MOQ: 1 Set
-
Winner 2000B Gold Product Analyzer Wet Dispersion Laser Particle Size AnalyzerUS$ 998 - 12000MOQ: 1 Set
-
Winner 2005B Fully Automatic 0.01-1000um Laser Particle Sizer for Solid Powder and Emulsion Particle Size DistributionUS$ 8998 - 18998MOQ: 1 Set
-
Winner 2000E Gold Product Analyzer Wet Dispersion Laser Particle Size AnalyzerUS$ 998 - 12000MOQ: 1 Set
Product Description
Winner2006A/B intelligent full automatic laser diffraction particle size analyzer with MIE scattering theory to precisely test the particle size distribution from 0.01μm to 1000μm. It adopts dual laser beam and built-in sample preparation system, Intelligent operation, very simple to use for engineer, offer accurate and reliable data. It enables you understand materials well, such as abrasives,adhesives, agrochemical,barite, Batteries, Bentonite, Boron Carbide, Brucite, Bubble,Calcite, Calcium Carbonate, Carbon Black, Catalysts, Cement, Ceramics, Chemicals, Clay, Coal, Coatings, Corundum, Cosmetics, Diamond Powder, Dolomite,Diatomite,Emulsion, Environmental, Explosives, Ferrite, Flour, Fluorescent, Fluorite, Food & Beverage, Food Additive,Graphite,Grinding, Inks, Kaolin, Medicine, Metal Powder, Mica, Milling, Minerals,Oxides,Paints, Paper, Petrochemical, Pharmaceuticals, Pigments, Plaster, Plastics, Polymers,Quartz,Refractory, Resins, Silica, slurry, Soil Sediments,Starch,Sulfur,Synthetics,Talc,Toners, Tourmaline,Wollastonite, Zeolite, Zirconium Silicate etc etc. Industry.
Main Features

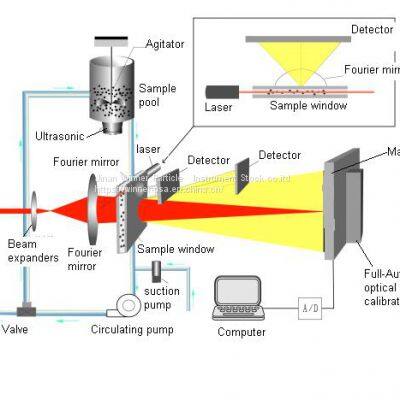

(1)Unique Converging Light Fourier Transform Light Path, For better to test sub-micron particles, Adopt orthogonal double laserbeam patented technology, measure range expanded from 0.01/0.1μm-1000μm.
(2)Intelligent operation mode realize one key test, automatically supply-water,ultrasonic dispersion, circulate and drain off water, so it not only could decrease workload, but also get better repeatability after remove human-factors errors.
(3) Automatic optical light alignment system is composed of precise four phase hybrid stepper motor, Its inching precision is reach to micron level,make light path be always in a good state.
(4)Liquid sample dispersion/preparation system: Full built-in setting mechanical stirring, ultrasonic dispersion, and circulation path in one, Big power-circulating pump and Optimization design of pipeline,effectively prevent large particle sediment.

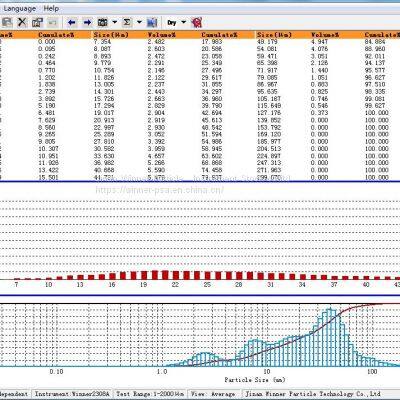

(5)Software support: Original patent unconstrained free fitting technology make particle analysis not be restricted by any functions, truly reflect particles distribution.
(6) Output parameters:(D50, D03, D06, D10, D16, D25, D75, D84, D90, D97,D98,set any value, S/V, D[3,2],D[4,3] )
Specification
Company Profile
Jinan Winner Particle Instrument Co., Ltd. have have been specialized in particle size analyzer for more than 30 years, since we undertake National Science Project-particle size analyzer development in 1985. We are the 1st manufacturer to produce Nano-particle size analyzer in China. Our particle size analyzer will enable you understand materials well, and save your time and cost. Reliable data enables scientists, researchers and engineers to evolve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality, and optimize output. By now, We have Laser Particle size analyzer, Image particle size analyzer, Spray particle size analyzer, particles counter and Nano-particles size analyzer and so on. We are dedicated to offer you the best particle size analysis solution. Your satisfaction is our eternal target!
Quality Assurance
1. Strictly conforming to ISO9001-2000 quality management system.
2. Strict control from purchasing materials, process inspection to final particle size distribution test.
3. QC department to execute quality control regulations.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
After Sale Service
1.Operation demo video CD will be offered.
2. Offer free-training service.
3. The quality assurance date is 1 year since finishing payment, Technology support will be provided for life. And after that, we will collect the cost if provide repair accessories.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.
FAQ
Purchase laser particle size analyzer need know points:
(1) What materials need test?
If suspension/emulsion, must choose liquid dispersion particle size analyzer, and some materials are also reacted with water, so need liquid dispersion particle size analyzer also. Generally, cement, metal powders and pharamcy materials need dry dispersion model particle size analzyer.
By now, Based on MIE scattering, laser particle size analyzer can test the particle range is 0.01um-2000um.
If materials range is not so wide, for example, 10um-20um, smaller range of particle size distributon choose closer range model will be preciser, no need to buy large range model.
For liquid model, in order that sample can disperse well and circualte in the laser particle size analyzer, generally we need use water, alochol or organic solvent as dispersion media.For dry dispersion model, just use compressed air as dispersion media.In the current market, Dry laser particle size analyzer cost is higher than liquid dispersion models, so if can test well, liquid model is better.
