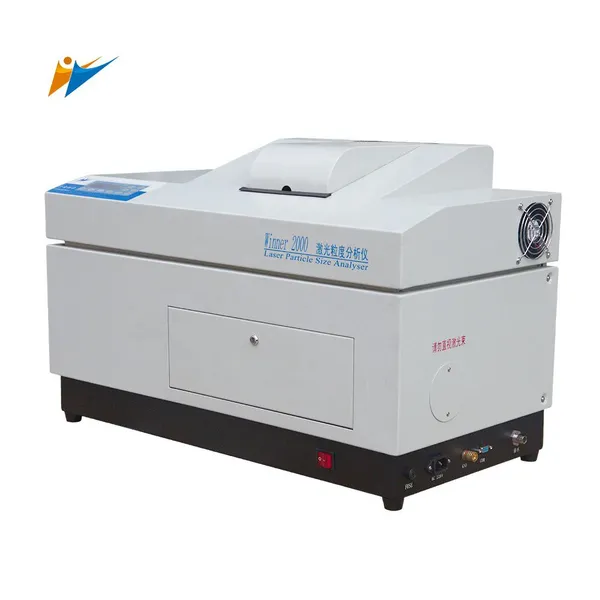

Winner 2000B Gold Product Analyzer Wet Dispersion Laser Particle Size Analyzer

Name: Winner 2000B Gold Product Analyzer Wet Dispersion Laser Particle Size Analyzer
Brand: Winner
Availability: InStock

FOB Price

USD $998 - $12000 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Qingdao/kangkong
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Winner		Place of Origin	China
Model Number	Winner 2000B

Product Description

As high efficient-cost model, Winner 2000B laser particle size analyzer with wet dispersion is most economical and popular since launched, After more than ten years of tests and numerous technical improvements, the structure and software are very mature,stable performance, It could meet industrial testing general requirements.

Main Features

(1)The laser particle size analyzer adopts Mie Scattering Theory

(2)High efficient-cost model, semi automatic key-operation.

(3)The laser particle size analyzer adopts full built-in integrated dispersion system, contains Ultrasonic stirring, ultrasonic dispersion and cycling system, prevent large particle sediment in the pipe.
(4) The laser particle size analyzer adopts unique unconstrained free fitting technology, make particle analysis not restricted by any function, truly reflect particles distribution, ensure the good accuracy.

(5)The laser particle size analyzer adopts converging light Fourier transform light path, efficiently improve resolution ratio of sub-micron particles.

(6)The laser particle size analyzer adopts main& auxiliary detectors are log-shaped, guarantee the effective capture of the scattered signal.

Specification

Model Name		Winner2000B
Standard		ISO13320-1:1999, GB/T19077.1-2008, Q/JWN001-2009
Principle		MIE scattering principle
Measuring Range			0.1-40μm/0.6-120μm/1-300μm
Channels Number			76*3 pcs
Accuracy error		<0.5% (National Standard Sample D50 )
Repeatability error		<0.5% (National Standard Sample D50 )
Light source		High performance He-Ne Laser (λ= 632.8nm, P>2MW) Lifetime>25000hour
Dispersion Method	Ultrasonic	Frequency:40KHz Power:35W, Time: ≥1S
	Stir	Revolutions Speed: 0-3000RPM (Adjustable)
	Circulate	Rated Flow:8L/min Rated Power:10W
	Sample Pool	Volume:350mL
	Micro- Sample Pool	Volume: 10mL ( Available)
Operation Mode		Full automatic and manual control, freely choose
Output parameter		D10,D50,D90,D100,S/V referent parameters
Optical Calibration System		Full automatic
Test Speed		<2mins for each time
Volume		L68cm×W35cm×H44cm
Net Weight		21Kg

Principle

Test Operation Interface

Demo Test Report

Application

Winner2000B is widely used for cement, ceramic, medicine, dope, dye, padding, chemical products, catalyst, braize, dust, additive,pesticide, explosive, graphite, photosensitive material, fuel, metal and nonmetal powder, calcium carbonate, kaolin and other powder materials.
