Description:

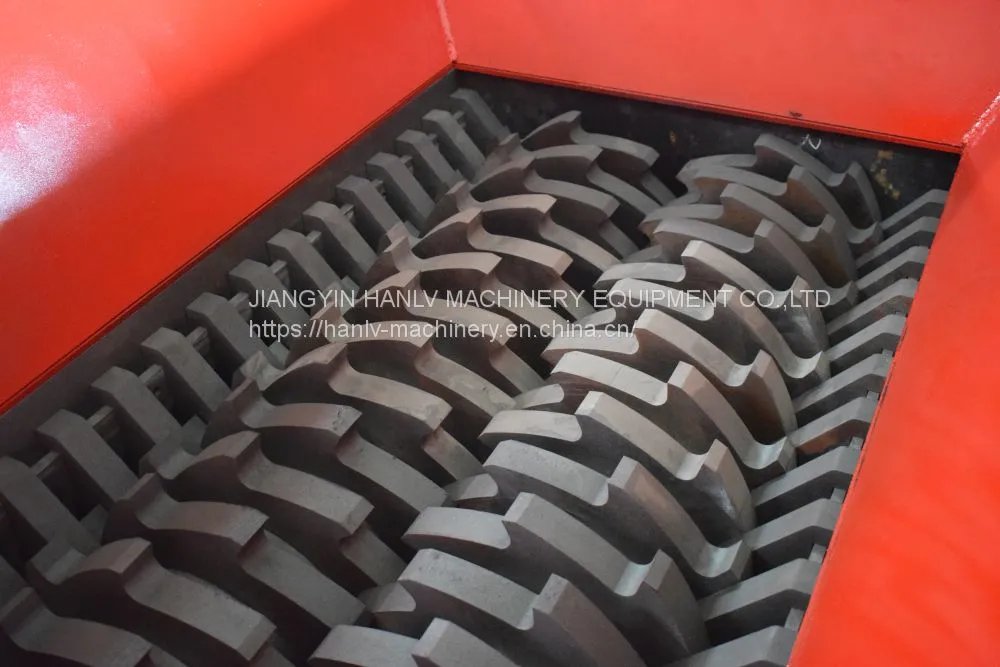

The wood shredder machine uses two sets of cutter disks made of fine alloy steel to cut each other so that all kinds of soft and hard materials are crushed.The main shredding materials include plastic package barrel,rubber wheel, basket materials, huge rolls of films,huge batch of package plastic films,huge batch of package bags,rolled films,paper,fiber,wood,etc.
Technical parameter:
Model |
Dimension (mm) |
Shredder chamber dimension(mm) |
Blade diameter (mm) |
Blade thickness (mm) |
Fixed blade (pcs) |
Power (kw) |
Weight (kg) |
HL-500 |
2800×1300×1850 |
500×480 |
200 |
20 |
24 |
11×2 |
2200 |
HL-800 |
3000×1300×1850 |
800×480 |
200 |
20 |
40 |
22×2 |
2500 |
HL-1000 |
3300×1900×2200 |
1000×690 |
300 |
40 |
24 |
30×2 |
5200 |
HL-1200 |
3600×2000×2200 |
1200×690 |
300 |
40 |
30 |
37×2 |
6400 |
HL-1500 |
4180×2100×2400 |
1500×850 |
550 |
50/75 |
30/20 |
45×2 |
9000 |
HL-1800 |
5800×2400×3300 |
1800×1206 |
550 |
50/75 |
36/24 |
55×2 |
13600 |
HL-2000 |
6400×2700×3500 |
2000×1490 |
600 |
50/75 |
40/26 |
90×2 |
20100 |
HL-2500 |
7500×3200×3800 |
2500×1800 |
600 |
75/100 |
32/24 |
110×2 |
25000 |
HL-3000 |
8600×3500×4000 |
3000×1800 |
600 |
75/100 |
40/30 |
132×2 |
31000 |
Features:
1. This machine is high in productivity,low in energy consumption,low in noise.
2. The outer frame is made of super thick plates with mixed structure after intensified processing,equipped with powerful hexagonal rotation axis with wide angles and huge-diameter inlet so that huge raw materials may be put inside and crushed.
3.The rotary cutter has unique design in terms of thickness.This kind of crushing machine is sharp and keen enough to finish shredding work efficiently.
4.With PLC control, in case that there are too many processing materials, forward/reserve operation and stop function can be activated to ensure operating security.
5.Operation is in low speed with low noise and low powder discharge during operation.

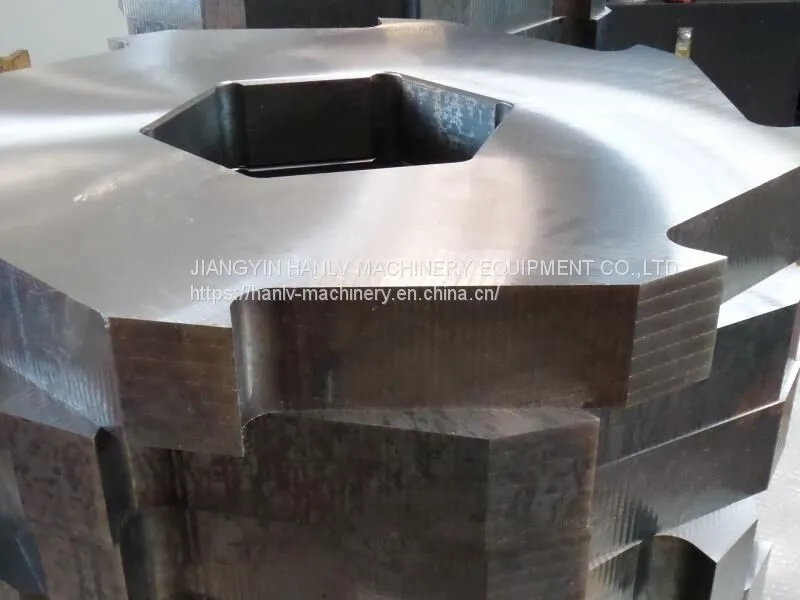

6.The blade is made of special alloy steel,which is hard and durable.
In order to have a better understanding of your needs,we need you to provide below information about your product:
1)Which kind of material you are going to deal with?
2)What are the physical characteristics of the material? Such as size,shape,thickness,solid or hollow and etc.
3)What's the producing capacity in your requests?
Please advise so we can figure out if our machines are applicable and which models will meeting with your requirement.
