1.Description:

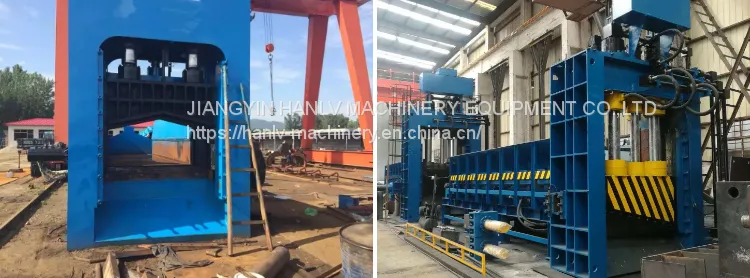

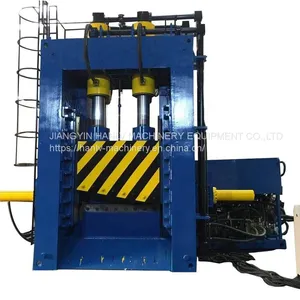

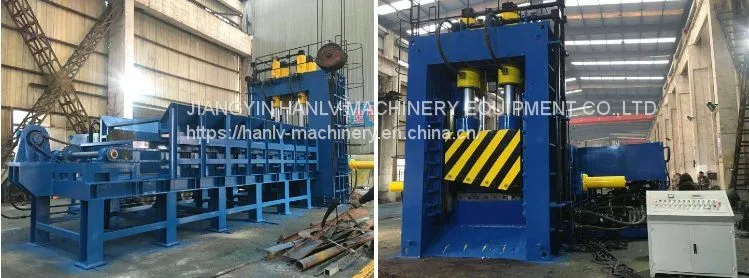

Q91 series Gantry shearing machine is a kind of equipment suitable for shearing heavy scrap steel. It is used for light and thin steel, steel bar, steel plate, nickel plate, round steel, steel pipe, scrap copper, scrap iron, light metal structural parts, stainless steel, metal block, automobile body, aluminium alloy, copper material, scrap iron, steel wire, metal block, etc. The scrap metal is cut short in cold state and processed into qualified burden. Gantry shearing machine has a wide range of applications. It can be used not only as a processing equipment for metal recovery processing units, but also as a furnace material processing equipment for foundry workshop and metal cutting processing equipment for mechanical construction industry.
2.Technical data:Model |
Max.cutting force(ton) |
Press Box Size(mm) |
Cutting Frequency(times/min) |
Motor Power(kw) |
Q91Y-4000 |
400 |
4000X2000X1100 |
3_4 |
90 |
Q91Y-5000 |
500 |
5000X2000X1200 |
3_4 |
135 |
Q91Y-6300 |
630 |
8000X2000X1200 |
3_4 |
180 |
Q91Y-8000 |
800 |
8000X2000X1200 |
3_4 |
225/270 |
Q91Y-10000 |
1000 |
8000X2000X1500 |
3_4 |
270/360 |
Q91Y-12500 |
1250 |
10000X2000X1800 |
3_4 |
360/450 |
... |
... |
... |
... |
... |
3.Features:
a. Size of press box is widen and expand which facilitate the addition of all kinds of scrap materials, and improve the treatment efficiency of scrap steel.
b, the control system adopts the international brand ,such as Siemens, Mitsubishi. Automatic control , optional wireless remote control device.
c. Automatic lubrication system and self-monitoring of lubrication process.
d. The cooling system adopts the compressor cooling mode, which occupies a small area and has a good cooling effect.
