Home > Products > Hydraulic Shear > hydraulic alligator shear for sale

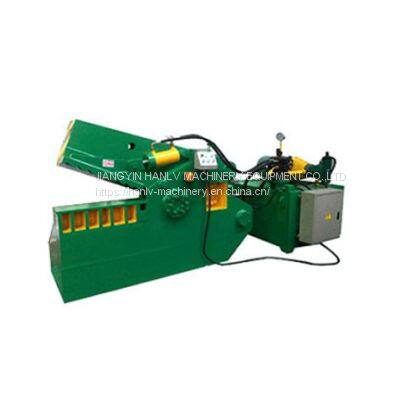

hydraulic alligator shear for sale
- 100 Piece / Pieces per Month
- SHANGHAI
- T/T L/C Credit Card Cash
- 30 days
Product Details
Brand Name: | HANLV | Place of Origin: | China | Model Number: | Q43 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1.Description:

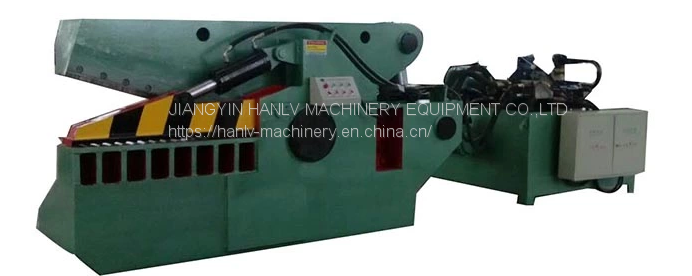

Q43 scrap metal shearing machines are applied in recycling companies,automobile dismantling plants,smelting and casting industry to cold shear all shapes of profile steels and all kinds of metals into qualified furnaces.
2.Technical dataModel | Max.cutting force(ton) | Blade length (mm) | Max.cutting size(mm) | Shearing frequency (times/min) | Motor (kw) |
Q43-63/600 | 63 | 600 | 30x30 φ35 | 8-12 | 7.5 |
Q43-63/800 | 63 | 800 | 30x30 φ35 | 8-12 | 7.5 |
Q43-100/600 | 100 | 600 | 35x35 φ40 | 8-12 | 11 |
Q43-100/800 | 100 | 800 | 35x35 φ40 | 8-12 | 11 |
Q43-120/600 | 120 | 600 | 45x45 φ50 | 8-12 | 15 |
Q43-120/800 | 120 | 800 | 45x45 φ50 | 6-10 | 15 |
Q43-160/800 | 160 | 800 | 55x55 φ55 | 6-10 | 18.5 |
Q43-200/800 | 200 | 800 | 55x55 φ63 | 6-10 | 22 |
Q43-200/1000 | 200 | 1000 | 55x55 φ63 | 6-10 | 22 |
Q43-250/1000 | 250 | 1000 | 63x63 φ70 | 6-8 | 2x15 |
Q43-250/1200 | 250 | 1200 | 63x63 φ70 | 6-8 | 2x15 |
Q43-315/1000 | 315 | 1000 | 70x70 φ80 | 6-8 | 2x18.5 |
Q43-315/1200 | 315 | 1200 | 70x70 φ80 | 6-8 | 2x18.5 |
Q43-400/1200 | 400 | 1200 | 80x80 φ90 | 5-6 | 2x22 |
Q43-400/1500 | 400 | 1500 | 80x80 φ90 | 5-6 | 2x22 |
Q43-500/1200 | 500 | 1200 | 90x90 φ100 | 4-6 | 2x22 |
Q43-500/1600 | 500 | 1600 | 90x90 φ100 | 4-6 | 2x22 |
a.Whole steel structure and vibration to eliminate internal steel . Good strength and rigidity,hydraulic-driven,stable and reliable; No fang bolts are needed for installation;
b.The blades are available on all sides and can be replaced.
c.The adjustment system can prevent the deformation of the cutter head.
d.Manual or PLC is optional.
4.Safety operation rules:
a. crocodile scrap metal shearing machine should be operated by the designated persons. Others can not be used arbitrarily without training.
b. before driving, check whether the parts are normal and whether the fasteners are solid.
c. steel, cast iron, soft metal parts, too thin pieces, work pieces of less than 100 millimeters in length, and work pieces that exceed the length of scissors are prohibited from shearing.
d. when operating, the body is not allowed to approach the transmission part and knife edge of the equipment, and the safety of the surrounding personnel should be paid attention to, so as to prevent the material from rising and hurting people. When cutting, the material should be cut near the edge of the knife as far as possible.
e.When cutting short material, hand-held work piece is prohibited. The clamp should be used.
f. when the scrap metal shearing machine operate, the operator shall not leave the post without authorization. When the work is completed or the post is temporarily left, the power supply should be cut off. At the same time, the machine should not be repaired or touched by hand, and the hand or foot is strictly prohibited to press the material in the material box.
g. the lubricating parts of crocodile scrap metal shearing machine should be lubricated at least once per shift according to the requirements.
