1.Description:

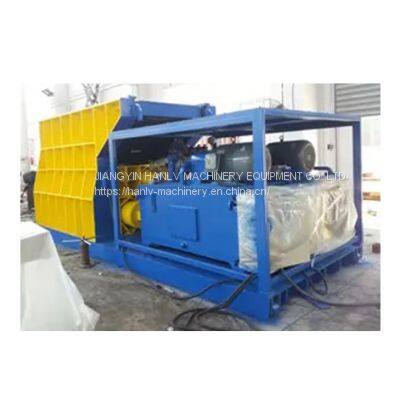

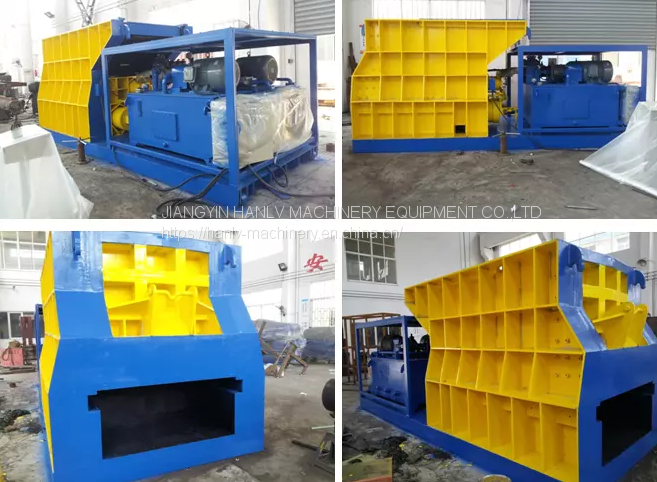

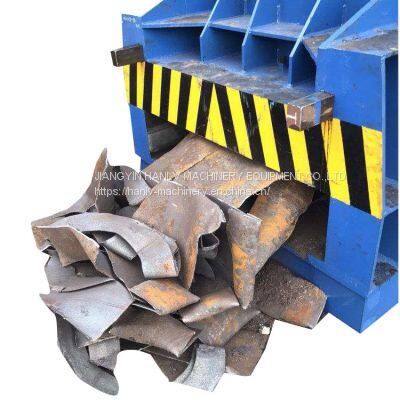

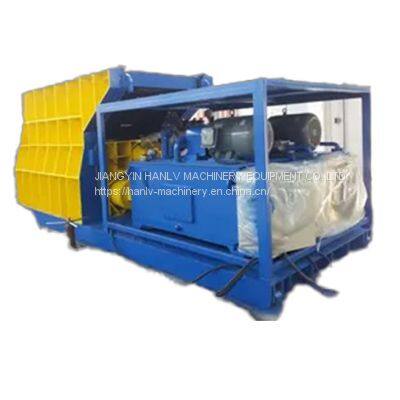

CS series of scrap shear is used for scrap cutting with PLC control, easy operation and flexible transportation with a roll on/roll off system to multiple scrap recycling yards. Various models for your choice.
2.Technical data:
1 | Press Box Size(L×W×H)(MM) | 2667*1600*2080 | |||
2 | Feeding opening size(L×W×H)(MM) | 3400*2400*900 | |||
3 | Hydraulic system working pressure | 25Mpa | |||
4 | Blade length | 1600MM | |||
5 | Cutting height | 500MM | |||
6 | Total power | 165KW | |||
7 | Power supply | Customized | |||
8 | Cycle time | 2-3 times/min | |||
9 | Motor | Model | Y280M-6 | Power | 55KW |
Nominal Speed | 980R/MIN | Quantity | 3Sets | ||
10 | Hydraulic Pump | Model | HY320Y-RP | Pressure | 31.5Mpa |
Outflow | 320ml/r | Quantity | 3Sets | ||
11 | Cooler system | Model | FCE-200P | ||
3.Features:
a.horizontal structure: feeding can be manual or automatic with conveyor
b. PLC control, push-button operation, safe&reliable
c. Manual belting
d.low specific investment and running costs
e.does not require the usual clearance for operation as it is a mobile unit
f.little space required as compared to stationary shears
·operation at scrap yards without a power supply
· as an additional unit when capacity is reached on other scrap shears
· to prepare scrap for shredding
· processing scrap at sources of waste generation
· as a low cost alternative to guillotine shears when using several container shears beside one another with a scrap handling machine
· as a processing unit for impurities in commercial waste that cannot be processed further by a shredder
