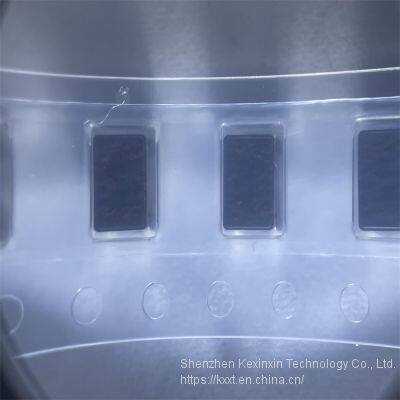

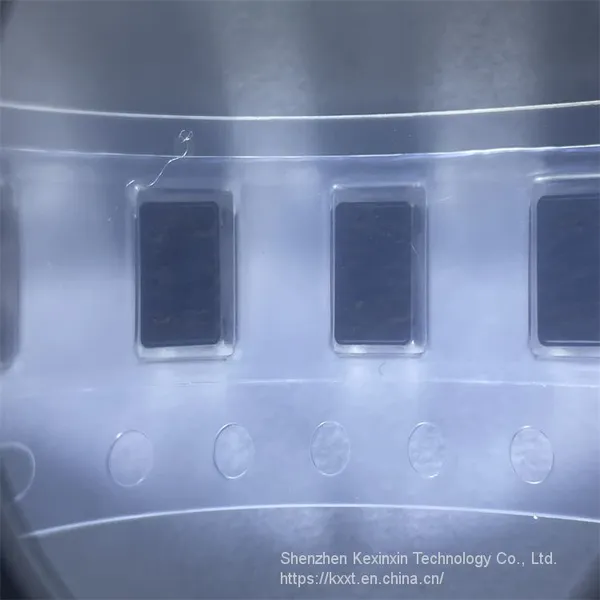

Common Mode Chokes / Filters ACT45B-101-2P-TL003

ACT45B-101-2P-TL003

Manufacturer: TDK

Product Category: Common Mode Chokes / Filters

RoHS:  Details

Series: ACT45B

Mounting Style: PCB Mount

Termination Style: SMD/SMT

Number of Channels: 2 Channel

Inductance: 100 uH

Impedance: 5.8 kOhms

Tolerance: - 30 %, + 50 %

Maximum DC Current: 150 mA

Maximum DC Resistance: 2 Ohms

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 150 C

Package / Case: 1812 (4532 metric)

Length: 4.5 mm

Width: 3.2 mm

Height: 2.8 mm

Qualification: AEC-Q200

Packaging: Reel

Packaging: Cut Tape

Packaging: KXXReel

Product: Data and Signal Line Chokes

Type: Signal Line

Brand: TDK

Core Material: Ferrite

Lead Diameter: -

Lead Spacing: -

Product Type: Common Mode Chokes

Shielding: Unshielded

factory pack quantity: 2500

Subcategory: Inductors, Chokes & Coils

Test Frequency: 100 kHz

Part # Aliases: B82787C104H2

Unit Weight: 0.000952 oz
