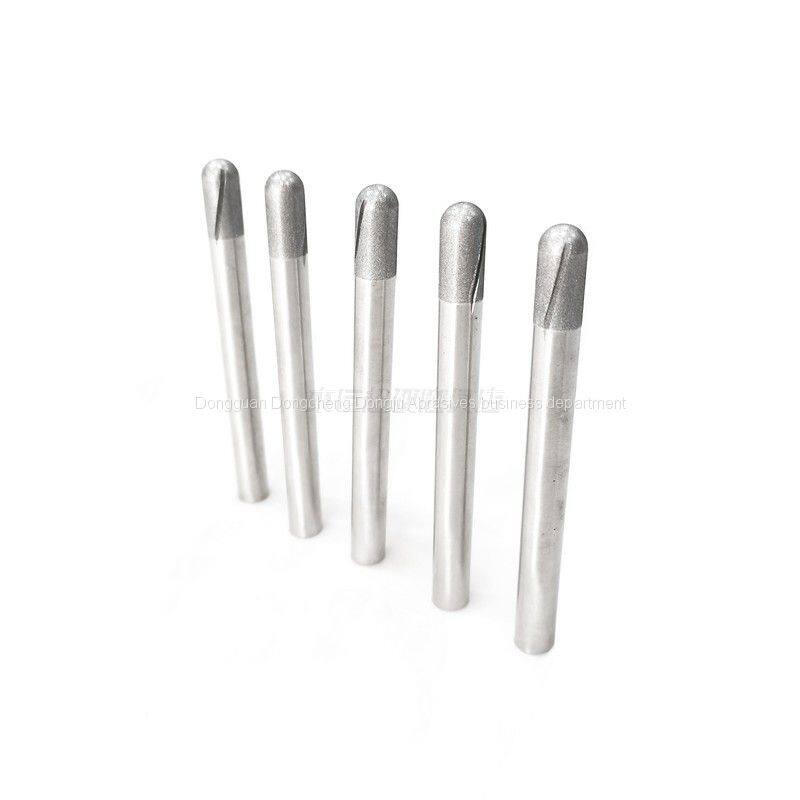

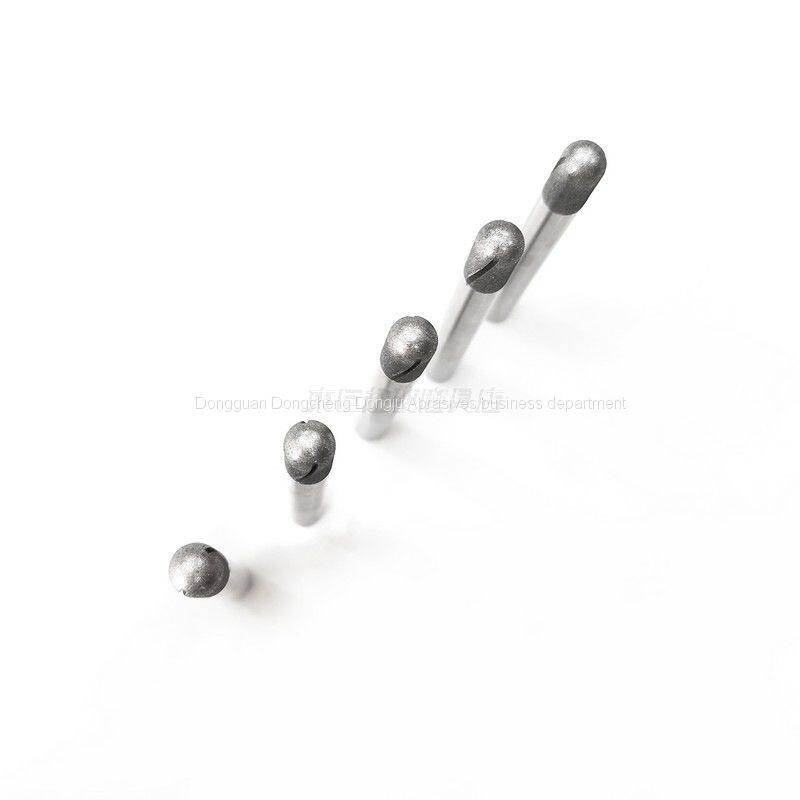

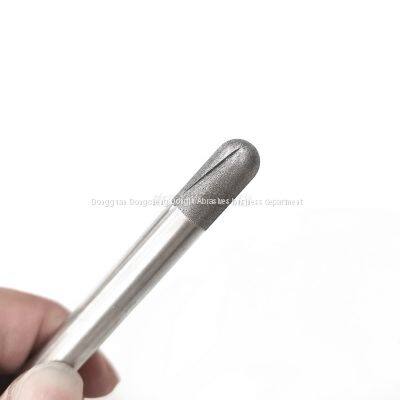

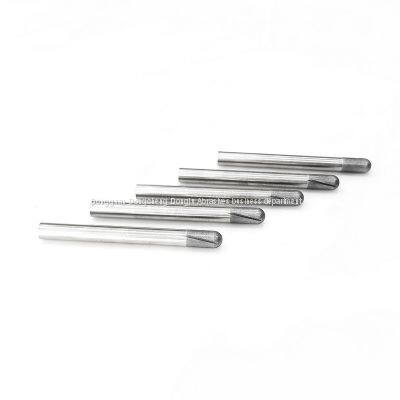

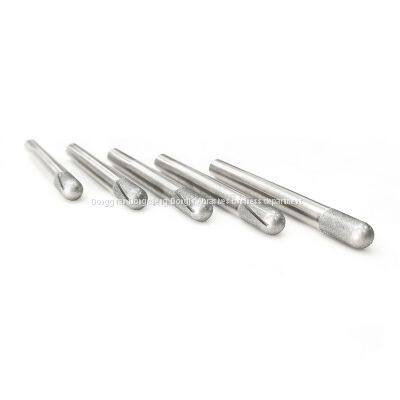

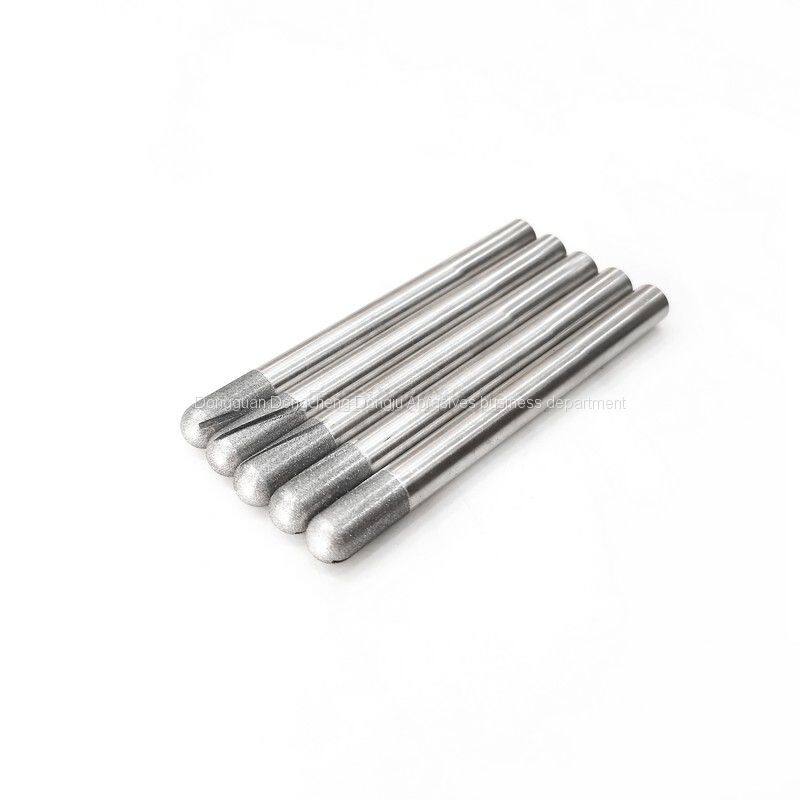

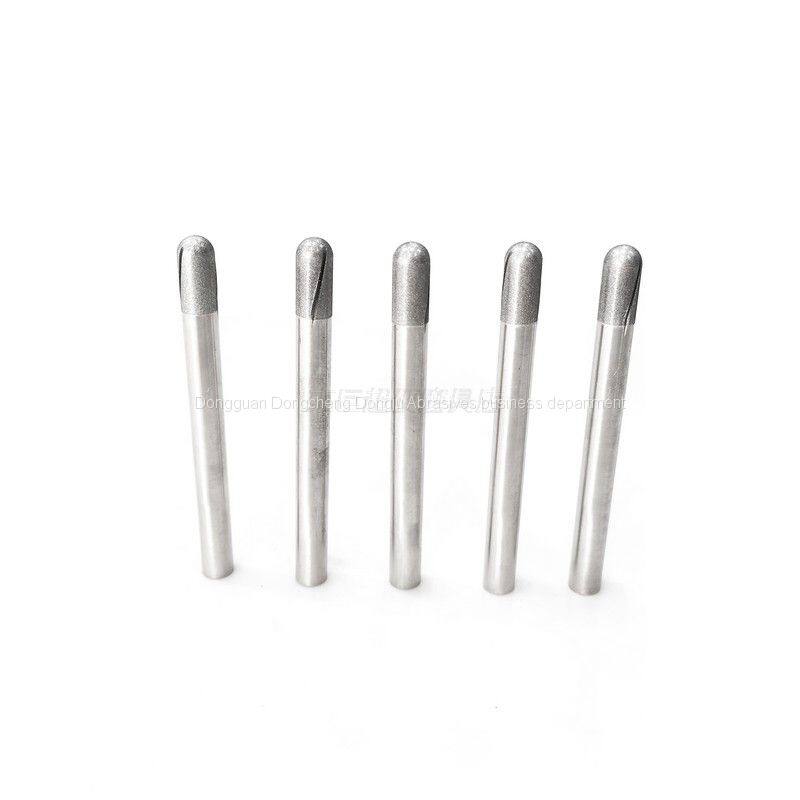

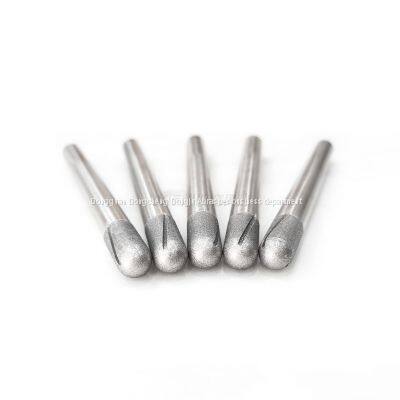

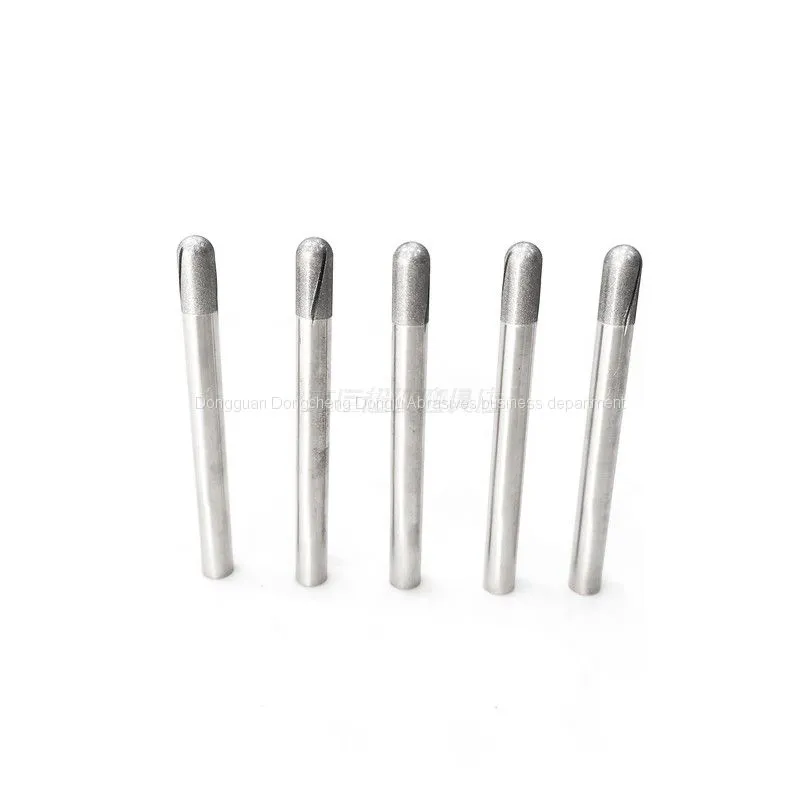

Help CenterR4.7 Hemisphere Diamond Grinding Head Spiral Groove Design, Glass Fiber Drilling, Reaming and Trimming
Related Products
-
Shaped Diamond Nail Grinding Head Polishing Dog Nails Sharp Electroplated Diamond Raw Material 50 MeshCNY 250 - 300MOQ: 10 Pieces -
9mm Cup Shaped Diamond Grinding Wheel With Handle, 3-handle Countersunk Hole Electroplated Grinding Rod, Inner Hole Sand Planting SDC200 MeshNegotiableMOQ: 10 Pieces
-
Electroplated CBN Grinding Stick 1.3mm Cubic Boron Nitride 600 Mesh Mold Inner Hole Fine Trimming BurrCNY 40 - 50MOQ: 10 Pieces
-
3mm Electroplated Diamond Ball File Medical Orthopedic Grinding Head Titanium Alloy Surgical Granulation DrillCNY 240 - 300MOQ: 100 Pieces
-
Customized Trapezoidal 52 Degree Grinding Head for Ceramic Processing With Diamond Grinding Rod and Diamond Sand Chamfering Grinding HeadCNY 300 - 350MOQ: 5 Pieces
Diamond tools
Glass fiber is a high-performance inorganic non-metallic material with a wide variety of advantages such as good insulation, strong heat resistance, good corrosion resistance, and high mechanical strength. However, its disadvantages are brittleness and poor wear resistance. Hard alloy drill bits or diamond grinding heads can be used to drill holes on glass fibers. Hard alloy drill bits break materials by the impact load generated by drilling pressure and self rotation, while diamond sand is a type of silicon dioxide crystal, which is an industrial polishing agent. The finished product has round inner holes and smooth and delicate inner walls. The glass fiber produced by using a round head diamond sand grinding head is of high quality and accurate size, supporting customization.
Brand: Dongju
Model: Electroplating binder
Material: Diamond sand
Category: Round head grinding head

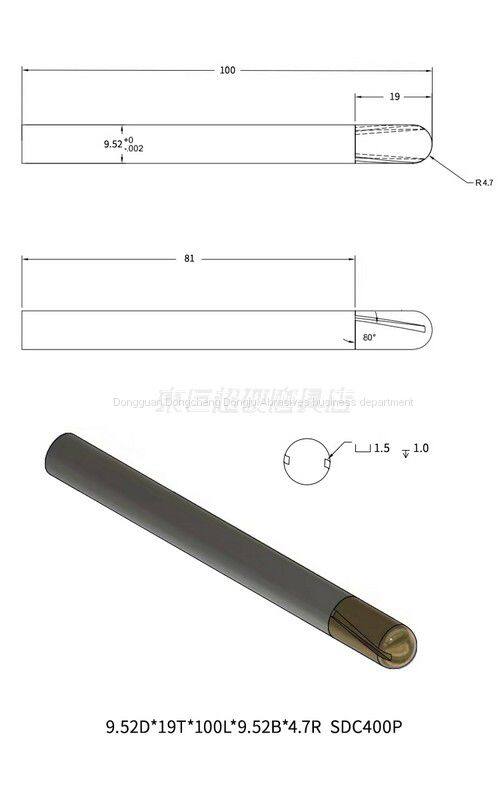

Specification: 9.52D * 19T * 100L * 9.52B * 4.7R SDC400P
Length 100mm
Grinding head diameter: 9.52mm
Shank diameter: 8.52mm
Grinding head length: 19mm
Particle size: 40-400 mesh
Radian: R4.7
Whether to slot: spiral groove 1.5 * 1.0mm
Customization: Yes
Imported or not: No
Origin: Dongguan
Functional use: Glass fiber rough processing
Scope of application: drilling, expanding, trimming
Weight: 300g
