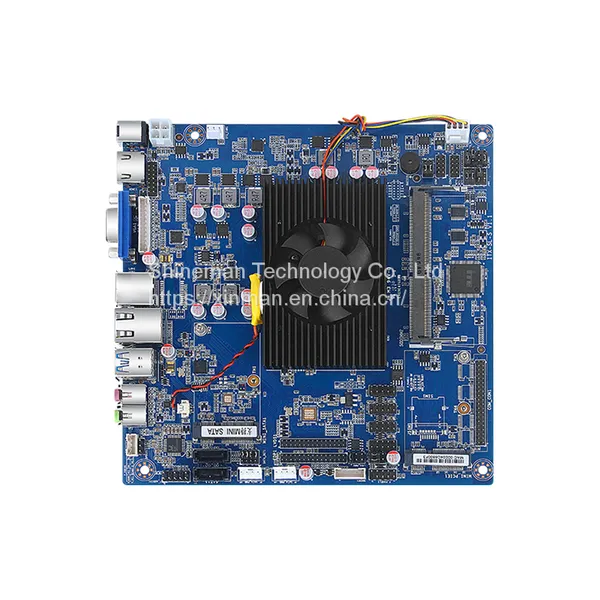

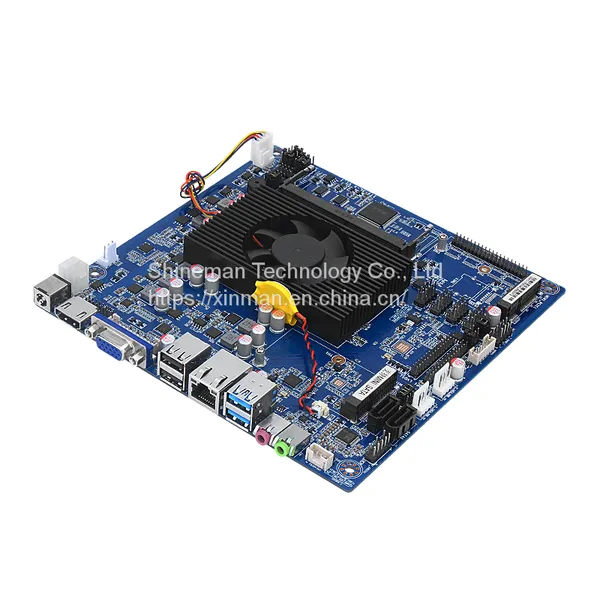

Embedded X86 Mini PC Motherboard Intel Core i7 7500U HDMI USB LAN COM Extensible Computer Mainboard
Spotlight Features
●Soldered down 7th/6th Generation Intel Celeron/Pentium/Core i3/i5/i7 Processor
●Integrated Intel HD Graphics
●With HDMI，VGA，LVDS/eDP,Supports Triple Display
●1* DDR4 SO-DIMM，Max.32G/2133MHz
●1*mPCIE，Supports WiFi+BT Module and 4G/3G Module Optional
●1*mPCIE，Supports mSATA SSD
●2*Gigabit LAN，10/100/1000 Base-Tx Gbe Compatible
●Realtek 5.1 Channels HDA Codec
●12V Power supply
Specification
Processor |
Intel Sky Lake-U/Kaby Lake-U |
Graphics |
Intel HD Graphics 510/520/610/620 |
Display |
1*VGA Port |
1*HDMI1.4, Max Reslution 4096X2304@24Hz | |
1*LVDS/1*eDP(Option） | |
Memory |
1*DDR4 SO-DIMM，Max.32GB DDR4/2133MT/s |
Ethernet |
2*Realtek RTL8111E Gbe， Supports WOL、PXE Boot |
AUDIO |
1*Realtek ALC662，5.1 CHs HDA Codec，Whit MIC_IN/HP_OUT |
Storage |
2*SATA3.0 6Gbps |
1*mPCIE，Supports mSATA SSD | |
Expansion |
1*mPCIE，Supports WiFi+BT/3G/4G Module |
1*SIM Card | |
Rear Panel I/O |
1*DC_IN |
1*HDMI | |
1*VGA | |
2*RJ45 | |
2*USB3.0 | |
1*HP_OUT，1*MIC_IN | |
Internal I/O |
3*F_USB2.0 Header（6*USB2.0 Via Internal Header） |
1*JHDMI，1*JVGA | |
2*SATA_PWR | |
2*SATA3.0 | |
1*CLR_CMOS | |
1*AUTO_ON | |
1*GPIO(8bit） | |
6*COM， COM2 Supports RS232/RS422/RS485 Option | |
1*F_PANEL | |
1*F_AUDIO | |
1*LVDS/1*eDP（Option） | |
1*INVERT | |
1*SPEAKER | |
1*CPU_FAN，1* SYS_FAN | |
BIOS |
AMI UEFI BIOS |
Power Supply |
DC 12V |
OS |
Windows7/10/11/Linux |
Heat Sink |
Smart FAN |
OTR |
-10℃～60℃ |
STR |
-20℃～70℃ |
Humidity |
5%-95% Relative Humidity,Non-condensing
|
Dimension |
170*170mm |
