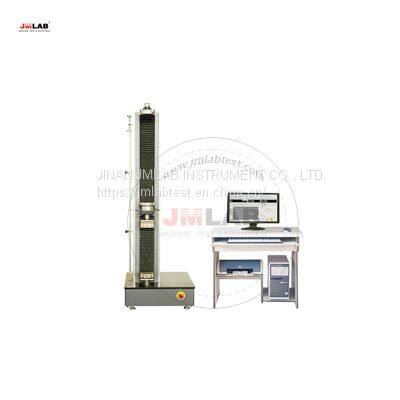

Help Center10N-5KN Digital Universal Tensile Testing Machine/Paper Plastic Rubber Steel Ropes Metal Wires Material UTM Tensile Strength Tester
Related Products
-
High Precision 50n-5kn Electrical Universal Tensile Testing Machine/Lab Tensile Mechanical EquipmentUS$ 1199 - 3999MOQ: 1 Set -
WD-300 Computer Control Tensile Stress Relaxation Testing Machine Of Steel Strand Stressed Steel Test MachineUS$ 9999 - 18999MOQ: 1 Set
-
ASTM ISO 10kn - 300kn Universal Testing Machine, 2Ton 5Ton 10 Ton 30Ton Plastic Rubber Steel Ropes Metal Material UTM Tensile Strength TesterUS$ 1199 - 15999MOQ: 1 Set
-
ASTM ISO 10kn - 300kn Universal Testing Machine, 2Ton 5Ton 10 Ton 30Ton Plastic Rubber Steel Ropes Metal Material UTM Tensile Strength TesterUS$ 1199 - 15999MOQ: 1 Set
-
100Ton Bolts Nuts Rebar Computer Control Hydraulic Servo Pull Tensile Compression Universal Strength Testing MachineUS$ 9999 - 16999MOQ: 1 Set
Overview:
This series of testing machines can be used to test various metal, non-metal and composite materials for tensile, compression, bending and other mechanical properties. Through the precise automatic control and data acquisition system, the fully digital automatic adjustment of the data acquisition and control process is realized, and the machine stops automatically after the test. Technical indicators such as tensile strength, elongation, and maximum test force of the sample can be accurately measured.
This machine is suitable for tensile test of rubber, plastic, textile, waterproof material, wire and cable, net rope, metal wire, metal rod, metal plate and other materials. Compression and bending test can be done by adding accessories. It has the functions of digital display of test force, continuously adjustable test speed, automatic shutdown of sample breaking, peak hold and other functions.
Technical specification:
No. | Item | Parameters |
1 | Max test force | 5KN (0.1/0.2/0.3/0.5/1/ 2/3KN optional) |
2 | Test accuracy | 1 grade |
3 | Test range | 2%-100% |
4 | Displacement resolution | 0.01mm |
5 | Test speed | 0.01-500mm/min |
6 | Tensile space | 600mm (could be customized) |
7 | Compression space | 600mm (could be customized) |
