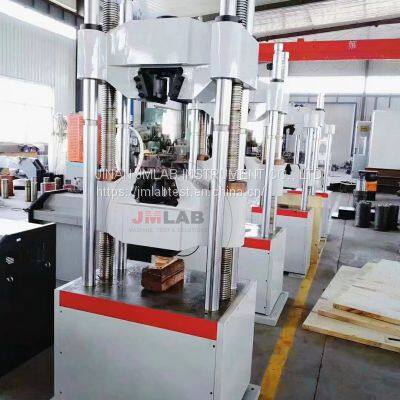

Help Center100Ton Bolts Nuts Rebar Computer Control Hydraulic Servo Pull Tensile Compression Universal Strength Testing Machine
Related Products
-
60Ton Bolts Nuts Rebar Material Hydraulic Servo Universal Strength Testing EquipmentUS$ 5999 - 16999MOQ: 1 Set -
30Ton Bolts Nuts Rebar Material Hydraulic Servo Universal Strength Testing EquipmentUS$ 5999 - 11999MOQ: 1 Set
-
200Ton Bolts Nuts Rebar Material Hydraulic Servo Universal Strength Testing EquipmentUS$ 29999 - 45999MOQ: 1 Set
-
High Precision 50n-5kn Electrical Universal Tensile Testing Machine/Lab Tensile Mechanical EquipmentUS$ 1199 - 3999MOQ: 1 Set
-
WD-300 Computer Control Tensile Stress Relaxation Testing Machine Of Steel Strand Stressed Steel Test MachineUS$ 9999 - 18999MOQ: 1 Set
Overview:
This testing machine is an important instrument and equipment for testing the physical properties, mechanical properties, technological properties, structural seismic strength, and internal and external defects of materials and components of various materials and their products in various environments and simulated states. According to the corresponding standards, the tensile, compression, bending, shearing and other types of tests on metal or non-metallic materials can be realized, and the tensile strength, yield strength, specified non-proportional elongation strength, elastic modulus, etc. of the measured materials can be obtained Performance indicators can realize constant-rate loading, constant-rate deformation, constant-rate displacement, constant-rate strain and other closed-loop control, and can conduct process qualification performance verification tests of materials or products.
Test standards:
GB/T, JB, ISO, ASTM, HGT, EN
Technical specification:
Items | WAW-1000D |
Structure | six columns (four columns, two screw); |
Max test force | 1000KN |
Testing machine level | level 1 |
Tensile space | 660mm |
Compression space | 530mm |
Effective test width | 510mm |
Maximum piston stroke | φ150mm |
Test force range | 2%—100%FS |
