Boyu 110 SPC Stone Plastic Floor Production Line Equipment

FOB Price

US$ 1155000 - 1155882 / Set

1 Set(Min. Order)

Port Shanghai
Delivery Detail26 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Warranty

a year

Product Description

SPC Floor Production Line Process Technology

The technology of extruding substrates, embossing wood grain layers, color film decorative layers, and wear-resistant layers can be completed simultaneously on the same equipment. 1、 Various relief wood grain patterns can be directly applied to the substrate; Secondly, the surface can be heat applied

Decorative layers of various colored films; Thirdly, a wear-resistant layer can be directly heat applied onto the decorative layer of the board; Fourthly, the bottom fiberglass soft cushion soundproofing layer can be directly heat applied. All four of the above can be the same

Complete multi-layer integration on a single production equipment. Equipment that can reduce surface treatment patterns and is wear-resistant. Reduce labor and equipment investment, greatly reducing the production cost of PVC stone plastic flooring,

And a set of automated assembly lines can be operated by only one person at the feeding port, and the host computer screen can be operated by a person, basically achieving the principle of automated production. The core technology of this product, equipment precedent

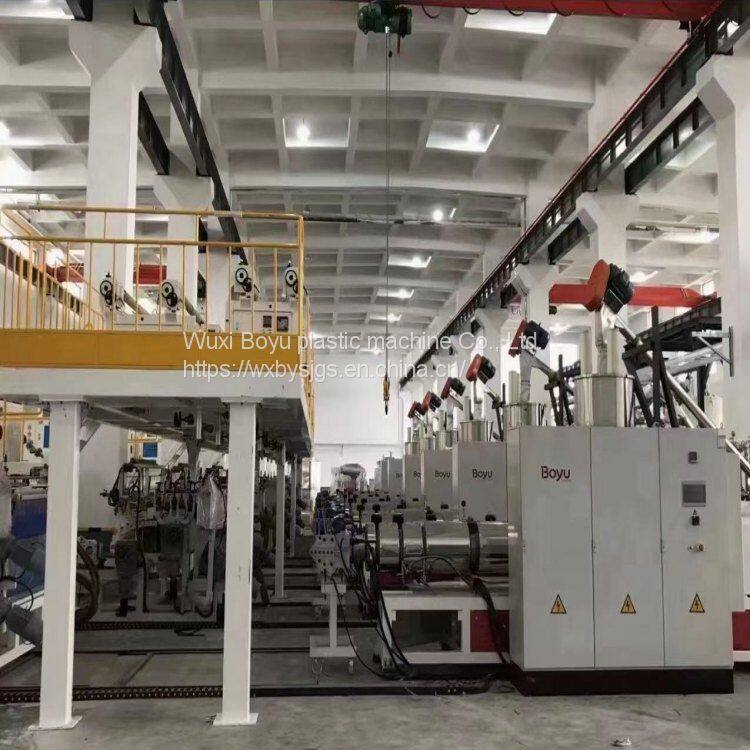

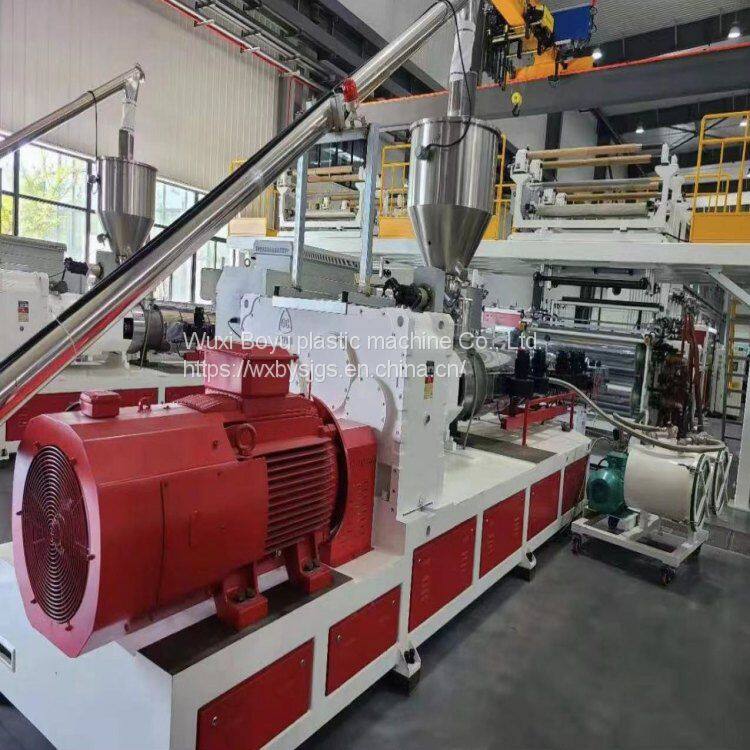

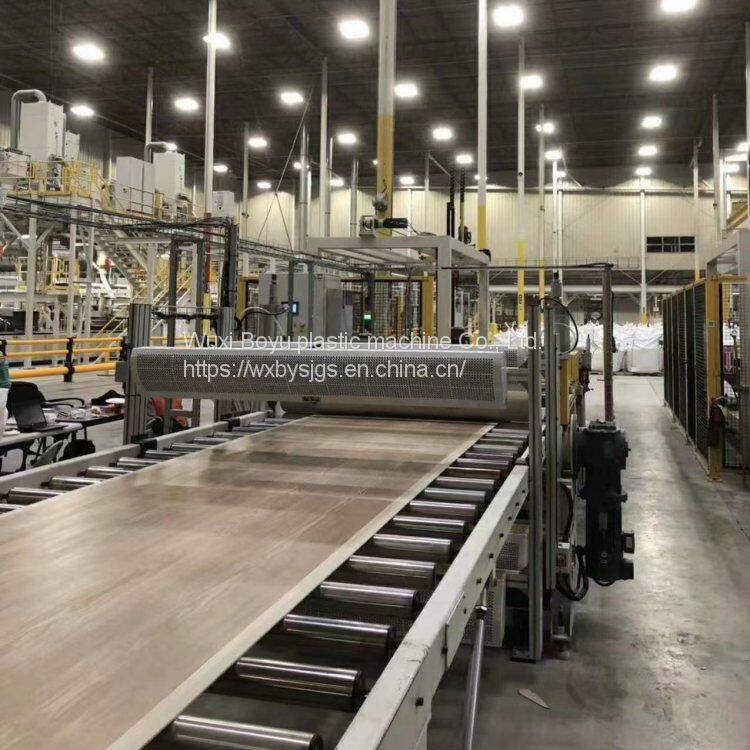

High degree of automation. The PVC stone plastic floor production line equipment is automatically fed into high-speed mixing, then automatically fed into a twin-screw extruder, and discharged from a large plate mold structure for five roll shaping and die setting

It consists of a type, roller cooling device, edge cutting device, traction machine, automatic cutting machine, etc. The unit has a compact structure and excellent performance. The screw and barrel have been optimized and designed using high-performance alloy steel

Processing ensures that the entire machine has the advantages of uniform plasticization, stable extrusion volume, high output, and long service life. The main engine screw is heated by a cast aluminum heater, cooled by air, and temperature controlled by precision electronic control instruments. Precise shaping

The calendering device, with its excellent adjustment function, ensures excellent shaping of the board. The cutting part adopts a fixed length cutting device to ensure the correct length of the board. The sheet extrusion equipment has parallel twin-screw extrusion in opposite directions

It is composed of auxiliary parts such as machine output, sheet metal molds, vacuum forming, and three wheel traction, and has a very broad application prospect. The PVC stone plastic flooring material is mainly made of PVC plastic and processed by a special foaming process

The product is made of technology. It has the advantages of moisture-proof, flame-retardant (self extinguishing), invariable, beautiful, anti-aging, corrosion resistance, weather resistance, anti-corrosion, waterproof, sound insulation, thermal insulation, etc

By highlighting its advantages, various colors can be customized according to user requirements to enhance its aesthetic appeal; The service life is up to 40-50 years.

The processing and application of PVC stone plastic flooring is very convenient. It can be sawed, planed, drilled, nailed, drilled, screwed, and bonded like wood, or bonded like general plastic products

Processing such as bonding, welding, and hot bending. This makes its application range very wide, and it can completely replace wood, plywood, and particleboard in various occasions. It is a new type that meets the standards

Type decoration materials. Our factory, with strict management, rich experience, unique craftsmanship, and reasonable material selection, is dedicated to creating safe, healthy, environmentally friendly, humanized, and high-quality products for customers

Provide comprehensive after-sales service and solve problems for customers in a short period of time. Your satisfaction is our eternal pursuit. Our company specializes in producing PVC foam flooring machinery and equipment

Order PVC stone plastic flooring production line equipment: We will provide you with comprehensive training. Proficient in equipment operation skills, correctly distinguish raw material quality and market prices, and determine according to customer needs

What is the proportion of ingredients, as well as the thickness and color matching ratio of the floor. The company adheres to the business philosophy of "customer first, striving for progress" and insists on providing excellent services to our customers based on principles.

Welcome to visit!

Contact Us

Wuxi Boyu Plastic Machine Co., Ltd.: Contact nameChenPing
Chat Now; Phone86-0510-88273396; AddressXiqun Road, Meicun Street, Xinwu District, Wuxi, Jiangsu
