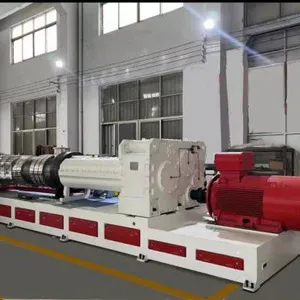

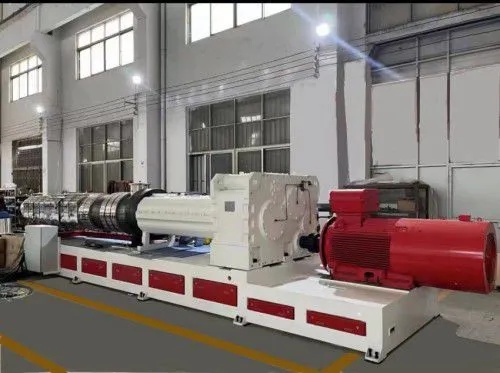

Wuxi Boyu 110 LVT Floor Production Line Equipment
US$ 1155000 - 1155882
MOQ: 1 Set
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
26 days
Related Products
-
LVT Coil Production Line EquipmentUS$ 1155000 - 1155882MOQ: 1 Set -
LVT Composite Flooring Production Line EquipmentUS$ 1155000 - 1155882MOQ: 1 Set
-
LVT Floor Production Line Mechanical EquipmentUS$ 1155000 - 1155882MOQ: 1 Set
-
LVT Floor Roll Production Line Extrusion EquipmentUS$ 1155000 - 1155882MOQ: 1 Set
-
Boyu LVT Stone Plastic Flooring Production Line Mechanical EquipmentUS$ 1155000 - 1155882MOQ: 1 Set
Warranty
a year
Advantages and disadvantages of PVC/LVT flooring:
6 major advantages:
1. Green and environmentally friendly
The main raw material for producing LVT flooring is polyvinyl chloride, which is an environmentally friendly and renewable resource. It has been widely used in people's daily lives, such as tableware and medical infusion tubes
There is no need to worry about the environmental friendliness of bags, etc.
2. Wear resistant
The LVT floor surface has a special PVC wear-resistant layer, which can withstand up to 300000 revolutions per minute. According to the different wear-resistant thicknesses, it can be used for 5-10 years under normal conditions, and the thickness and quality of the wear-resistant layer directly determine
The usage time of LVT flooring has been determined, and standard test results show that a 0.55mm thick wear-resistant layer flooring can be used for more than 5 years under normal conditions, while a 0.7mm thick wear-resistant layer flooring is sufficient for more than 10 years,
So it's more wear-resistant. Due to its wear resistance, LVT flooring is becoming increasingly popular in crowded places such as schools, office buildings, shopping malls, supermarkets, and transportation vehicles.
(Regarding the wear resistance of the wear-resistant layer, currently it is mainly measured through loss, that is, quality reduction, as an indicator.)
3. High elasticity and impact resistance
LVT flooring has a soft texture, so it has good elasticity and can recover well under the impact of heavy objects. At the same time, LVT flooring has strong impact resistance and strong elastic recovery against heavy object impact damage
Restoration will not cause damage. Excellent LVT flooring can greatly reduce the damage of the ground to the human body and disperse the impact on the feet. New research data shows that in spaces with a large number of people
After the installation of excellent LVT flooring, the rate of personnel falling and getting injured was reduced by nearly 70% compared to other flooring.
4. Fireproof and flame retardant
The fire resistance index of LVT flooring with qualified quality can reach B1 level, which means that the fire resistance performance is very excellent, second only to stone. Extinguish immediately upon leaving the fire.
5. Easy maintenance
The maintenance of LVT flooring is very convenient. If the floor is dirty, simply wipe it with a mop. If you want to maintain the long-lasting brightness of the floor, you only need to regularly wax and maintain it, and its maintenance frequency is much lower than that of strengthening
The floor.
6. Waterproof and moisture-proof
LVT flooring is mainly composed of vinyl resin, which has no affinity for water. Therefore, it is naturally not afraid of water and will not be damaged as long as it is not soaked for a long time; And it won't happen due to high humidity
Mold and mildew.
4 disadvantages:
Non natural materials, high requirements for the base floor (LVT flooring must have a flat, solid, and dry base when laying, and plastic flooring must have a smooth surface, square corners, no falling edges, no oil stains, dust, and impurities)
Easy to be burned by cigarette butts and requires maintenance.
4、 LVT floor testing:
The tests required for LVT flooring are as follows:
1. Simulate temperature changes under real conditions to observe the shrinkage response of the floor The temperature control ranges from -5 degrees Celsius to 50 degrees Celsius Usually, different temperatures are selected and observed for about three days at this temperature
On the right, let's take a look at the shrinkage changes of the floor
2. Aging testing machine
After measuring the length and width of the product, place it in the instrument at 80 degrees Celsius for 6 hours (wpc, 65 degrees Celsius for 6 hours), then remove it and cool it to the temperature before placing it in the instrument. Check for shrinkage and warping Shrinkage directly measures its size change
Transformation and warping can be measured by placing the product on a horizontal workbench
3. Specific gravity balance
Cut the product into appropriate sizes, place it on the surface cover of the balance, press enter, and then place it in the water under the cover, enter, Read the reading The specific gravity balance is mainly used to measure the density of products
4. Tensile strength testing machine
Select a 5-centimeter wide object to be tested, place it on the device, and measure This instrument is mainly used for measuring
A. The peeling force between the wear-resistant layer, color film, intermediate material, and bottom material
B. Measure the tension of the lock buckle, 4.2mm-12kg 5.0mm-15kg, with the short side tension greater than the long side tension
4. Hardness test
Measure the hardness of the base material/raw material/finished product, swing the operating lever directly until it cannot be moved, and read the reading
5. Constant temperature water bath+coating-4 viscometer
These two devices need to be used in conjunction. Place a beaker containing UV paint in a constant temperature water bath pot, control its temperature, and then pour an appropriate amount of UV paint into a viscosity meter. Record the required amount of liquid to flow out of the container
Time Using 40 seconds as the standard, if it is greater than 40 seconds, it indicates that the viscosity is too high, and if it is less than 40 seconds, it indicates that the viscosity is too thin; Mainly used to detect whether the viscosity of UV paint meets the standard
6. Horizontal hand press frame
Measure the tension of the lock buckle manually
7. Artificial Rolling Wear Testing Machine
A. Measure whether the UV paint layer is wear-resistant. Before measuring, weigh the object to be tested, and then weigh it again after the test. Calculate the wear amount by the difference between the two weights
B. Measure the wear resistance speed of the wear-resistant layer
The wheels used in these two experiments are different, and attention should be paid to replacement when performing different operations
8. Scratch resistance tester
Measure the scratch resistance of UV paint
Scratch resistance and wear resistance are two concepts. Wear resistance is tested using grinding wheels, while scratch resistance is tested using sharp objects
9. Wheel testing machine
Simulate the wear resistance of the wheelchair wheel to the UV paint layer, and observe the surface of any product after 25000 revolutions to determine its quality
10. Right angle straightness measuring instrument
A. Fix the long side to observe the right angle
B. Fixed short side to observe straightness
C. At the same time, the degree of thermal expansion change can also be observed
11. Microscope
Mainly observing the composition of the finished product
12. Muffle furnace
Used to test the purity of PVC.
Our company has developed PVC/LVT flooring production line equipment. After more than 20 years of research, our company has greatly improved product performance and output. These 20 years of research have not only improved the quality of our products and equipment, but also
The leap forward also witnessed the growth and expansion of our company, which has an influence in the industry
