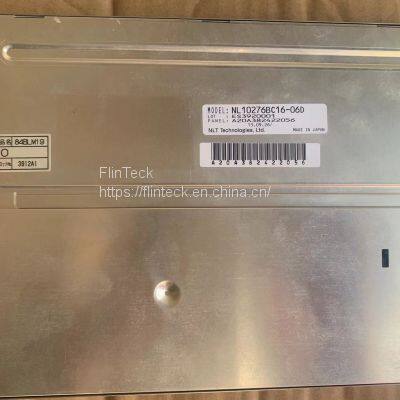

NL10276BC16-06D NEC8.4 Inch High Resolution LCD Screen

NEC8.4 inch high resolution LCD screen

Panel brand NEC (NEC)

Panel size 8.4 inches

The number of pixels is 1024(RGB)×768, XGA, 152PPI.

The display area is 170.496 (w) × 127.872 (h) mm.

The external dimension is 200 (w) × 152 (h) × 8.7 (d) mm.

Panel brightness 600 cd/m² (Typ.)

Viewing angle 88/88/88/88 (Typ.)(CR≥10)

Display color 262K/16.7M, 72% NTSC

Working frequency 60Hz

Weight 260/280g (Typ./Max.)

Panel model NL10276BC16-06D

Panel type a-Si TFT-LCD, LCD module

Pixel layout RGB vertical bar

The opening size is 174.0 (w) × 131.4 (h) mm.

Surface treatment fog surface, Hard coating (3H)

Contrast 1000:1 (Typ.) (transmission)

Working mode UA-SFT, normally black display, transmissive.

Reaction time 13/12 (Typ.)(Tr/Td) ms

Lamp type 4 strings WLED, 100K hours, no drive.

Working temperature:-20 ~ 70 C; Storage temperature:-30 ~ 80 C; Vibration resistance: 2.0g (19.6m/s)
