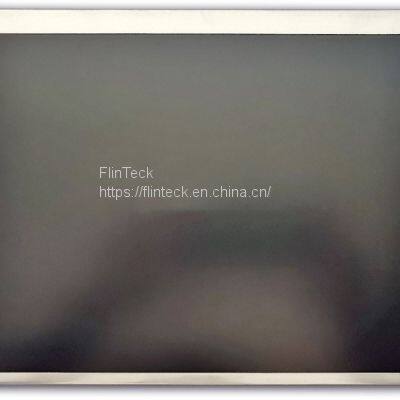

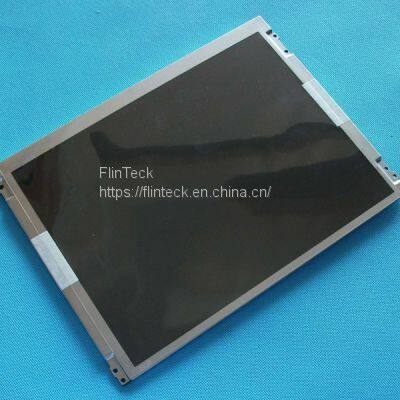

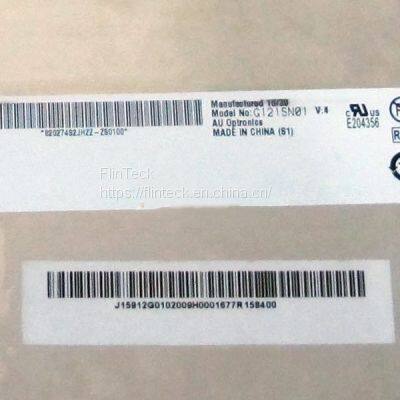

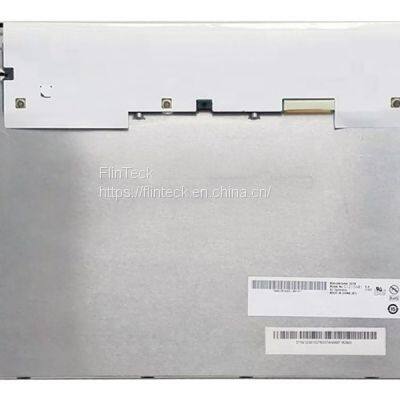

G121SN01 V4 AUO 12.1 Inches Panel Type A-Si TFT-LCD

Panel brand AUO (AUO)

Panel model G121SN01 V4

Panel size 12.1 inches

Panel type a-Si TFT-LCD, LCD module

800(RGB)×600, SVGA, 82PPI pixel layout RGB vertical stripes.

Display area 246(W)×184.5(H) mm

The external dimension is 279 (w) × 209 (h) mm.

Opening area is 249.05 (w) × 188.3 (h) mm.

Surface treatment fog surface, Hard coating (3H)

The display brightness is 450 cd/m² (Typ.)

Contrast ratio 700:1 (Typ.) (transmission)

Recommended viewing angle 6 o'clock response time 25/10 (Typ.)(Tr/Td) ms

Viewing angle 80/80/65/75 (Typ.)(CR≥10) Display mode TN, normally white display, transmissive.

Support color 262K/16.2M, 55% NTSC.

Type of light source WLED [9S2P], 50K hours, including LED driver.

Weight 580g (Max.) Application product frame frequency 60Hz.

Touch technology touchless interface type 20 pins LVDS (1 ch, 6/8-bit), terminal

The voltage supply is 3.3V (Typ.)

Working temperature of application environment:-30 ~ 85 C; Storage temperature:-30 ~ 85 C.
