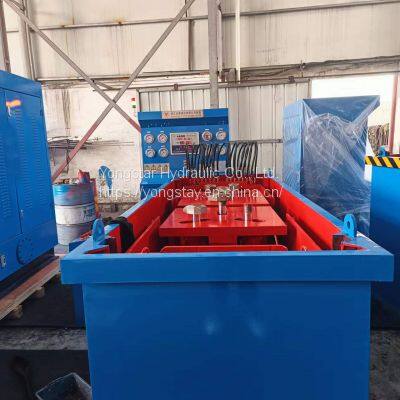

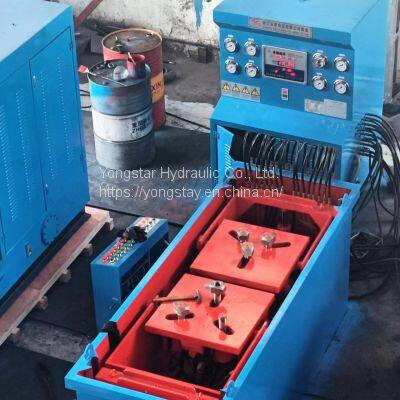

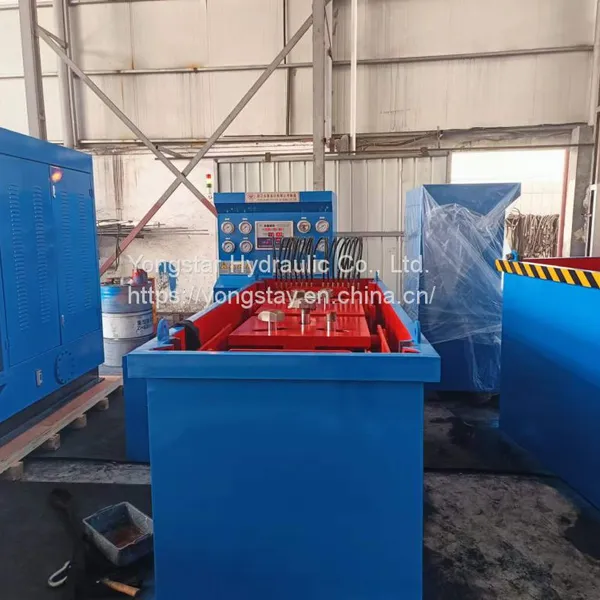

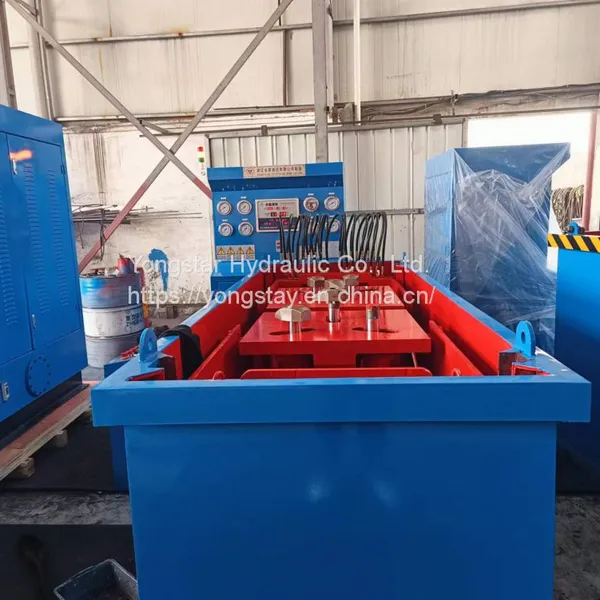

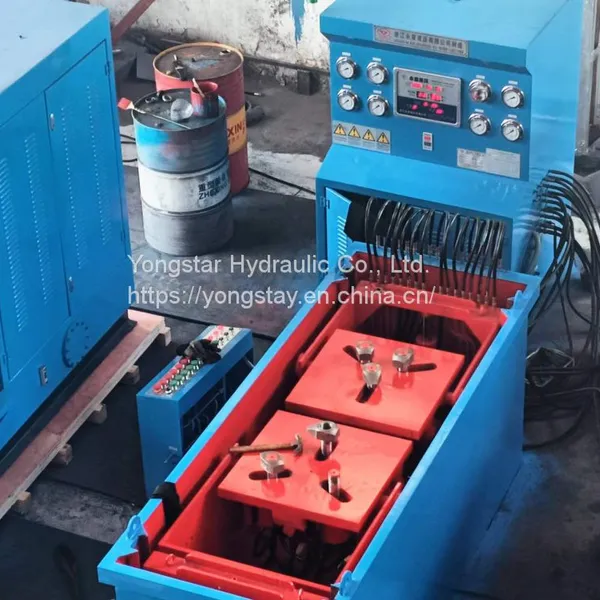

Help CenterManual Control YFT-Z100 Submerged Claws Clamping Type Hydraulic Valve Sealing Test Machine for Valve Sealing Test
Related Products
-
Provided by Yongstar High Quality Diving Type Valve Leakage Test RigUS$ 18000 - 25000MOQ: 1 Set -
Manual Control Type YFT-400 Horizontal Claws Clamping Type Hydraulic Ball Valve Test Bench for Flange Valve TestUS$ 14000 - 18000MOQ: 1 Set
-
Top Selling PLC Control Touch Screen Operation YFT-A600/250 Combined Impacting Type Hydraulic Valve Testing EquipmentUS$ 45000 - 52000MOQ: 1 Set
-
Automatic Control YFT-T1000 Hydraulic Butterfly Valve Test Machine for Flange End Butterfly Valve TestUS$ 25000 - 35000MOQ: 1 Piece
-
Yongstar Provides Fully Automated YFT-A1000 Impacting Type PLC Control Valve Test BenchUS$ 60000 - 100000MOQ: 1 Set
Technical performance and feature
1. YFT-Zseries has two parts：control part and clamp part(water tank). the whole claws clamp can be submerged into water. It is controlled by hydraulic system.
2. Y FT-Z series hydraulic valve test bench is suitable for flange valve's shell test，seal test and back seal test.
3. Using claws to hold the there's no external force effects on the test valve， which is in accordance with the requirement of GB/T13927-92.JB/T9092-99 and AP1596.
4.Left and right workbench both can be turned over 90 degrees， for the convenience of carrying valve and seal test.
5.Test medium can be chosen by user，water，air or kerosene
6.Test bench has low pressure water pump and water booster.There is an air connection reserved for air pump
7.Water and hydraulic oil can be cycle used.
8.The test bench has an automatic oil pressure discharge system.When using it，the high pressure condition and the relief pressure can be changed by itself, so it can reduce oil temperature and elongate the life of the test bench.
9. PLC control，touchscreen display pressure diagram and printer system is optional.
Main technical parameters and sizes
YFT -Z Valve Testing Bench Technical Proposal
1. YFT-Z type hydraulic valve test bench is a high technology content and high automation valve test equipment integrated with mechatronics and hydraulic system. It is made up of conventional hydraulic valve test bench, touch screen and PLC automatic control system.
2. Its force is from hydraulic power,which actuates the clamping cylinder of the tested valve, to turn
the left and right work bench over, and rotate the clamping. The high pressure is generated by oil-driven high pressure pump while the low pressure of water as testing medium is generated by the low pressure water pump The pressure can be compensated automatically（whether to do it depends on customers）. The whole process is completed by operating the needle valves , touch screen, PLC automatic control system or electronic control system.

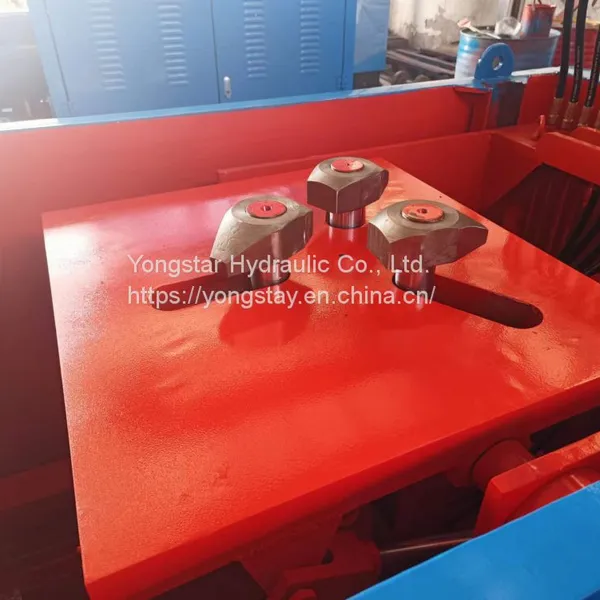

3. Three clamps are set on both sides of the workbench to move synchronously in radial direction and to clamp and release synchronously in axial direction. And the right workbench can be turned over with an angle of 0~90°to check and inspect the sealing properly. The left workbench can be moved in radial direction to suit the valves test
with different length.

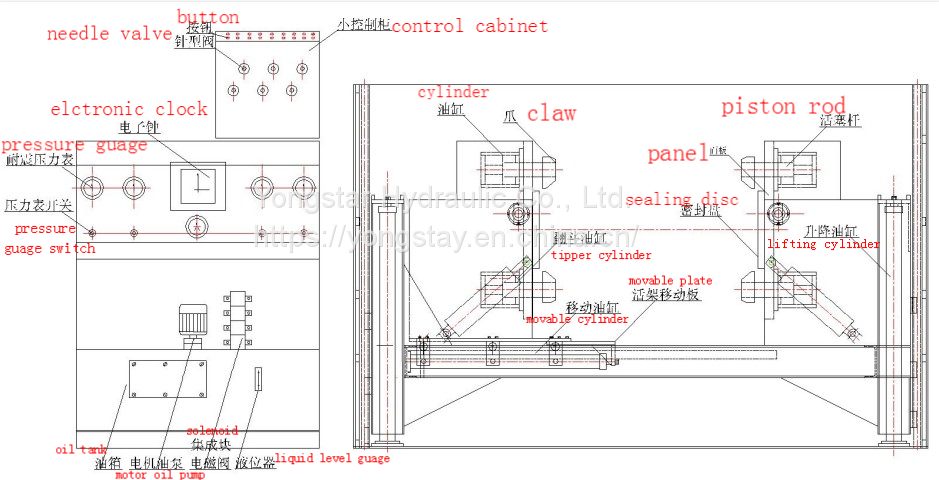

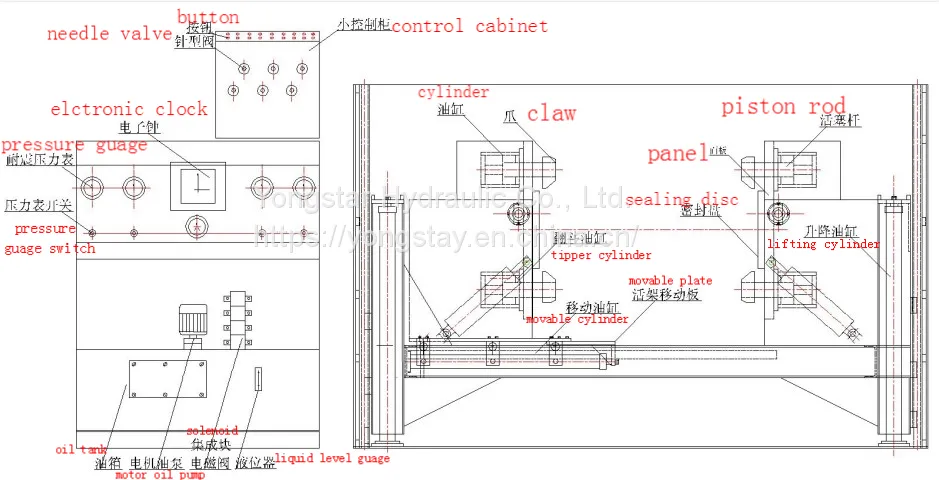

Schematic diagram

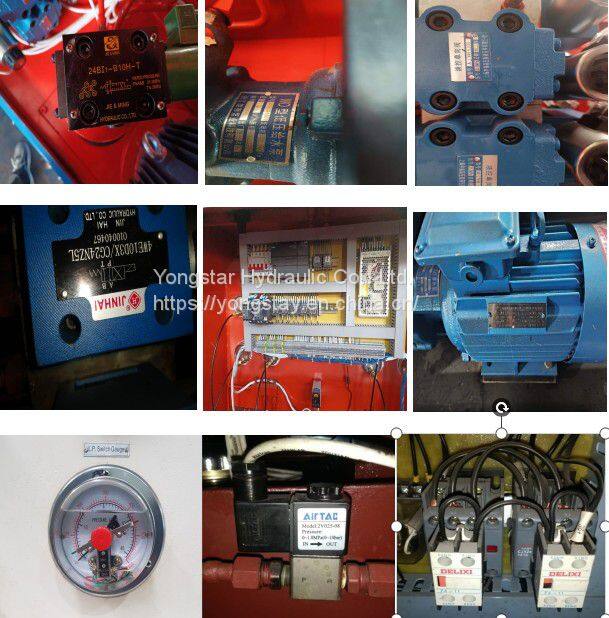

Product configuration
Certificates and Patents
Showroom
China Pump&valve Exhibition
Yes, our factory was founded in 1996, being one of the earliest valve test bench manufacturers in China, and we are the supplier of many trading companies selling valve test benches in China.
2. What is your company brand?
Our brand is YONGYE, and we have only one brand for we produce only valve test benches.
3. What is your minimum order qty?
Our products are huge machines, so the MOQ is one set.
4. What is your delivery time?
Usually 6 to 8 weeks. But it’s according to the size and technical parameters of the machine. For this point, it is
negotiable.
5. What is your payment term ?
Our standard payment is 30% to 50% advance payment by T/T after order confirmation, balance payment by T/T before shipment.
6. What is your machine warranty ?
Our machines are guaranteed by 12 months after date of shipment and life-long time free technical guidance
7. Can you do OEM services ?
Yes, we can. We can use your logo, please specify when order.
8. Do you have any references in overseas?
Yes, we have. We have exported many machines to overseas markets before Covid-19. There are some well-known companies like SSS Industry in Korea and SPL Fluid etc.
Please contact us for detailed information.
