Home > Manufacturing & Processing Machinery > Feeder > Vibrating Feeder > High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining

High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining

Zhengzhou VANGUARD Machinery Technology Co., Ltd.
High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining thumbnail-1
High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining thumbnail-2
High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining thumbnail-3
High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining thumbnail-4
High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining thumbnail-5
High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining photo-1
High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining photo-2
High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining photo-3
High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining photo-4
High Quality Stone Rock Vibration Hopper Feeder Machine Used In Mining photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
VANGUARD
Place of Origin:
China
Certification:
ISO9001-2008 international quality management system certification and European CE certification
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VANGUARD
Place of Origin China
Certification ISO9001-2008 international quality management system certification and European CE certification
After-sales Service Provided Engineers available to service machinery overseas
Application Mining
Condition New
Product Description

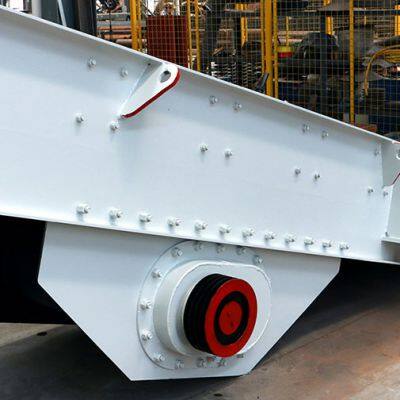

Vibrating Feeder is a kind of linear direction feeding equipment, It consists of feed spout, vibration body, vibrating motor, damping device. It can feed material for belt conveyor, vibrating conveyor, bucket elevator, vibrating screen, crusher etc. In stone production line, Vibrating Feeder can continuously convey the material to crushers and coarsely screen the materials. It is widely applied to the crushing and screening process in many industries including metallurgy, coal mine, building material, chemical, grinding, etc.

Performance Characteristics:
1. Small size, light weight, large handling capacity and smooth vibration;
2. Simple structure, easy to install and use, low maintenance cost
3. Good operational reliability and easy adjustment.
4.The exciting force is adjustable, and the flow can be changed and controlled at any time.
5. Grid clearance can be adjusted according to customers' working condition. Replaceable guard plates for the grid are convenient for maintenance and allow extended service life of the main unit.
PRODUCT PARAMETERS
Model
Specification (mm)
Max. Feeding Size (mm)
Speed(rpm)
Throughput (t/h)
Power(kw）
Weight (kg)
ZSW3090
900x3000
400
600~850
90-180
11
3450
ZSW3896
960x3800
500
600~850
120-210
15
4450
ZSW4211
1100 x4200
650
600~850
180-400
15
4750
ZSW4911
1100x4900
650
600~850
250-480
22
5350
ZSW4913
1300x4900
600
600~850
340-600
22
6350
ZSW6013
1300x6000
750
600~850
340-600
30
6800
ZSW6015
1500x6000
1000
600~850
400-800
37
7050
ZSW6018
1800x6000
1000
600~850
450-900
37
8669

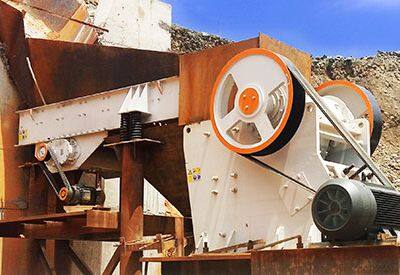

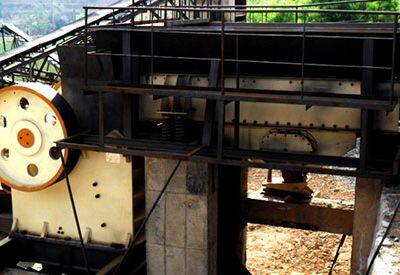

CUSTOMER CASES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get best service at lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
