High Quality Stone Rock Crusher Jaw Crushing Machine Pex Series Pex150x750 Jaw Crusher Price

Name: High Quality Stone Rock Crusher Jaw Crushing Machine Pex Series Pex150x750 Jaw Crusher Price
Brand: VANGUARD
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	VANGUARD	Place of Origin:	China	Type:	Jaw Crusher
Certification:	ISO9001-2008 international quality management system certification and European CE certification	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	12 months
Application:	stone,ore,coal,sand	Condition:	New	Motor Type:	AC Motor
Capacity(t/h):	50-1000 T/H

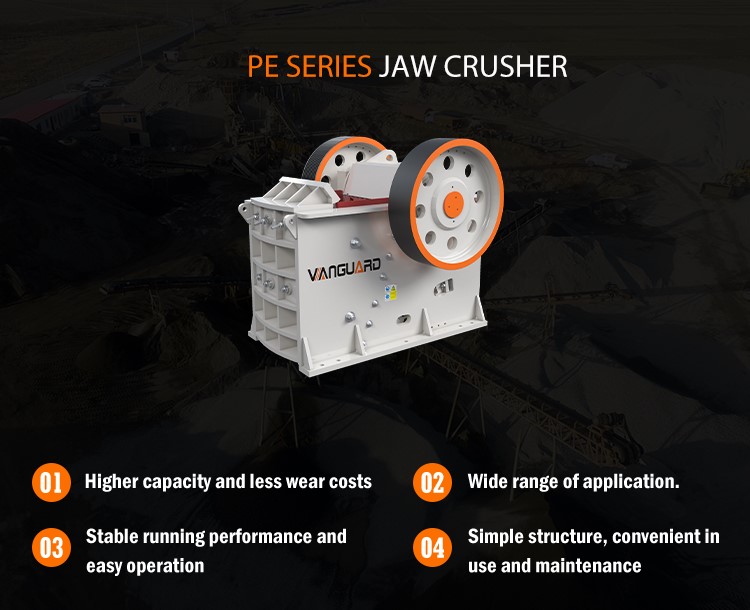

Product Description

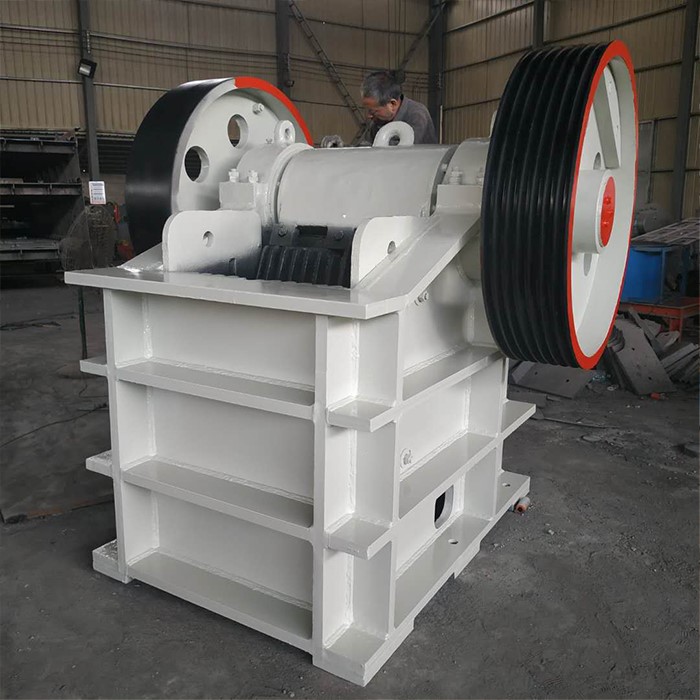

By adopting cast steel rack and swing jaw, PE series product has high strength and long life. Medium and large scale jaw crusher designed by VANGUARD has world-class capacity with many characters like big crushing ratio, uniform particle size, simple structure, reliable working performance easy maintenance, low operation cost and so on. This jaw crusher could be widely used in mining, smelting building material, highway, railway water conservancy and chemical industries, which can crush varieties of materials with a compressive strength no more than 320MPa. The PE series is used for coarse crushing while PEX series for medium and fine crushing.

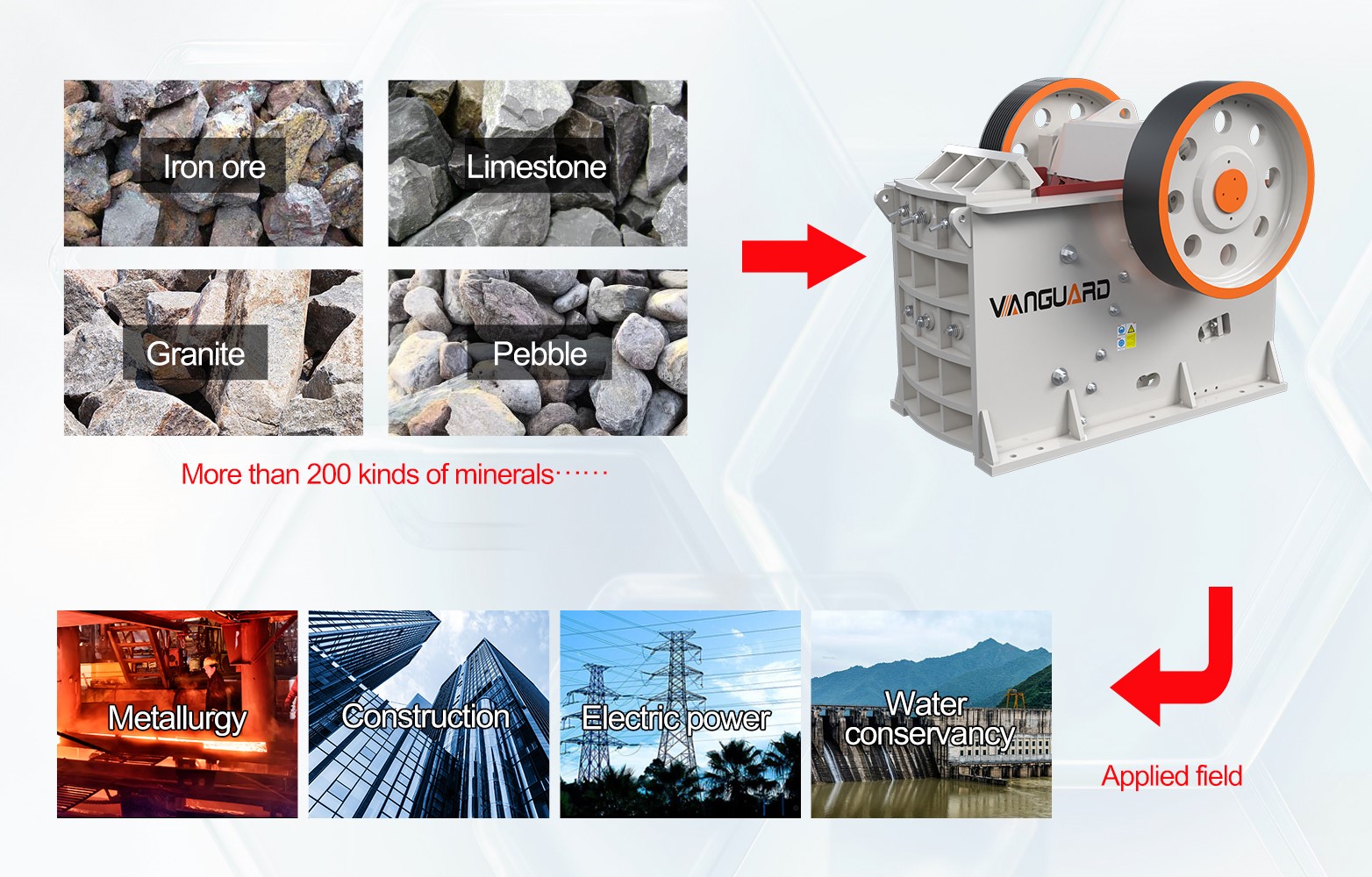

 PRODUCT APPLICATION

PRODUCT PARAMETERS

Model	Size of Feed Opening(mm)	Max.Feeding Size (mm)	Adjustable Size of Discharge Opening(mm)	Capacity (T/H)	Power (KW)
Model	Size of Feed Opening(mm)	Max.Feeding Size (mm)	Adjustable Size of Discharge Opening(mm)	Capacity (T/H)	Power (KW)
PE150×250	150×250	125	10-40	1-3	5.5
PE150×750	150×750	125	18-48	8-25	15
PE250×400	250×400	210	20-60	5-20	15
PE400×600	400×600	340	40-100	16-65	30
PE500×750	500×750	425	50-100	45-100	55
PE600×900	600×900	500	65-160	60-160	75
PE750×1060	750×1060	630	80-160	110-320	110
PE800×1060	800×1060	640	130-190	130-330	110
PE900×1200	900×1200	750	95-210	220-450	132
PE1000×1200	1000×1200	850	200-300	280-560	160
PE1200×1500	1200×1500	1020	150-300	400-800	220
PE1500×1800	1500×1800	1200	210-360	520-1100	280
PEX250×750	250×750	210	25-60	13-35	22
PEX250×1000	250×1000	210	25-60	16-52	30
PEX250×1200	250×1200	210	25-60	20-65	37
PEX300×1300	300×1300	250	20-90	30-105	55

PRODUCT ADVANTAGES

Adopting mono-block cast and and new assembly technology could make it match up with rack perfectly, radial strength is increased.

Unique flywheel design reduces the shock of machine to guarantee stable operation.

Deep crushing cavity, no dead corner. Input size range and capacity are increased;

New oil-way design can match up with oil pump; simple structure, easy maintenance and longer service life.

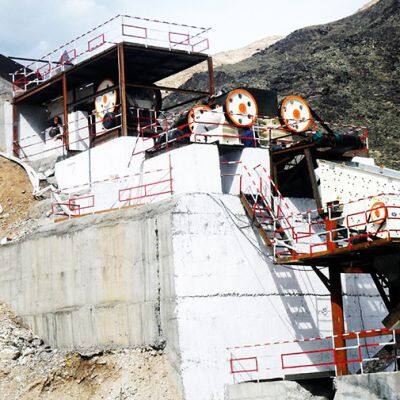

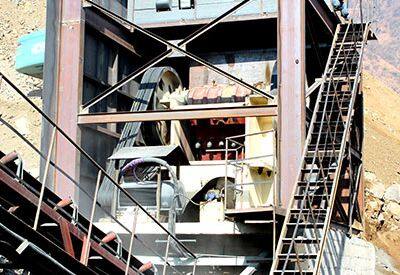

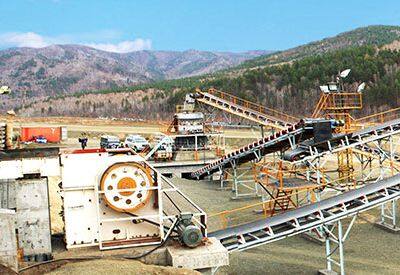

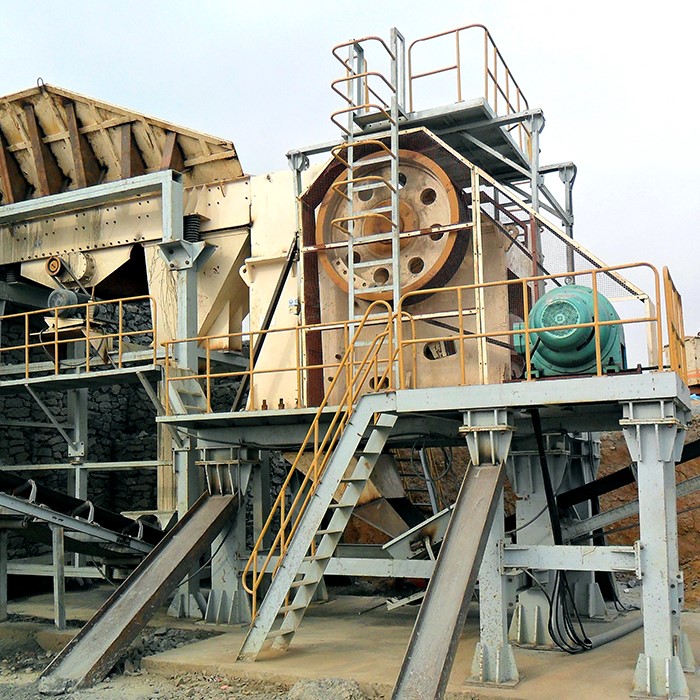

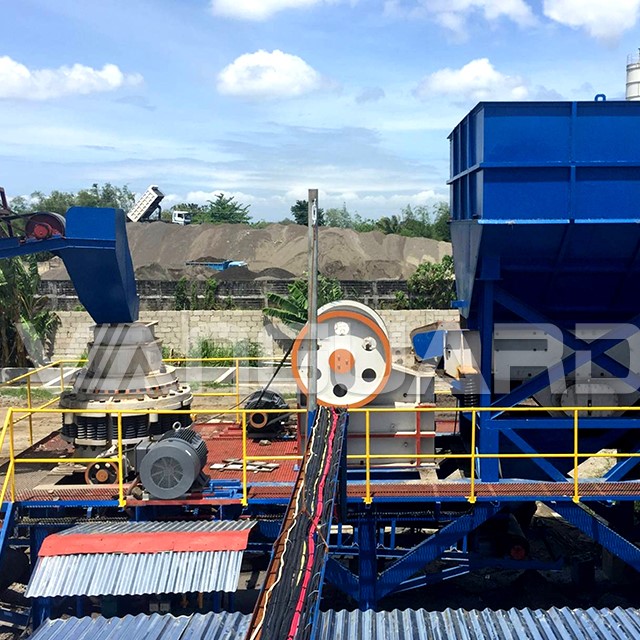

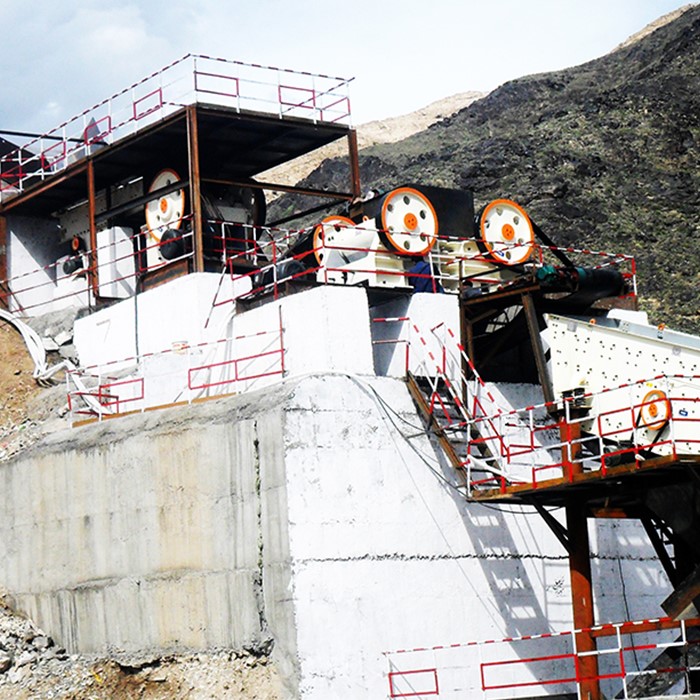

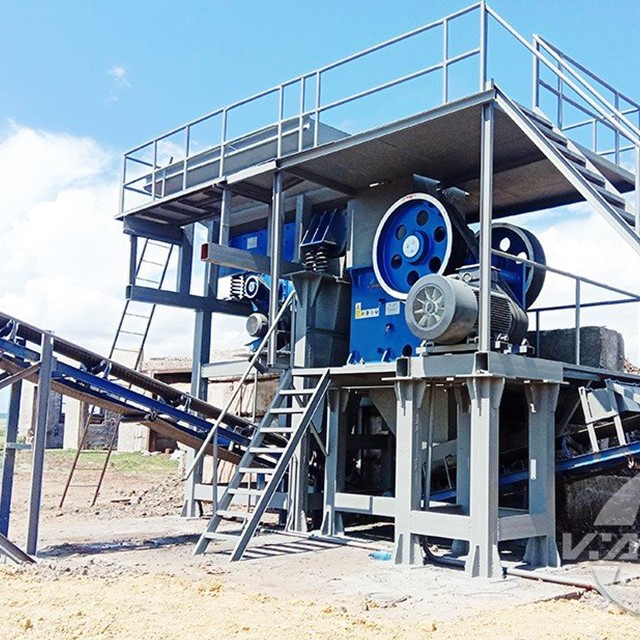

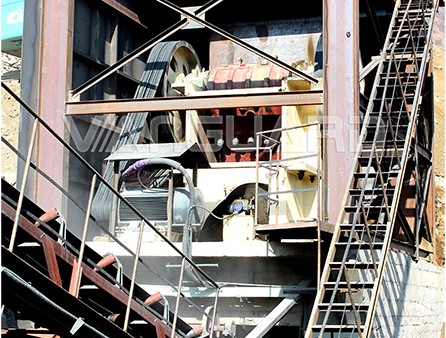

CUSTOMERS' SITES

Packaging and Shipping

About VANGUARD

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, ore beneficiation machine, EPC general contract project, etc. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manafacturer in global mining industry.

Matching of production and support system allows customers to get the best service at the lowest cost.

Qualification

All of our products have passed ISO9001-2008 international quality management system certification, European CE certification and Russia GOST certification, and our company has established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will design the most  suitable proposal based on raw materials.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
