ISO9001 Aggregate Small Mini Rock Jaw Crusher For Mining Limestone River Stone Granite

Name: ISO9001 Aggregate Small Mini Rock Jaw Crusher For Mining Limestone River Stone Granite
Brand: VANGUARD
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	VANGUARD	Place of Origin:	China	Type:	Jaw Crusher
Certification:	ISO9001-2008 international quality management system certification and European CE certification	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	12 months
Application:	stone,ore,coal,sand	Condition:	New	Motor Type:	AC Motor
Capacity(t/h):	60-520T/H

Product Description

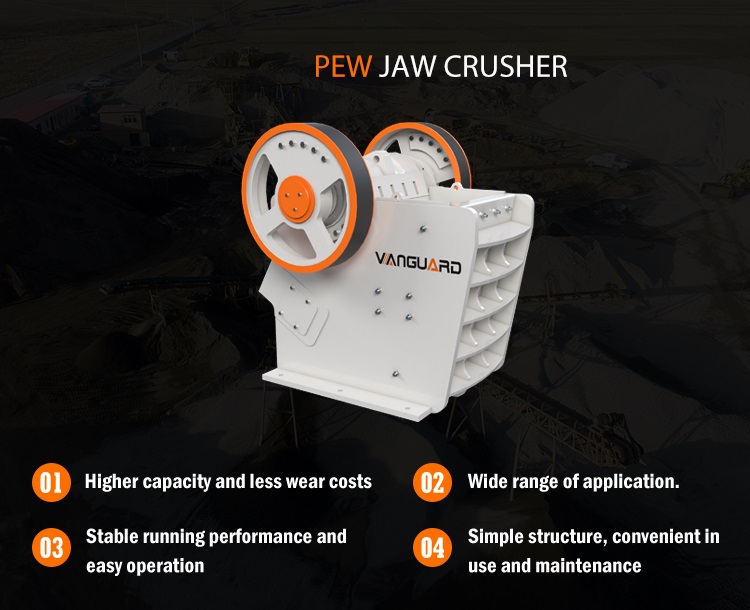

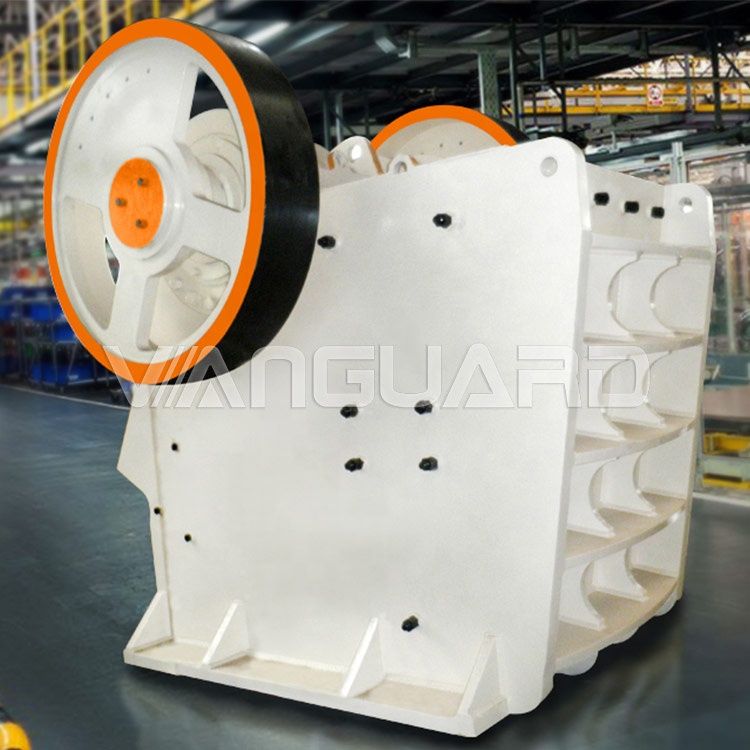

The PEW series hydraulic jaw crusher is a new equipment for crushing hard or abrasive stones. The PEW series hydraulic jaw crushers are sold well in the market because of the disassembly frame without welding structure, double wedge adjusting device, elastic limit damping device and integrated motor base.This jaw crusher could be widely used in mining, building material, highway, railway water conservancy and chemical industries.

PRODUCT PARAMETERS

Model		PEW860	PEW1100	PEW200×1300	PEW250×1000	PEW250×1200	PEW400×600
Feeding Opening(mm)		860×1100	1100×1200	200×1300	250×1000	250×1200	400×600
Feeding Size(mm)		≤720	≤930	≤180	≤220	≤220	≤350
Range of Discharge Opening (mm)		100-225	150-275	10-30	20-40	20-40	35-85
Eccentric Shaft Rotation Speed(rpm)		240	210	320	330	330	250
Capacity(t/h)		200-500	300-650	12-35	15-50	20-50	15-70
Electric Motor	Power (kw)	132～160	185～200	30～37	30～37	37～45	37～45
Electric Motor	Rotation Speed (rpm)	985	740	980	980	980	980
Overall Dimension(L×W×H)(mm)		3300×2320× 3120	4140×2660× 3560	1320×2150× 1175	1400×1850× 1310	1400×2050× 1310	1920×1460× 1840
Weight(kg)		32000	59200	7500	6800	7800	8000

PRODUCT ADVANTAGES

●VANGUARD uses high-quality steel castings for core load bearing parts like moving jaw and bearing block of jaw crusher. ●Deep-cavity design is adopted; the rotary speed is reasonably matched with the optimized nip angle; the maximum output is guaranteed.
● The eccentric shaft is forged by alloy steel and subjected to finish turning, so that its bearing capacity is high.
● Due to the adoption of high-quality bearings and thin oil for lubrication, it has the advantages of long service life, smooth
operation and convenient maintenance.
● Operations such as steel plates' cutting bending planing milling and paint spraying are all controlled numerically. The
machining precision is high especially for the core parts.

Processed Materials:Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble, etc.

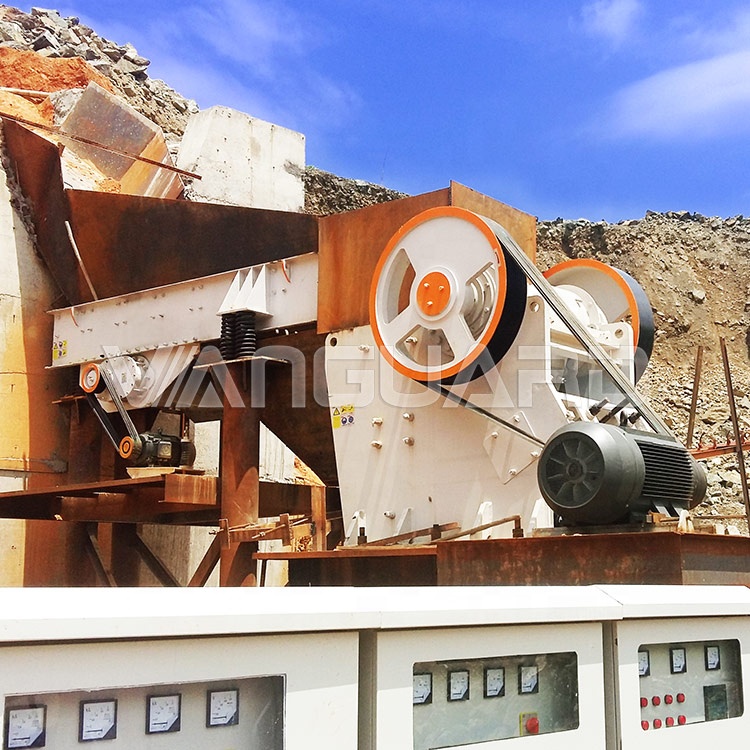

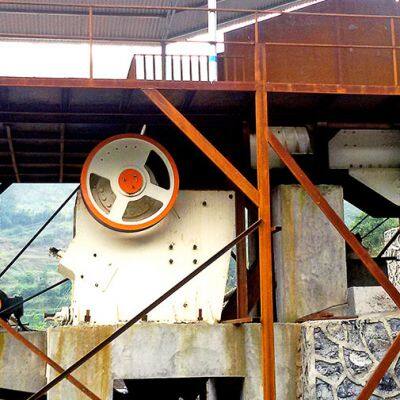

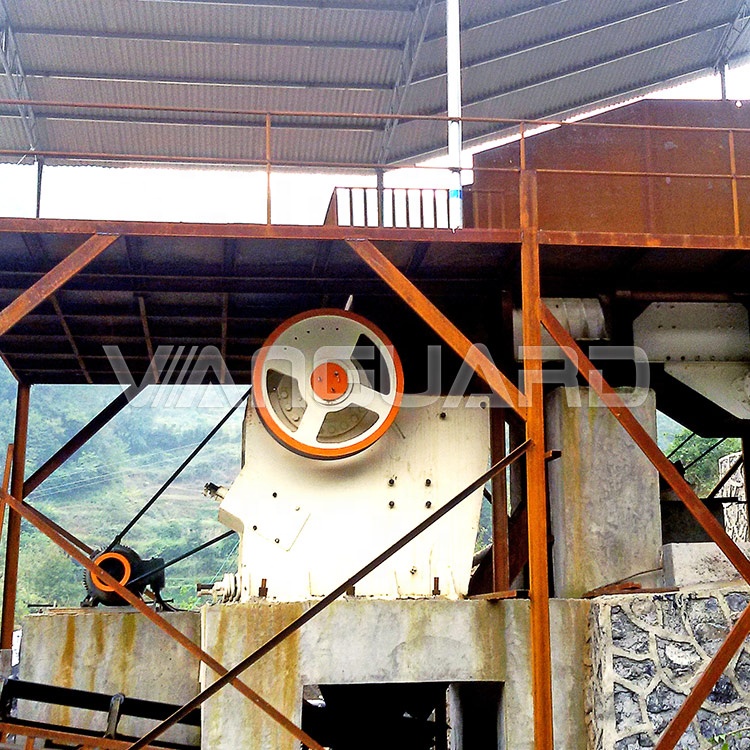

CUSTOMERS' SITES

Packaging and Shipping

About VANGUARD

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.

Matching of production and support system allows customers to get the best service at the lowest cost.

Qualification

Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at the lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most  suitable proposal based on raw materials.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
