Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen

Zhengzhou VANGUARD Machinery Technology Co., Ltd.
Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen thumbnail-1
Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen thumbnail-2
Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen thumbnail-3
Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen thumbnail-4
Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen thumbnail-5
Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen photo-1
Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen photo-2
Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen photo-3
Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen photo-4
Circle Sand Vibration Screen Separator Eccentric Shaft Vibrating Screen photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
VANGUARD
Place of Origin:
China
Certification:
ISO9001-2008 international quality management system certification and European CE certification
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VANGUARD
Place of Origin China
Certification ISO9001-2008 international quality management system certification and European CE certification
Application Ore
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Product Description
YA Series Vibrating Screen is of multiple layers and vibrating circularly. It is of longscreen line, correct to screen in all kinds
of specification products. Our VibratingScreen adopts the the adjustable cylinder exciter ,eccentric shaft and counterweight wheel. It is also of reliable structure, strong exciting force, high screening efficiency low vibrating noise, long durability, convenient maintenance, safe operation, etc. Our Vibrating Screen is widely used for screening in mines building material, transportation, energy sources, chemical industry, etc.
PRODUCT PARAMETERS
Model
Layer of Screen
Size of Sieve Pore (mm)
Max. Feeding Size (mm)
Capacity (m³/h)
Double Amplitude (mm)
Model of Motor
Motor Power (kW)
Screen Specaification (mm)
2YA1548
2
3~100
300
22~160
8
Y160L-4
15
1500×4800
3YA1548
3
3~100
300
22~160
8
Y160L-4
15
1500×4800
4YA1548
4
3~100
300
22~160
8
Y160L-4
15
1500×4800
2YA1848
2
3~100
300
32~276
8
Y180M-4
18.5
1800×4800
3YA1848
3
3~100
300
32~276
8
Y180M-4
18.5
1800×4800
4YA1848
4
3~100
300
32~276
8
Y180M-4
18.5
1800×4800
2YA1860
2
3~100
300
65~586
8
Y180M-4
22
1800×6000
3YA1860
3
3~100
300
65~586
8
Y180M-4
22
1800×6000
4YA1860
4
3~100
300
65~586
8
Y180M-4
22
1800×6000
2YA2160
2
3~100
300
81~720
8
Y200L-4
30
2100×6000
3YA2160
3
3~100
300
81~720
8
Y200L-4
30
2100×6000
4YA2160
4
3~100
300
81~720
8
Y200L-4
37
2100×6000
2YA2460
2
3~150
300
90~810
8
Y225S-4
37
2400×6000
3YA2460
3
3~150
300
90~810
8
Y225S-4
37
2400×6000
4YA2460
4
3~150
300
90~810
8
Y225S-4
37
2400×6000
2YK3072
2
3~200
300
180~1300
8
Y200L-4
30×2
3000×7200
3YK3072
3
3~200
300
180~1300
8
Y200L-4
30×2
3000×7200
Main features:
▲ The annular grooves are rivetedwhich is advanced in structure and durable in operation.
▲ Pinch plate is used to fasten the screens cloth inside vibrating screen, which is firm and easy for replacement▲Screen cloth is high in central and low in both sideswhich enables the materials to scatter onto both sides and improves the screening efficiency.
▲ Adoption of high strength springs allows long service life.▲The screen cloth of high abrasive material allows extended service life.(The polyamine materials also can be used).
▲Bearings are produced by the largest manufacture nationwide(ZWZ) and SKF also can be used. The vibrator with ample clearance bearings has low noise and long service life.
▲Motors are all famous brand:customers can also specify other brands such as Siemens.

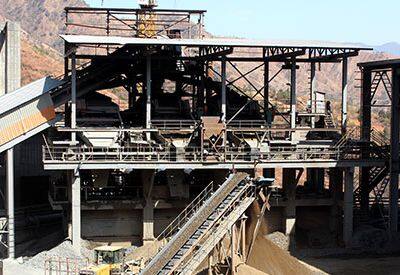

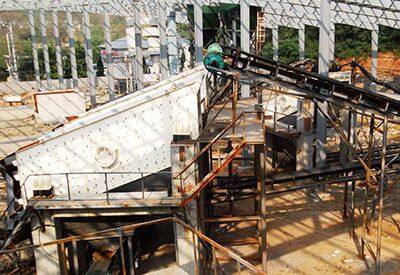

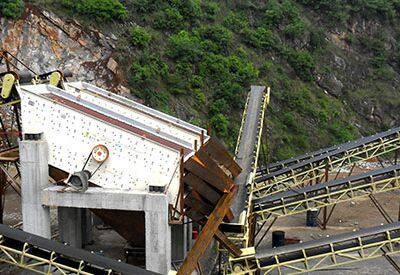

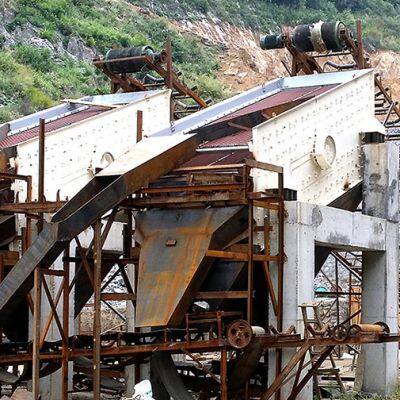

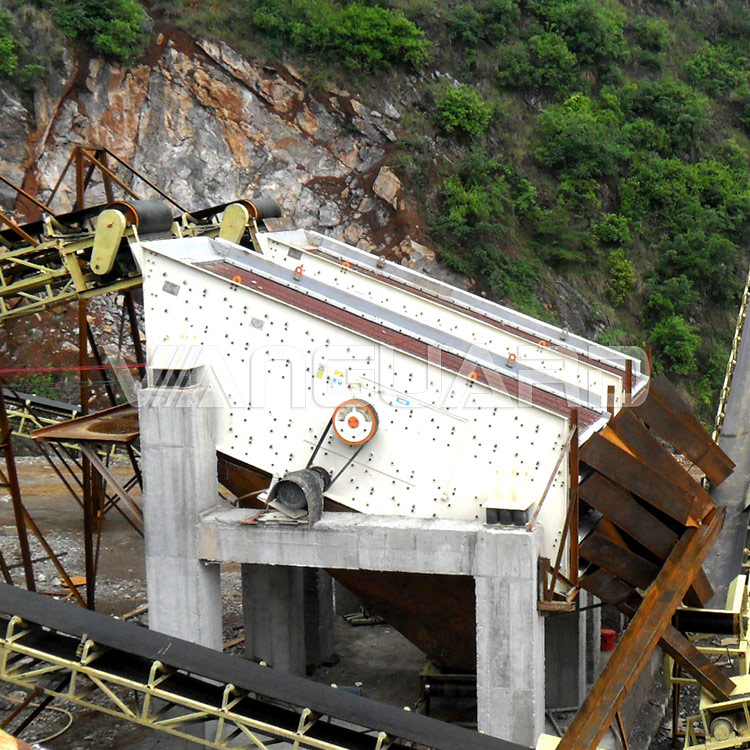

CUSTOMER SITES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get best service at lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at the lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3: Do you supply oversea service?
A: Yes, we do. Engineers available to service machinery overseas.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
