Mechanical Water Flow Meter Flowmeter Portable Electromagnetic Flow Meter
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow
- 15 days
You May Like
-
Side Mounted Magnetic High Temperature Oil Tank Level Sensor Magnetic Level Gauge With 4-20ma Switch Signal Output
-
Portable Handheld Digital Ultrasonic Flow Meter Clamp On Ultrasonic Flowmeter
-
DN10 - DN300 Flowmeter Nitrous Oxide Nitrogen Propane Gas Flow Meter With LCD Display
-
Acrylic Tube Rotameter Water Flow Meter Rotameter Manufacturer Glass Tube Rotameter Flowmeter
-
Magnetic Bypass CO2 Liquid Float Level Indicator UHC Liquid Level Indicator
-
Reflection Level Transmitter Digital Liquid Level Meter Tank Liquid Depth Level Meter For Fuel Tank
Product Details
| Brand Name | Vacorda | Place of Origin | China | |
| Model Number | hkd |
Product Description

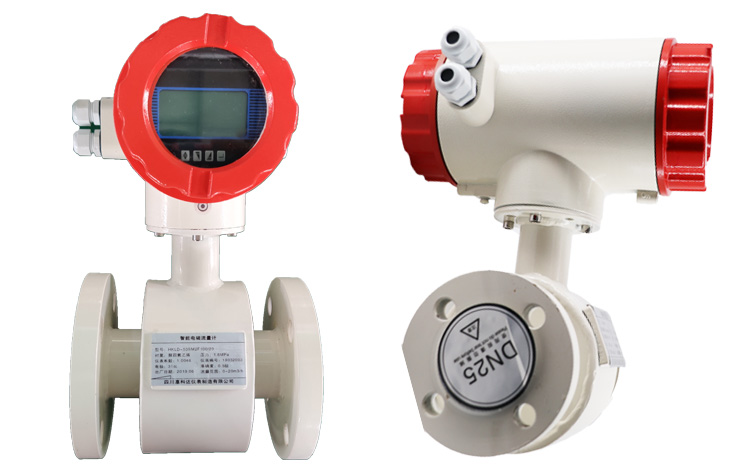

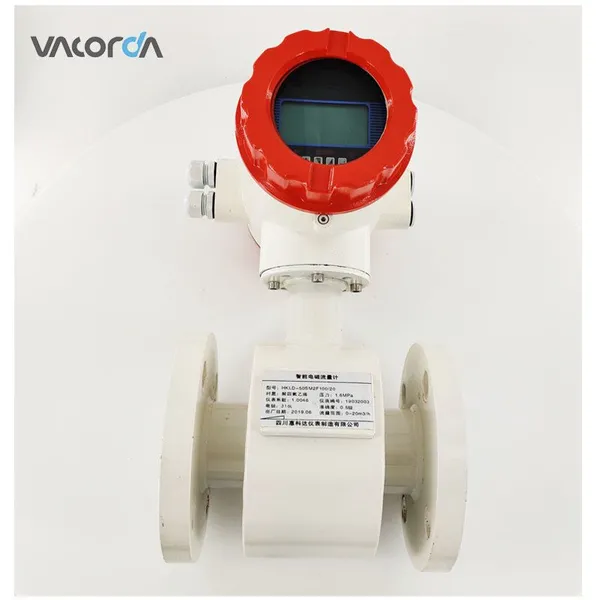

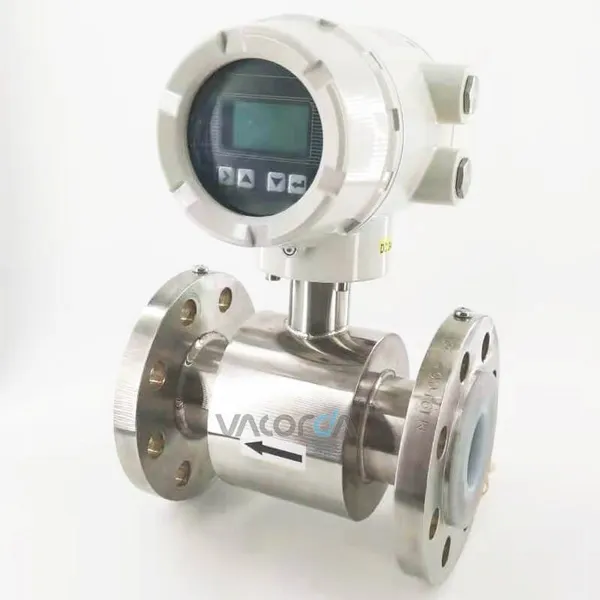

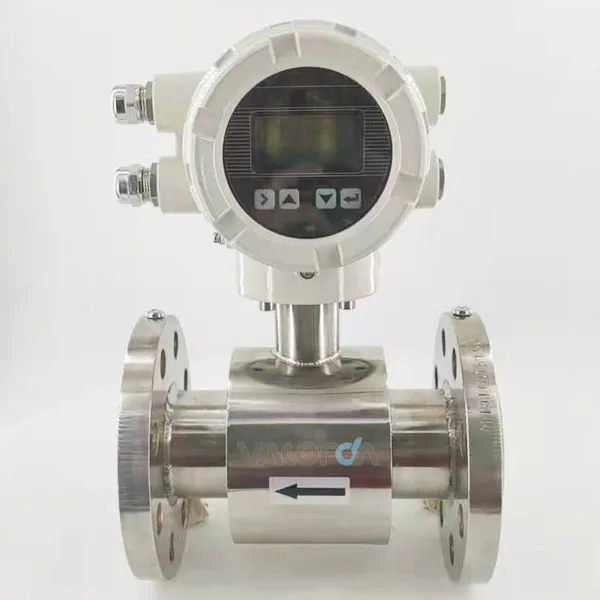

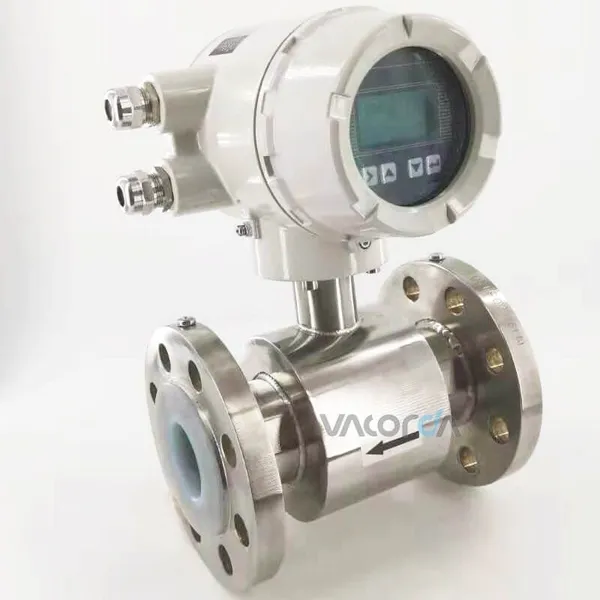

Mechanical water flow meter flowmeter portable electromagnetic flow meter
Why choose us:
1. 23 years of instrumentation equipment production experience
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp provide 24-hour one-on-one technical support service online

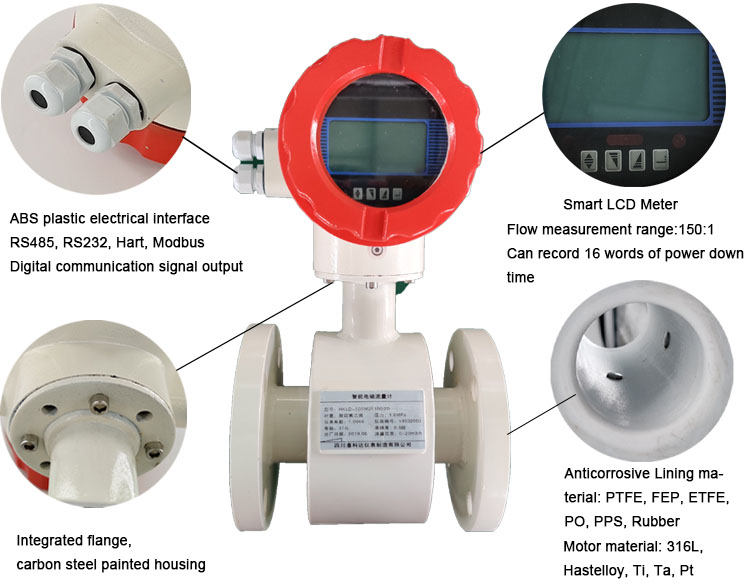

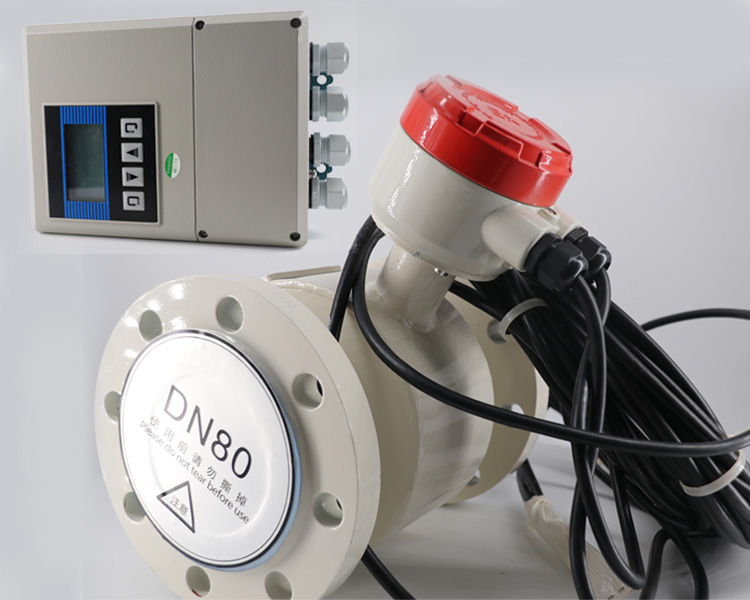

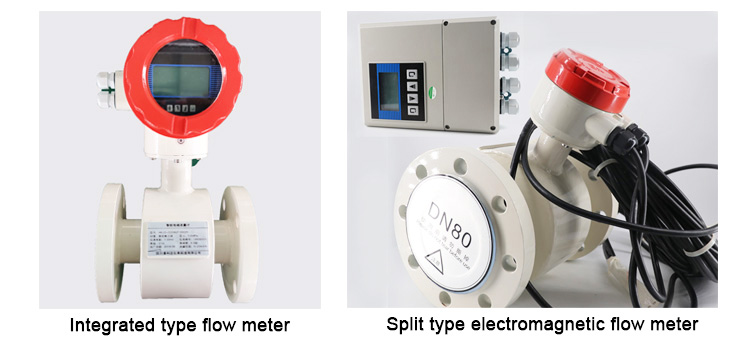

HKLD type intelligent electromagnetic flowmeter is a fully intelligent electromagnetic flowmeter developed by our company using the most advanced technology at home and abroad. Its electromagnetic converter core adopts high-speed central processing unit. The calculation speed is very fast, the precision is high, and the measurement performance is reliable. The sensor adopts non-uniform magnetic field technology and special magnetic circuit structure, the magnetic field is stable and reliable, and the volume is greatly reduced, the weight is reduced, and the flowmeter is characterized by small flow.

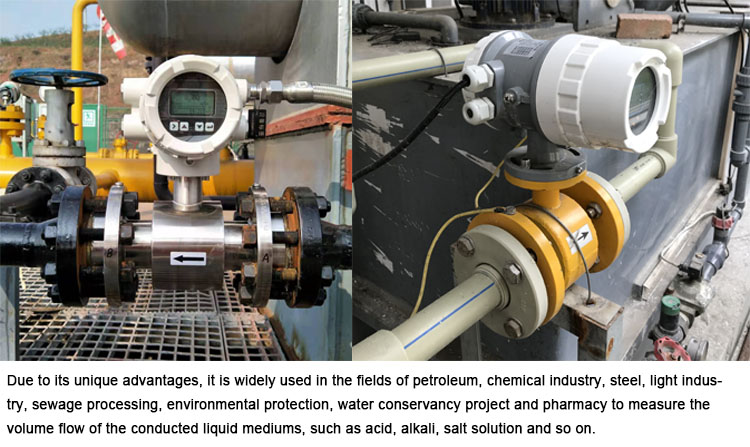

Application:
Product Parameters
Product Name | Electromagnetic Flowmeter |
Repeatability error | +/-0.1% |
Accuracy class | 0.5 class, 1.0 class |
Measured medium temperature | Common rubber lining: -20~+60 ° c |
High temperature rubber lining: -20~+90 ° c | |
PTFE lining: -30~+100 ° c | |
High temperature vinyl lining: -30~+180 ° c | |
Rated working pressure | pipeline: DN10~DN65: ≤ 2.5MPa;DN80~DN150: ≤ 1.6MPa; DN200~DN1200: ≤ 1.0MPa |
Flow rate range | 0.3~15m/s |
Measured fluid conductivity | ≥5μs/cm liquid |
Output | 4~20mA / 4~20mA + Hart |
Electrode material | 316L, titanium (Ti), tantalum (Ta), Hastelloy (H), Platinum (Pt) or other special electrode materials |
Working power supply | 85~265VAC / 24VDC / Battery |
Straight pipe length | pipe: ≥ 5DN in the upper reaches, downstream of greater than or equal to 2DN |
Connections | Flange |
Protection grade | standard: IP65; IP68(optional) |
Explosion-proof mark | mdllBT4 |
Sichuan VACORDA Instruments Manufacturing Co., Ltd.is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.

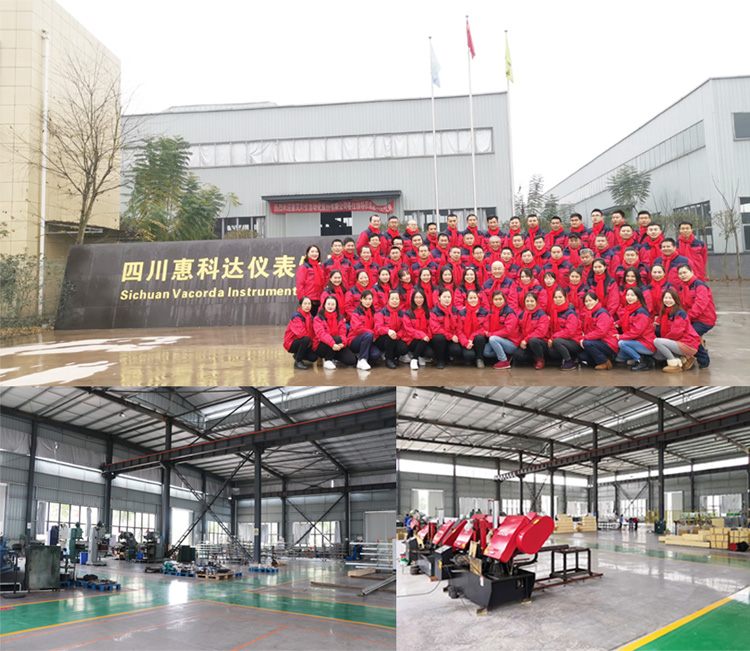

In 2017, we moved into our new factory whhich occupies the area about 20000 square meter, the workshop of 6900 square meter, R&D department of 1180 square meter, integrated office building of 1260 square meter, and we have established the high accuracy flow calibration lines.
Q: The new magnetic flap liquid level gauge can't show liquid level?
A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge?
A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence?
A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ?
A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA?
A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: what's specification we need to know before purchasing magnetic flap liquid level gauge?
A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm.
