Vacorda Customized LED Water Level Indicator Pressure Tank Water Level Indicator Level Sensor For Steam Boiler

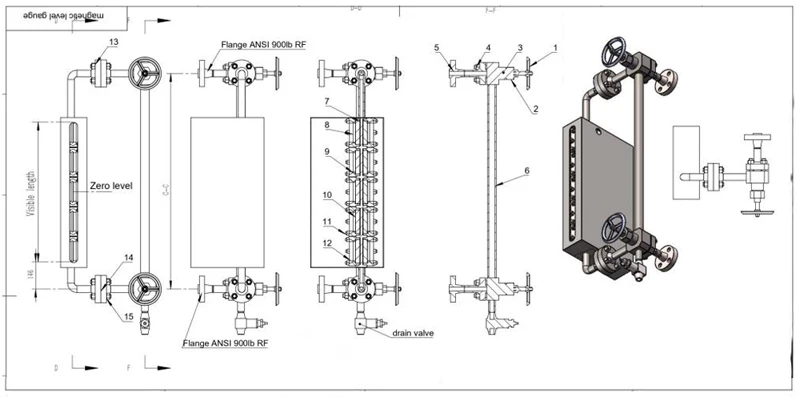

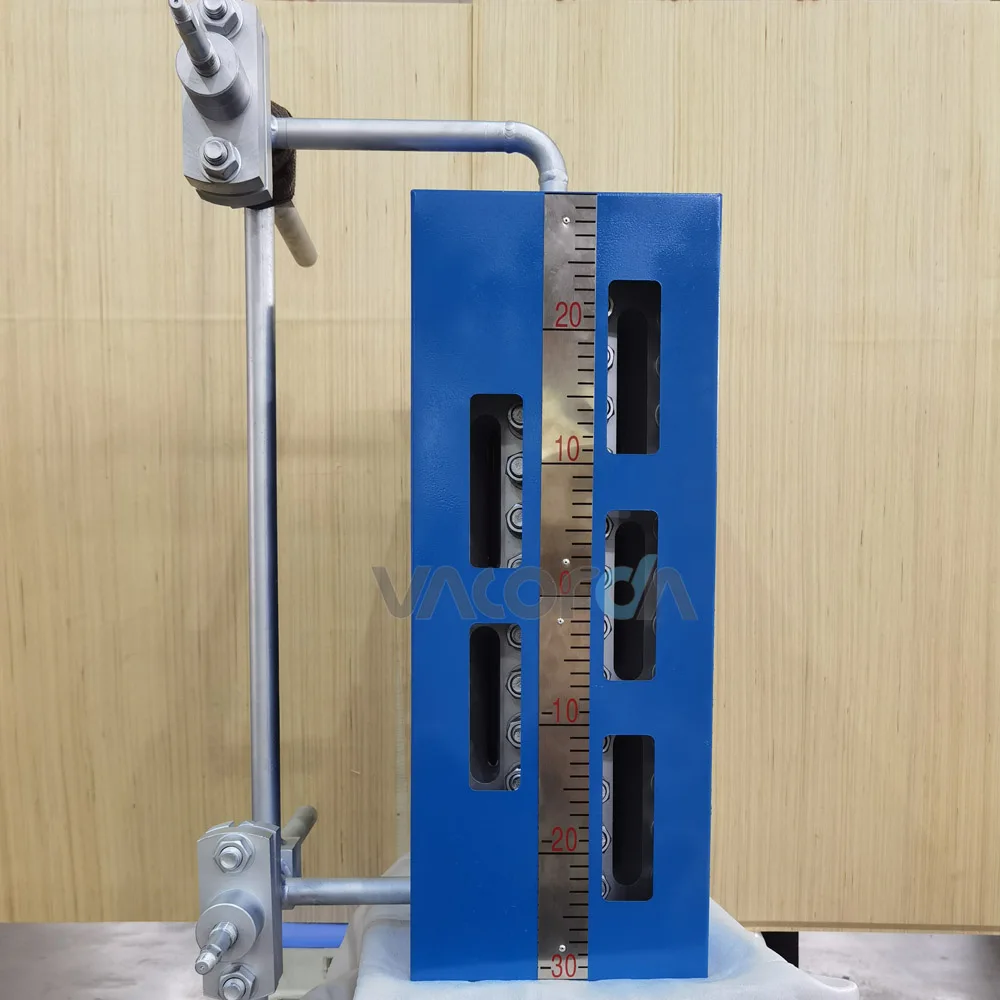

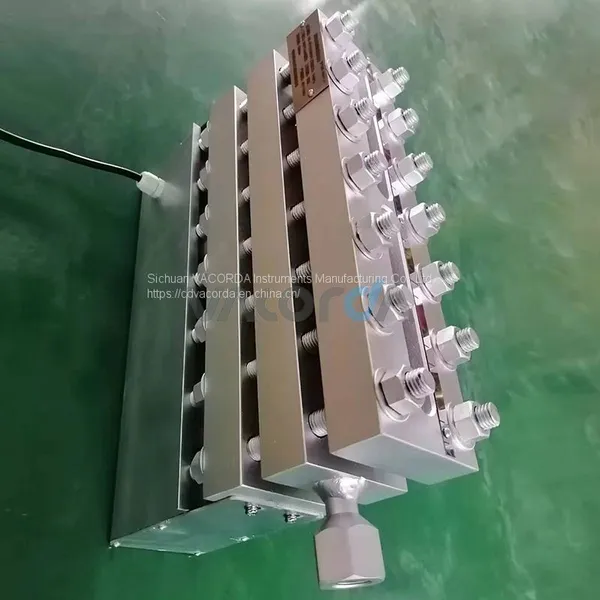

Glass level gauge is divided into three kinds: Transparent type, reflection type and sight glass type. The level gauge is mainly composed by level gauge's body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure.Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen.
Glass level gauge is divided into three kinds: Transparent type, reflection type and sight glass type. The level gauge is mainly composed by level gauge's body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure.Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen.
Applications
Steam Boiler Level Gauge mainly used widely used in petroleum, chemical, electric power, metallurgy and other industries a variety of transparent liquid containers and boilers, water, gasoline, liquefied petroleum gas, ammonia, propane, propylene, aromatics, acids and other oil products and chemical raw materials level measurement
Steam Boiler Level Gauge Features
1. Clear and direct reading, good sealability.
2. High working temperature: ≤+450°C
3. High working pressure: ≤PN100
4. Long lifetime, simple structure, easy installation and maintenance
Steam Boiler Level Gauge Technical Parameters:
Recommended center-center distance: |
300, 500, 800, 1100, 1400,1700,2000mm(custom made) |
Indicate mode: |

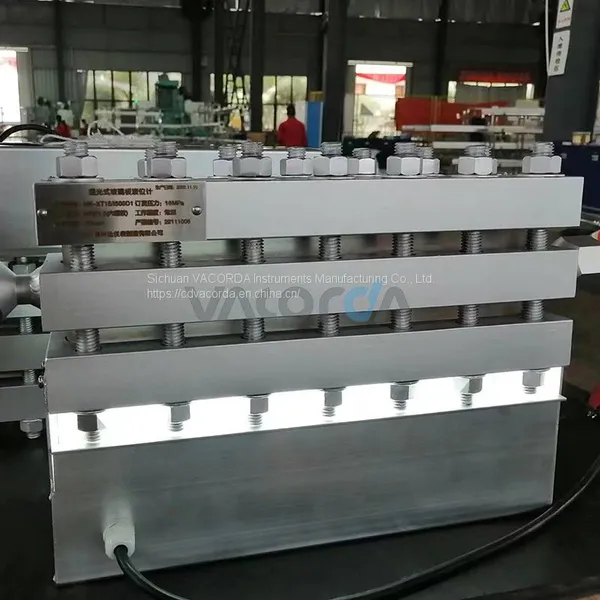

single color, bicolor(red as vapor phases, green as liquid) |
Material: |
carbon steel, 304,316L, 1Cr18Ni9Ti, 0Cr18Ni9, 304 with PTFE lining |
Nominal pressure: |
PN6-PN100(×0.1MPa) |
304 +PTFE≤PN40 | |
PP≤100°C | |
Working temperature: |
carbon steel ≤350°C |
Stainless steel ≤450°C | |
304+PTFE ≤200°C | |
PP≤100°C | |
Drain valve: |
drain needle valve (or customize) |
Vent valve: |
vent needle valve (or customize) |
Process flange: |
DN20/RF HG/T 20592-09 |
The heat steam interface: |
ZG1/2"male screw thread |
The heat steam pressure: |
≤1.0Mpa |
Eclectic heating: |
self-limiting temperature heating (unnecessary for anticorrosive type) |
Steel ball self-closing pressure: |
≥0.3Mpa |

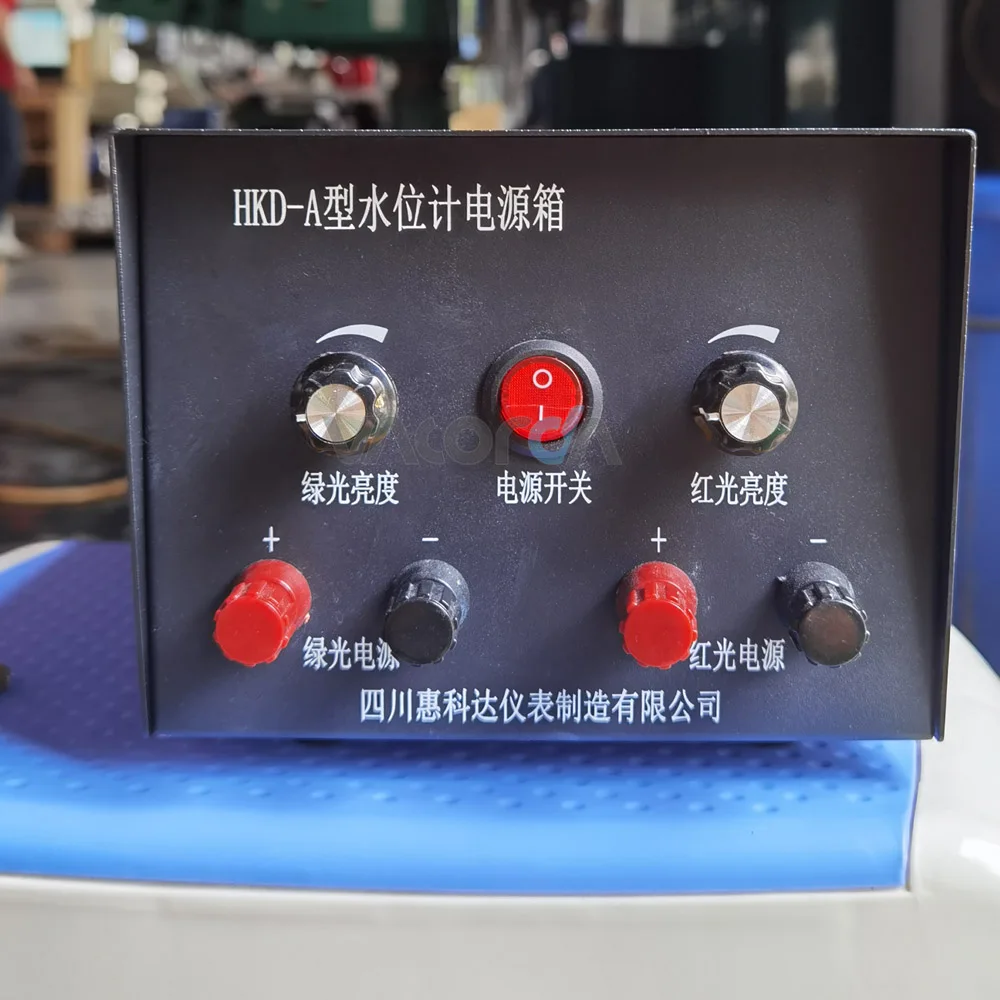

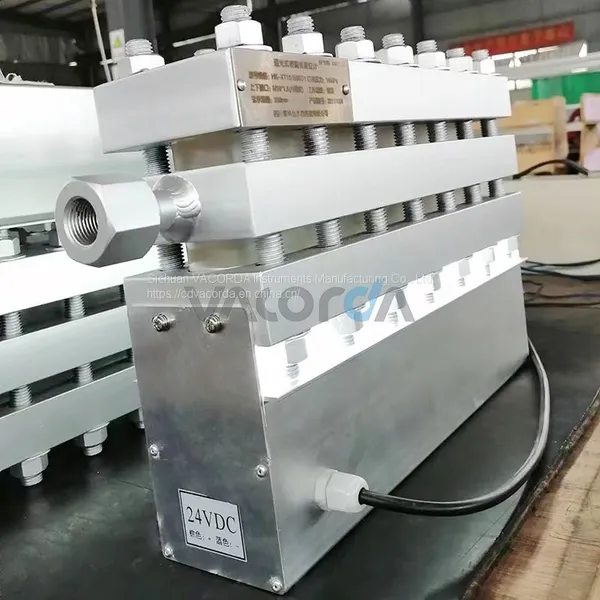

Power supply: |
24V DC, 36V AC |
Environment temperature: |
-50~+80°C |
Sichuan VACORDA Instruments Manufacturing Co., Ltd.is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
In 2017, we moved into our new factory whhich occupies the area about 20000 square meter, the workshop of 6900 square meter, R&D department of 1180 square meter, integrated office building of 1260 square meter, and we have established the high accuracy flow calibration lines.
Our company has got the ISO9001: 2000 international quality system certification in 2005, Import and export trading right in 2012, total 12 patents till 2016, the title of “national high-tech enterprise” and CE certificate for three categories product in 2014. Our company has owned trade marks as “vacorda”. At the same time, our company is preparing for more certificates for foreign market, such as IECEX, API, UL and so on, to lay a foundation for further international market.
Workshop and Skilled Workers
Certification and Equipment
Why Choose Us:
1. 23 years of instrumentation equipment production experience
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp 24-hour one-on-one technical support service online
Q: The new magnetic flap liquid level gauge can't show liquid level?
A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge?
A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence?
A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ?
A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA?
A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: What's specification we need to know before purchasing magnetic flap liquid level gauge?
A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm.
