Acrylic Tube Rotameter Water Flow Meter Rotameter Manufacturer Glass Tube Rotameter Flowmeter
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
-
Magnetic Bypass CO2 Liquid Float Level Indicator UHC Liquid Level Indicator
-
Reflection Level Transmitter Digital Liquid Level Meter Tank Liquid Depth Level Meter For Fuel Tank
-
Non Contact Portable Wireless Ultrasonic Water Tank Liquid Depth Level Meter
-
Transparent Sight Glass Plate Water Liquid Fuel Oil Tank Level Gauge Meter Sensor Indicator
-
Vacorda Customized LED Water Level Indicator Pressure Tank Water Level Indicator Level Sensor For Steam Boiler
-
Water Level Controller Plastic Fuel Tank Liquid Float Level Switch For Sewerage Sludge
Product Details
Brand Name: | VACORDA | Place of Origin: | China | Model Number: | hkdwj |
Product Description
Acrylic Tube Rotameter Water Flow Meter Rotameter Manufacturer Glass Tube Rotameter Flowmeter
Why choose us:
1. 23 years of instrumentation equipment production experience
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp provide 24-hour one-on-one technical support service online

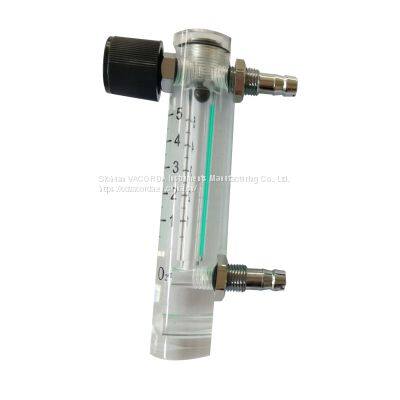

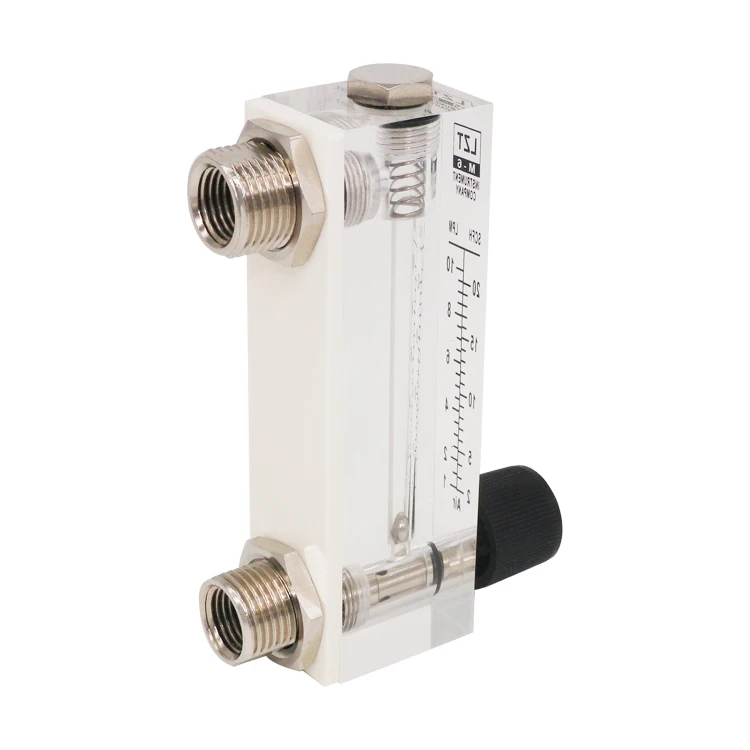

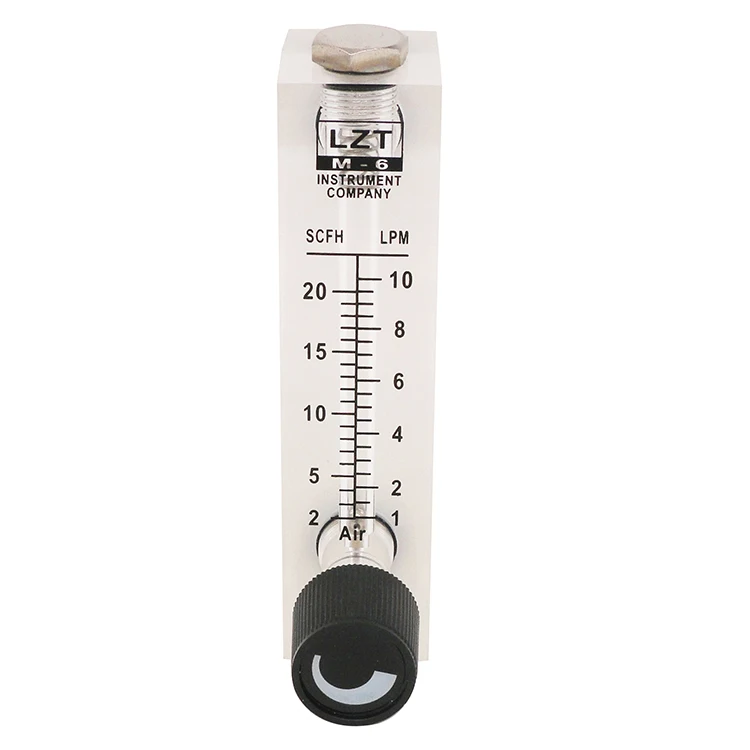

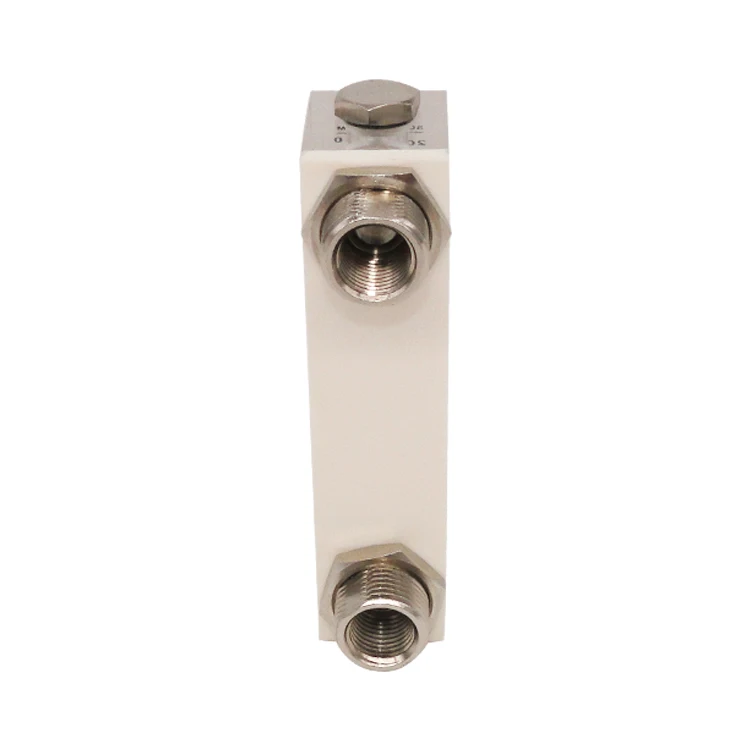

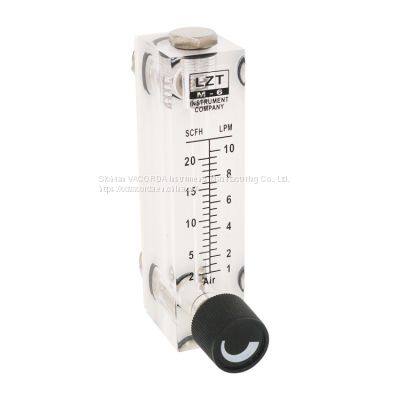

The LZM series panel mounted rotameter is a plexiglass-based flowmeter that measures the flow of a single phase non-pulsating liquid or gas. It is featured with beautiful appearance, light weight, unbreakable and long life span.
Product Parameters
Technical Parameter of LZM Series Panel Flow Meter | |||||||||||||
Model Number | Measuring Range | Interface Thread | Accuracy | Dimensions | |||||||||
Liquid (ml/min) | Gas (l/min) | A | B | C | D | E | F | ||||||
LZM-4T | 6-60 8-80 30-120 40-400 | 0.05-0.5 0.1-1 0.2-2 0.25-2.5 0.6-6 1-4 1-5 1-10 1-12 |
Φ6 Push-in Connection |
±4% |
94 |
27 |
21 |
14 |
14 |
70 | |||
LZM-6T | 6-60 10-70GPH 16-160 25-250 80-400 100-500 100-600 200-800 100-1000 | 0.1-0.8 0.1-1.5 0.1-1 0.3-3 0.4-4 0.5-8 1-5 1-12 2-10 2-20 3-15 3-30 4-20 5-25 6-30 10-60 10-70 10-100 0.05-0.25m3/h 0.04-0.4m3/h |
Internal Thread G1/4” |
102 |
30 |
25 |
20 |
M18X1.5 |
77 | ||||
LZM-8T | 2.5-25LPH 5-45LPH 6-60LPH | 0.16-1.6 m3/h 0.1-1 m3/h 0.2-2 m3/h | 110 | 25 | 25 | 20 | M18X1.5 | 80 | |||||
Component Material and Code of LZM Series Panel Flow Meter | |||||||||||||
Regulator Valve | Regulator Material | Connector material | O-ring Material | ||||||||||
T-with O-without | 1. brass 2. stainless steel
| 1. ABS 2. PP 3. PVC 4. brass 5. chrome-plated brass 6. stainless steel | 1. silicone ring 2. fluorocarbon rubber 3. nitrile rubber |
Sichuan VACORDA Instruments Manufacturing Co., Ltd.is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
Our company has got the ISO9001: 2000 international quality system certification in 2005, Import and export trading right in 2012, total 12 patents till 2016, the title of “national high-tech enterprise” and CE certificate for three categories product in 2014. Our company has owned trade marks as “vacorda”. At the same time, our company is preparing for more certificates for foreign market, such as IECEX, API, UL and so on, to lay a foundation for further international market.
Our main products as follow
1. Magnetic level gauge, magnetic level switches, magnetic level controllers, bicolor quartz tube level gauge, boiler water level gauge and glass plate liquid level gauge, capacitance level gauge, ultrasonic level transmitter, radar level transmitter and liquid (material) level switch series;
2. Wedge-shaped flow meter, metal rota-meter, V Cone flow meter, throttling device, electromagnetic flow meter, vortex flowmeter, turbine flowmeter, ultrasonic flowmeter;
3. Pressure transmitter, differential pressure transmitter series;
4.Temperature transmitter, bimetallic thermometer, thermocouple, rtd series.
Q: The new magnetic flap liquid level gauge can't show liquid level?
A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge?
A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence?
A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ?
A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA?
A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: what's specification we need to know before purchasing magnetic flap liquid level gauge?
A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm
