Non Contact Portable Wireless Ultrasonic Water Tank Liquid Depth Level Meter
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
- Transparent Sight Glass Plate Water Liquid Fuel Oil Tank Level Gauge Meter Sensor Indicator
- Vacorda Customized LED Water Level Indicator Pressure Tank Water Level Indicator Level Sensor For Steam Boiler
- Water Level Controller Plastic Fuel Tank Liquid Float Level Switch For Sewerage Sludge
- Reflection Level Transmitter Digital Liquid Level Meter Tank Liquid Depth Level Meter For Fuel Tank
- Magnetic Bypass CO2 Liquid Float Level Indicator UHC Liquid Level Indicator
- Acrylic Tube Rotameter Water Flow Meter Rotameter Manufacturer Glass Tube Rotameter Flowmeter
Product Details
Brand Name: | Vacorda | Place of Origin: | China | Model Number: | hkd |
Product Description

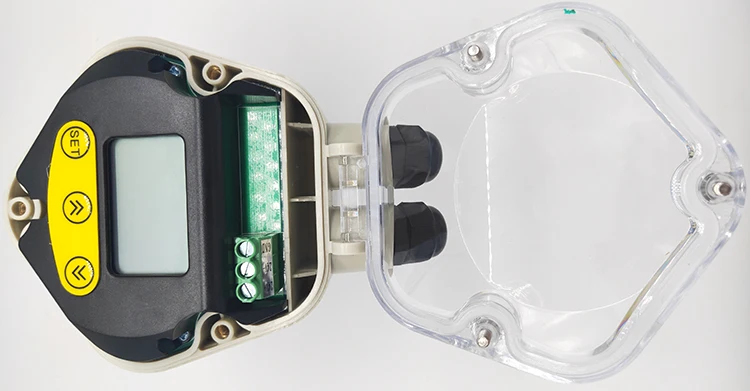

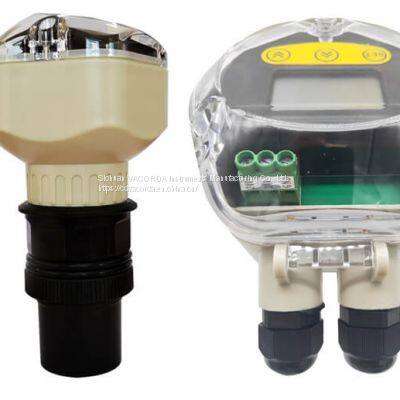

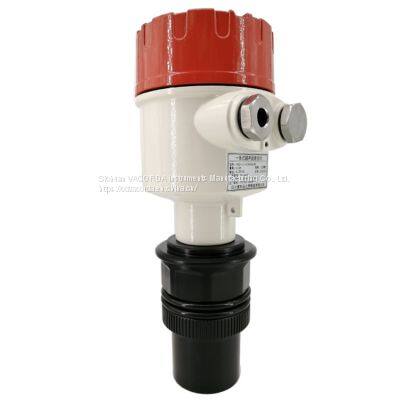

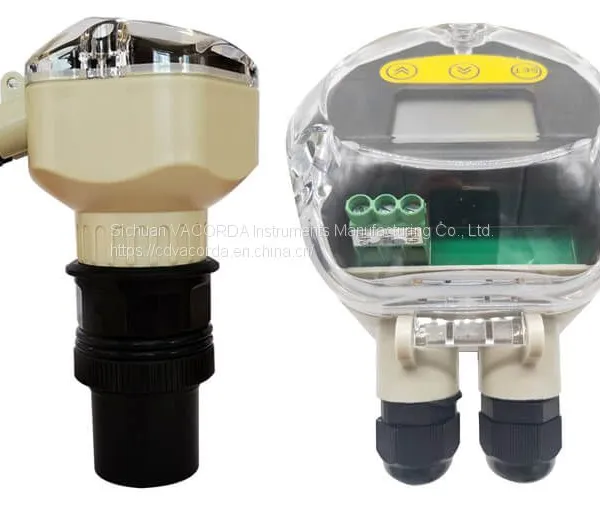

Non Contact Portable Wireless Ultrasonic Water Tank Liquid Depth Level Meter

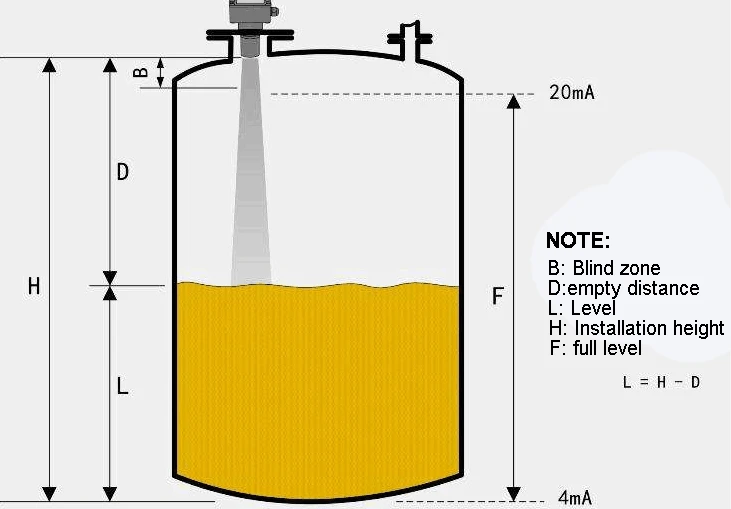

In the measurement, the ultrasonic pulse is emitted by the sensor, the sound wave is received by the same sensor after being reflected by the liquid or solid surface, and converted into an electrical signal by the piezoelectric crystal, and the time between the transmission and reception of the sound wave is calculated from the sensor to the liquid being measured The distance between the surfaces.
Product features
1. Security: When measuring liquid with poison, explosion, corrosion, stress, easily volatile, easily leak, it does not use valves, pipe, joint. It is without leak source, and not contact tank of liquid and gas. It is very safe. Even in the state of instrument damage or maintenance, there is no possibility of leakage, poisoning or explosion.
2. Hygiene: Don’t contact with liquid (wine making, beverage, milk production, storage tanks, pipes) in the detection and monitoring projects, and no pollution.
3. Installation and maintenance convenient: installation is no fire, no clear tank, and no impact on production.
Design
Technical Parameters
(1)Power supply: | DC20~32V |
(2)Output: | DC4~20mA |
(3)Working temperature: | -40℃~+75℃ |

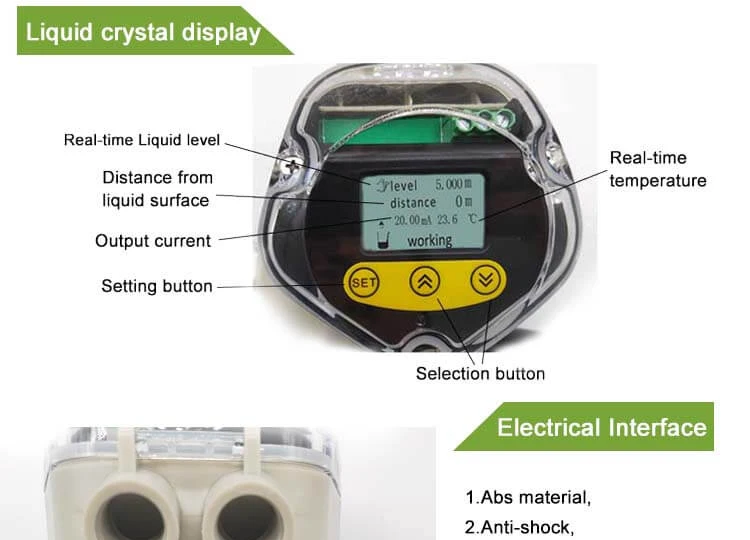

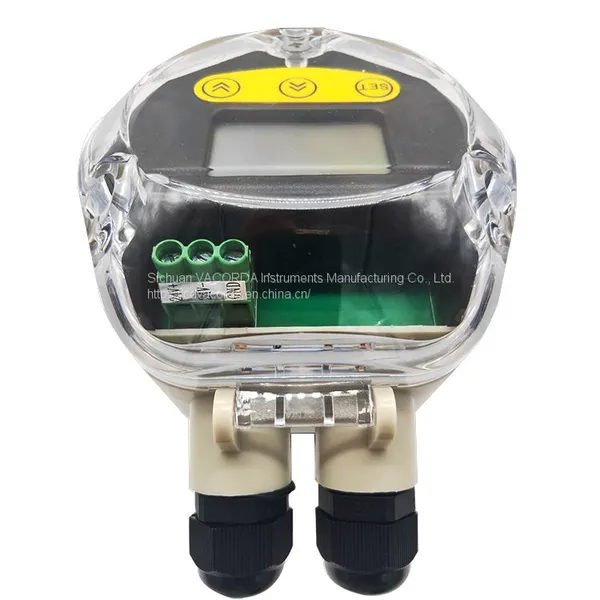

(4)Mode of indication: | 4 digit LCD |
(5)Parameter set up: | 3 induction buttons |
(6)Mode installation: | Whorl, Flange |
(7)Accuracy: | 0.2% Span(in air) |
(8)Beam angle: | 8°, 5° (3db) |
(9)Pressure range: | ±0.1MPa |
(10)Protect grade: | IP67 |
For range of 20m, 30m, 40m, the size of orifice on tank should be more than that of DN200 flange. And the length of the connection pipe under the flange shou.

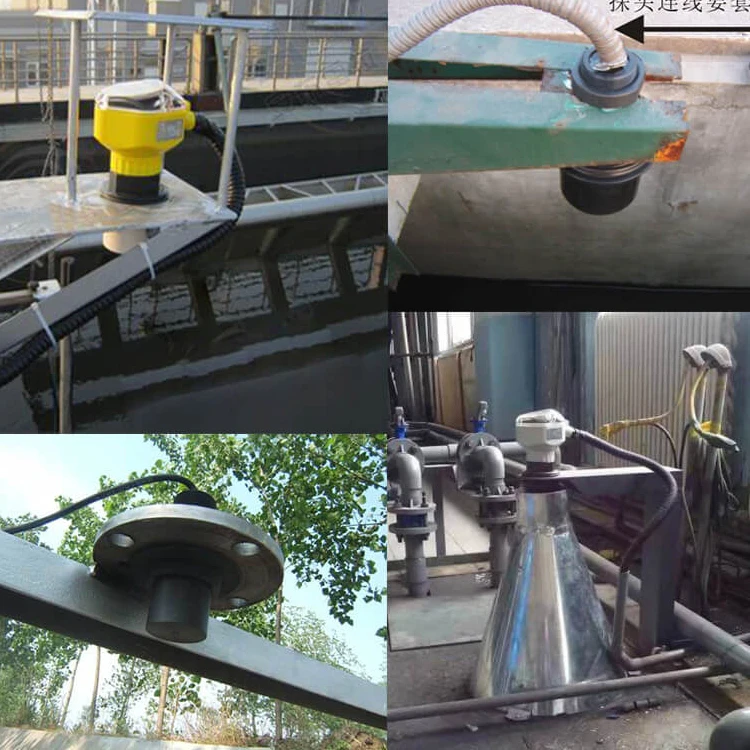

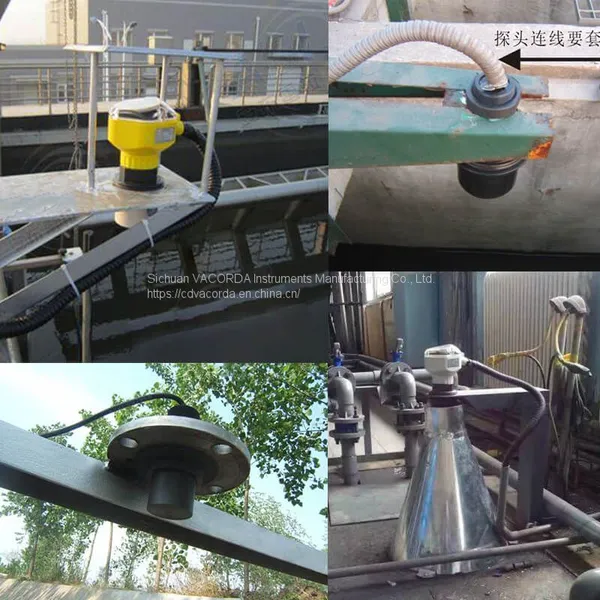

Installation
For Tank
For range less than 8 m, the size of orifice on tank should be more than of DN65 flange.
For range of 10m an12m, the size of orifice on tank should be more than that of DN100 flange. And the length of the connection pipe under the flange should be less than 20m
For range of 15m, the size of orifice on tank should be more than that of DN150 flange. And the length of the connection pipe under the flange should be less than 20m
For open pond:fixing stand should be needed.

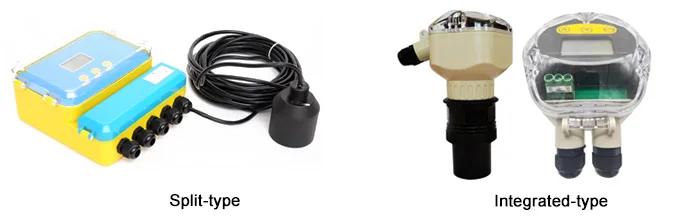

Continuous non-contact level measurement with compact version
Integrated design, installed conveniently;
Protected in the excessive voltage and current , protected in the thunder and lightning;
The big show window of LCD is easy to debug and observe;
Excellent anti-interference capability;
4-20mA output;
Intellectual signal treatment technology, guarantee that the instrument meets various kinds of operating occasion

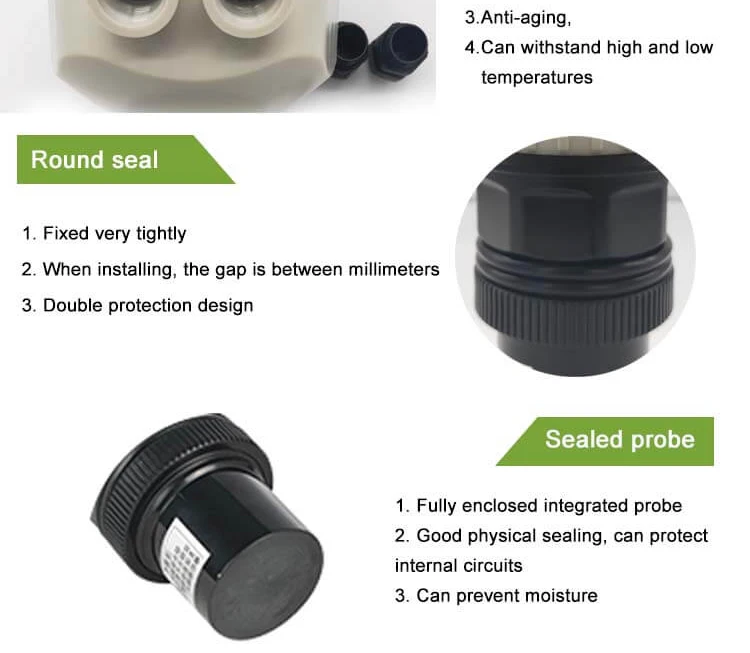

All metal outer cover (IP67), airproof and alkali-resisting, meet the abominable environment.
Sichuan VACORDA Instruments Manufacturing Co., Ltd.is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
In 2017, we moved into our new factory whhich occupies the area about 20000 square meter, the workshop of 6900 square meter, R&D department of 1180 square meter, integrated office building of 1260 square meter, and we have established the high accuracy flow calibration lines.
Our company has got the ISO9001: 2000 international quality system certification in 2005, Import and export trading right in 2012, total 12 patents till 2016, the title of “national high-tech enterprise” and CE certificate for three categories product in 2014. Our company has owned trade marks as “vacorda”. At the same time, our company is preparing for more certificates for foreign market, such as IECEX, API, UL and so on, to lay a foundation for further international market.

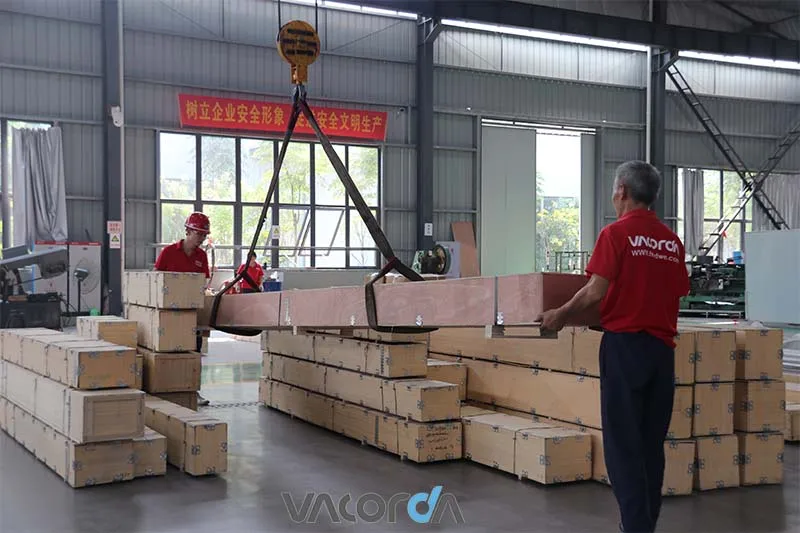

Workshop and Skilled Workers
Certification and Equipment
Why Choose Us:
1. 23 years of instrumentation equipment production experience
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp 24-hour one-on-one technical support service online
Q: The new magnetic flap liquid level gauge can't show liquid level?
A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge?
A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence?
A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ?
A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA?
A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: What's specification we need to know before purchasing magnetic flap liquid level gauge?
A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm
If you have any other questions about the ultrasonic level sensor, plz feel free to contact Elena.
