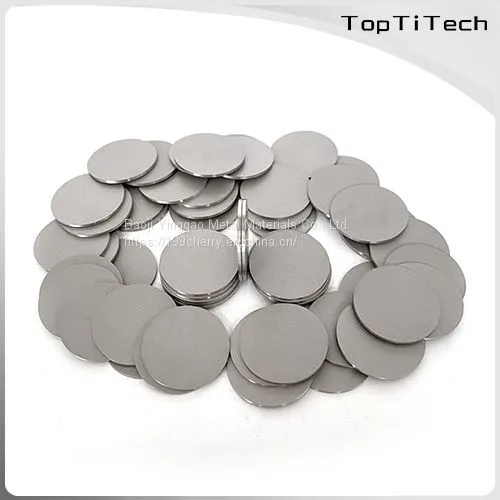

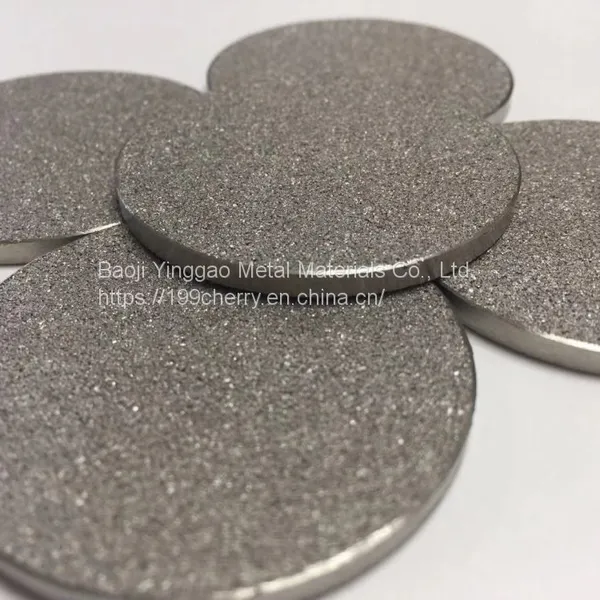

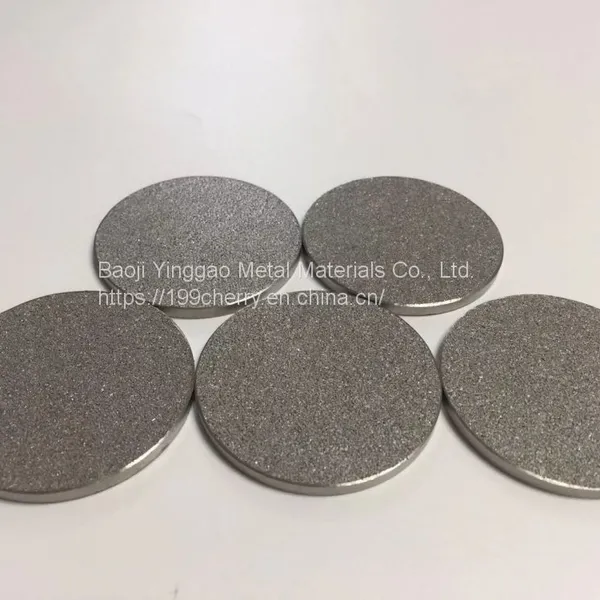

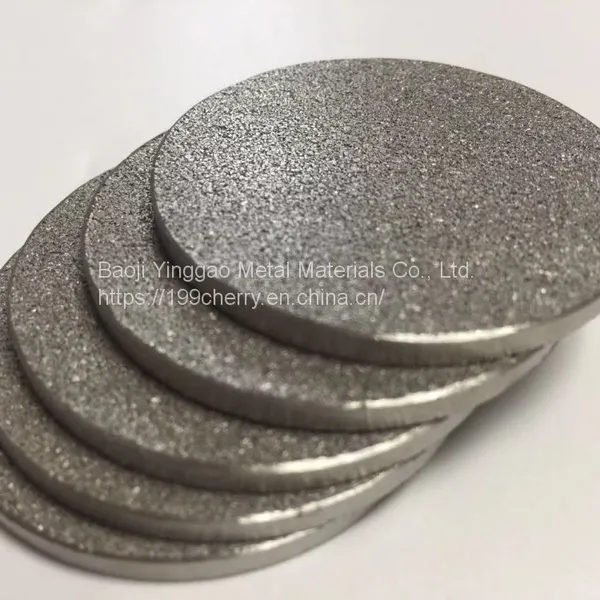

Sintered stainless steel filter discs

Sintered stainless steel filter discs, also called sintered metal porous filters, adopt stainless steel 316, 316L powder as raw materials and then produced through sizing, molding and sintering processes.

Sintered stainless steel filter discs have found widespread use in industries such as environmental protection, petroleum, natural gas, chemical, environmental detection, instrumentation, pharmaceutical equipment, and others.

Product Parameters

Material:304, SS 316L, stainless steel

Max pressure:5MPa

Max temperature:600 degree

Types:disc, plate, cup, tube cartridge, irregular

Diameter Size:2.0 mm to 450 mm

Height Size:1.0 mm to 100 mm

Pore Size:stainless steel (0.2-120um)

Product Features

1. Superior to conventional metal filter materials in terms of shape stability, impact resistance, and alternating load capacity.

2. Air permeability, with a stable separation effect；

3. High loading and unloading strength, making it suited for usage in high temperature, high pressure, and corrosive situations；

4. Particularly suited to high-temperature gas filtration;

5. Products of various shapes and precision can be customized according to user requirements, and can also be used for various interfaces by welding.

Applications

When the filter cake on the surface of the sintered metal powder filter element reaches a certain thickness, due to its high-strength performance characteristics, the filter element can be cleaned by backwashing or backflushing through a certain reverse pressure, so that the filter element can be used again. . Because of its many characteristics and the characteristics of repeated cleaning and reuse, it is widely used in water treatment, petrochemical filtration, seawater desalination, chemical filtration, resin and coating, hydroelectric power generation and other fields.
