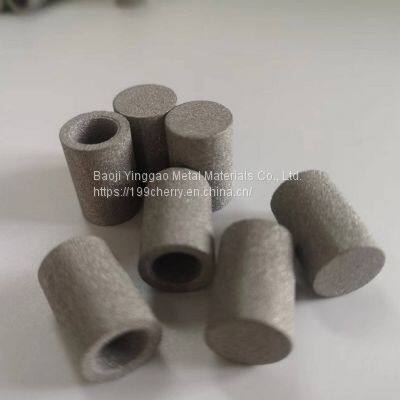

Sintered 5 Microns Porous Stainless Steel Filter

Sintered 5 Microns Porous Stainless Steel Filter from TOPTITECH is a type of filter made from stainless steel powder that has been sintered, or fused together, to form a porous structure. The process of sintering involves heating the stainless steel powder to a high temperature, just below its melting point, to fuse the particles together without completely melting them.

The pore size and distribution of sintered porous stainless steel filters can be controlled during the manufacturing process. This enables filters to be tailored for specific applications, such as filtering out large particles or removing smaller contaminants.

Sintered 5 micros porous stainless steel filters from TOPTITECH are made from high-quality stainless steel powder that is sintered together to create a strong and durable material. They can withstand high pressures, high temperatures, and harsh chemical environments.

Parameters

Place of origin：Baoji, China

Brand：TOPTITECH

Filtration precision:0.2um-100um

Material：SS 316L, SS304

Working temperature：≤ 600℃

Length: 50-1000mm(More than 1000mm can be welded)

Diameter: 4-500mm

Wall Thickness: 1-5mm

Connector：

1. DOE (Double open)

2. 220

3. 222

4. 226

5. Threaded connector

6. Flange connector

7. Tie rod connector

8. Customized Connector

Features

1. High corrosion resistance.

2. Good permeability.

3. High rigidity.

4. Easy to wash and backwash.

5. High precision.

6. Clean filter material

7. Fast wire net without migration.

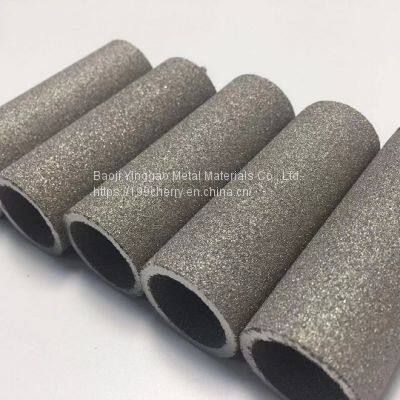

Applications for porous stainless steel tube：

1. Catalyst filtration;

2. Filtration liquids and gases;

4. Filtration in food and beverage;

5. Boiling vaporized bed;

6. Fire retardant;

7. Balance and dampen airflow;

8. Sensor protection;

10. Fly ash treatment;
