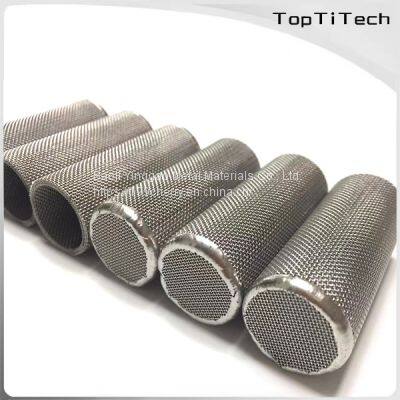

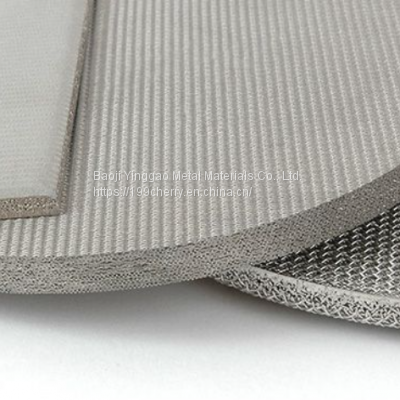

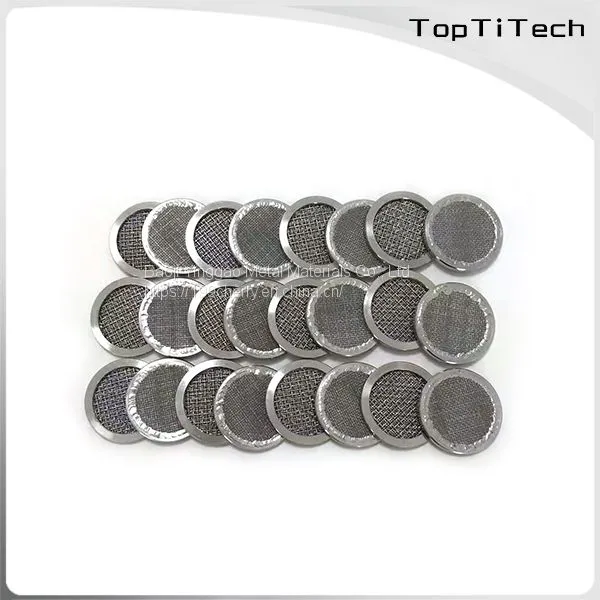

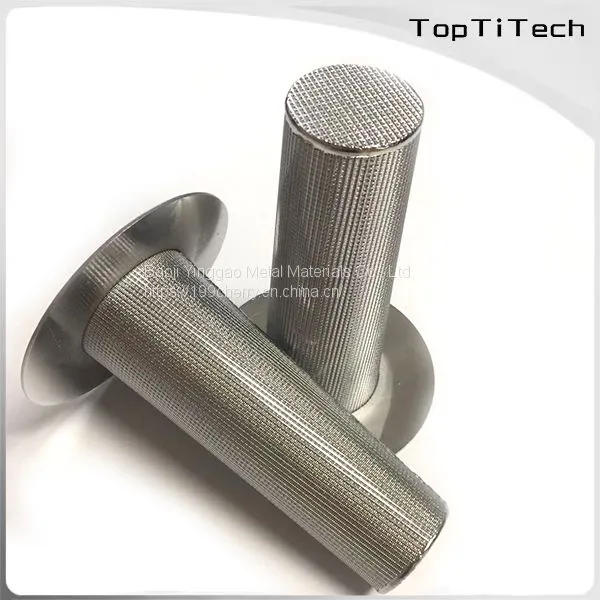

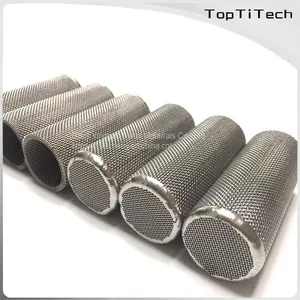

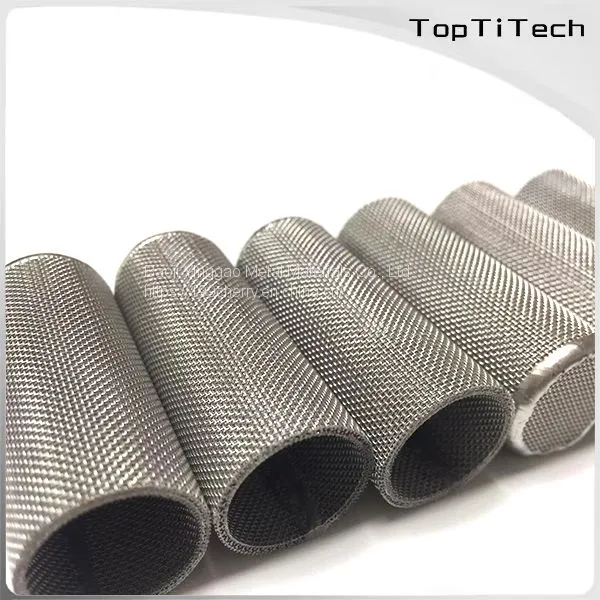

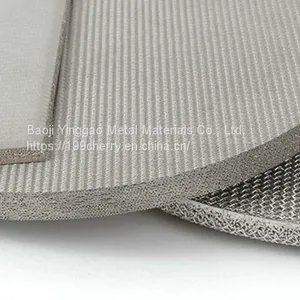

Sintered wire cloth laminate

Sintered wire cloth laminate is a product made by laminating and sintering one or more pieces of wire mesh (the steel wires of the wire mesh are welded together). It is a kind of metal filter product that can well balance strength, pore diameter and pressure. It is usually rated according to the particle size it will retain, either on an absolute micron scale or a nominal micron scale, expressed in microns.

Sintered wire cloth laminates are permanently bonded under precise diffusion bonding (sintering) conditions, resulting in strong monolithic materials used in a variety of engineering applications ranging from industrial filtration to aerospace transpiration cooling.

Product parameters

Brand: TOPTITECH

Origin: China, Baoji

Materials: 304, 304L, 316, 316L (also Inconel 600 and 625, Monel and Hastalloy upon request)

Weaving method: Plain weave, Twill weave, Dutch weave

Uses: Used for filter accessories in chemical industry, medicine, petroleum, communication, scientific research units, etc.

Filtration accuracy (µm): 2, 5, 10, 20, 40, 75, 100, 150, 200

Standard five-layer thickness: 1.7mm

Features

1. Wide operating temperature range

It can work safely and permanently in the temperature range of -270-600°C.

2. Stable material performance

Due to the stable performance of the stainless steel material, no harmful substances will be separated no matter at high temperature or low temperature.

3. Strong corrosion resistance

It has high corrosion resistance and will not be damaged under acid and alkali conditions.

4. It has a lengthy lifespan and can be used repeatedly.

It can be easily cleaned, providing a longer service life.

Applications

Pre-filter

Collects large foreign objects to protect and extend main filter life

Surface filtration

Sintered metal filters are used for internal filtration (depth filtration) and sintered wire mesh for surface filtration.

Silencer

The silencer made of sintered wire mesh has a small pressure loss, and the sound does not propagate in a straight line, but needs to go through a complicated flow path, so the noise reduction effect can be expected.

Explosion-proof filter

The explosion-proof filter using sintered metal mesh, the flame arrester has a fire extinguishing effect through fine holes, transmits internal pressure through the continuous pores of the sintered metal filter, and has excellent strength due to the bonding between metal materials.
