1、Introduction:

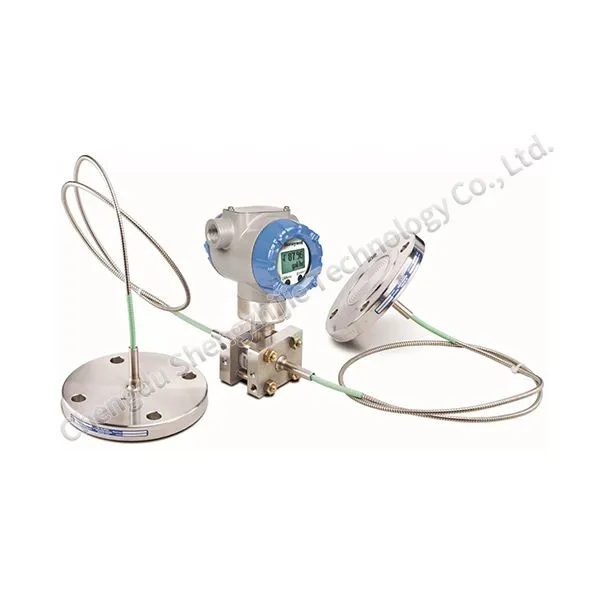

Part of the SmartLine® family of products, the STR700 is a series of pressure transmitters hydraulically matched and optimized with a complete set of remote diaphragm seals. Utilizing the same high performance sensor technology of the ST 800 product line Honeywell has optimized the mechanical and hydraulic designs in order to minimize the typical effects of temperature on remote seal systems. The SmartLine family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.
2、Best in Class Features:
• Accuracies up to 0.075% of span
• Automatic static pressure & temperature compensation
• Rangeability up to 100:1
• Alphanumeric display capabilities
• External zero, span, & configuration capability
• Polarity insensitive electrical connections
• Comprehensive on-board diagnostic capabilities
• Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
• World class overpressure protection
• Full compliance to SIL 2/3 requirements.
• Modular design characteristics
• Available with additional 4-year warranty
3、Typical Diaphragm Seal applications:
• High Process Temperatures
• Viscous or Suspended Solids
• Highly Corrosive Process Materials
• Sanitary Applications
• Applications with Hydrogen Permeation Possibilities
• Level Applications with Maintenance Intensive Wet Legs
• Applications requiring remote Transmitter Mounting
• Tank Applications with Density or Interface Measurements
4、Communications/Output Options:
• Honeywell Digitally Enhanced (DE)
• HART ® (version 7.0)
• FOUNDATION™ Fieldbus
All transmitters are available with the above listed communications protocols.
5、Span & Range Limits:
Model |
URL psid (bar) |
LRL psid (bar) |
Min Span psid (bar) |
STR73D |
100 (7.0) |
-100 (-7.0) |
0.9 (0.062) |
STR74G |
500 (35.0) |
-14.7 (-1.0) |
5 (0.35) |
6、About us:
Chengdu Shengzhijie Technology Co., Ltd. is a high-tech enterprise mainly engaged in the business of internationally renowned advanced process control and automation products. It is committed to the sales, engineering, testing, maintenance, technical training and service of industrial control products and control systems. The products involve the main products related to automation, such as: Distributed control system (DCS)/Programmable logic controller (PLC), Instrument Safety system (SIS), data acquisition system (SCADA), process controller, recorder, pressure and temperature transmitter (sensor), dangerous gas detection and alarm, gas flow measurement, combustion safety control, valve and actuator, detection and analysis instrument, signal adjustment Management module, is the United States Honeywell control products in western China's largest level agents and inventory center, the United States Honeywell DCS, PLC and SIS control system core engineering, at the same time distribution of the United States Acromag, the United States capital company, the United States lion fine instrument company and other world famous brand products.
We look forward to establishing long-term business relationship with you!
