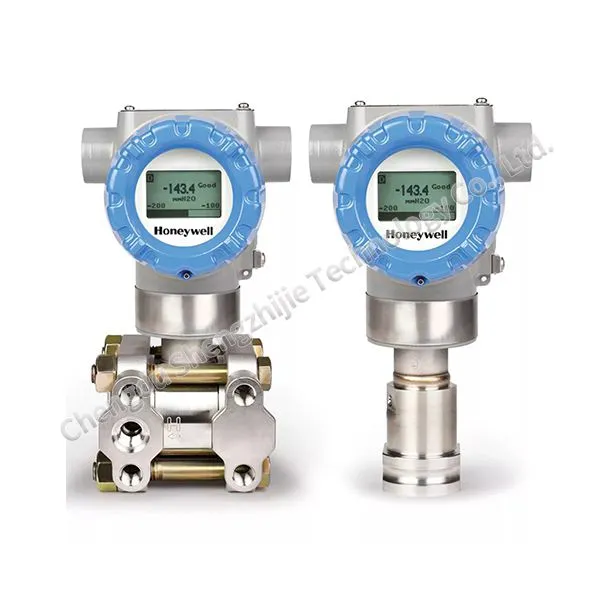

Sales of high precision SmartLine STG800 - Gauge Pressure
- 10000 Piece / Pieces per Month
- Sales of high precision SmartLine STG700 - Gauge Pressure
- Sales of Honeywell Flange Mount Transmitters-SmartLine STF700
- Sales of Honeywell Flange Mount Transmitters-SmartLine STF800
- Sales of Honeywell Absolute Pressure Transmitter-SmartLine STA700
- Sales of Honeywell SmartLine STA800 - Absolute Pressure
- Sales of Honeywell SmartLine STD800 - Differential Pressure
Product Description
1、Introduction:
Part of the SmartLine® family of products, the STG800 and STG80L are high performance gauge pressure transmitter featuring piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.
2、Best in Class Features:
• Accuracies up to 0.0375 % of span standard & 0.025% of span optional.
• Stability up to 0.015% of URL per year for 15 years
• Automatic temperature compensation
• Rangeability up to 100:1
• Response times as fast as 80ms
• Multiple local display capabilities
• External zero, span, & configuration capability
• Polarity insensitive electrical connections
• Comprehensive on-board diagnostic capabilities
• Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.1
• Full compliance to SIL 2/3 requirements.
• Modular design characteristics
• Available with additional 15-year warranty
• Plugged Impulse Line Detection Option
• Dual/Triple Calibration Option (HART & Fieldbus Only)
3、Communications/Output Options:
• 4-20mA
• Honeywell Digitally Enhanced (DE)
• HART ® (version 7.0)
• FOUNDATION™ Fieldbus
All transmitters are available with the above listed communications protocols.
4、Span & Range Limits:
Model | URL psi (bar) | LRL psi (bar) | Min Span psi (bar) |
STG830/STG83L | 50 (3.5) | -14.7 (-1.0) | 0.5 (0.035) |
STG840/STG84L | 500 (35) | -14.7 (-1.0) | 5 (0.35) |
STG870/STG87L | 3000 (210) | -14.7 (-1.0) | 30 (2.1) |
STG88L | 6000 (420) | -14.7 (-1.0) | 60 (4.2) |
STG89L | 10000 (690) | -14.7 (-1.0) | 100 (6.9) |
5、About us
Chengdu Shengzhijie Technology Co., Ltd. is a high-tech enterprise mainly engaged in the business of internationally renowned advanced process control and automation products. It is committed to the sales, engineering, testing, maintenance, technical training and service of industrial control products and control systems. The products involve the main products related to automation, such as: Distributed control system (DCS)/Programmable logic controller (PLC), Instrument Safety system (SIS), data acquisition system (SCADA), process controller, recorder, pressure and temperature transmitter (sensor), dangerous gas detection and alarm, gas flow measurement, combustion safety control, valve and actuator, detection and analysis instrument, signal adjustment Management module, is the United States Honeywell control products in western China's largest level agents and inventory center, the United States Honeywell DCS, PLC and SIS control system core engineering, at the same time distribution of the United States Acromag, the United States capital company, the United States lion fine instrument company and other world famous brand products.
We look forward to establishing long-term business relationship with you!
